X-Pro 35000 BTU 4 Zone 22.5 SEER2 Concealed Ducted Mini Split AC, White

Experience discreet and efficient climate control with this 4-zone 35000 BTU concealed ducted mini split system, featuring inverter technology for energy savings, R454B refrigerant for eco-friendly operation, and smart controls for convenient management across homes and light commercial spaces.

Overview:

• Provides powerful heating and cooling across 4 independent zones for personalized comfort.
• Ideal for homes, offices, restaurants, and other light commercial applications.
• Features a ducted design for a neat, discreet installation that blends seamlessly into any space.
• Note: Professional installation is required for safe and proper operation.

Highlights:

• Adjust temperature independently across 4 zones for optimal comfort in different areas.
• Inverter technology maintains steadier temperatures with smarter energy use, reducing cycling.
• R454B refrigerant supports more responsible, forward-looking environmental operation.
• Built-in versatility with 7 modes and 8 fan speeds for all-season use.
• Enjoy peaceful sleep without distractions with sleep mode and screen off function.
• Effortless convenience with smart control options and wifi connectivity, compatible with Alexa and Google Assistant.
• Chassis electrical heating ensures reliable performance in colder conditions, down to -25℃.
• 4D auto swing for balanced and even air distribution throughout the room.
• Self-clean function makes maintenance a breeze by keeping air paths fresher.
• 24-hour timer for set-and-forget scheduling of heating and cooling cycles.
• Child lock helps prevent unwanted changes to settings, ensuring security.
• Quiet operation with indoor noise levels as low as 28 dB for a peaceful environment.

Features:

• Multi-zone climate control providing powerful and balanced heating and cooling across 4 zones.
• Advanced inverter technology maintains steady temperatures with less energy waste.
• 22.5 SEER2 rating for high energy efficiency in cooling and heating modes.
• R454B refrigerant for eco-friendly and efficient operation.
• Chassis electrical heating ensures reliable operation in tough weather with -25℃ low ambient heating and 55℃ high ambient cooling.
• Wifi enabled for remote control via smart app, included remote, wall thermostat, or voice commands.
• Compatible with Alexa and Google Assistant for voice control convenience.
• 24-hour timer allows for scheduled operation of the system.
• Child lock keeps settings secure from unauthorized changes.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds for precise comfort adjustment in any mode.
• 4D auto swing improves room coverage by distributing air evenly.
• Self-clean function helps maintain air paths and system hygiene over time.
• Sleep mode and screen off function minimize distractions for restful environments.
• Quiet operation with indoor noise levels as low as 28 dB.

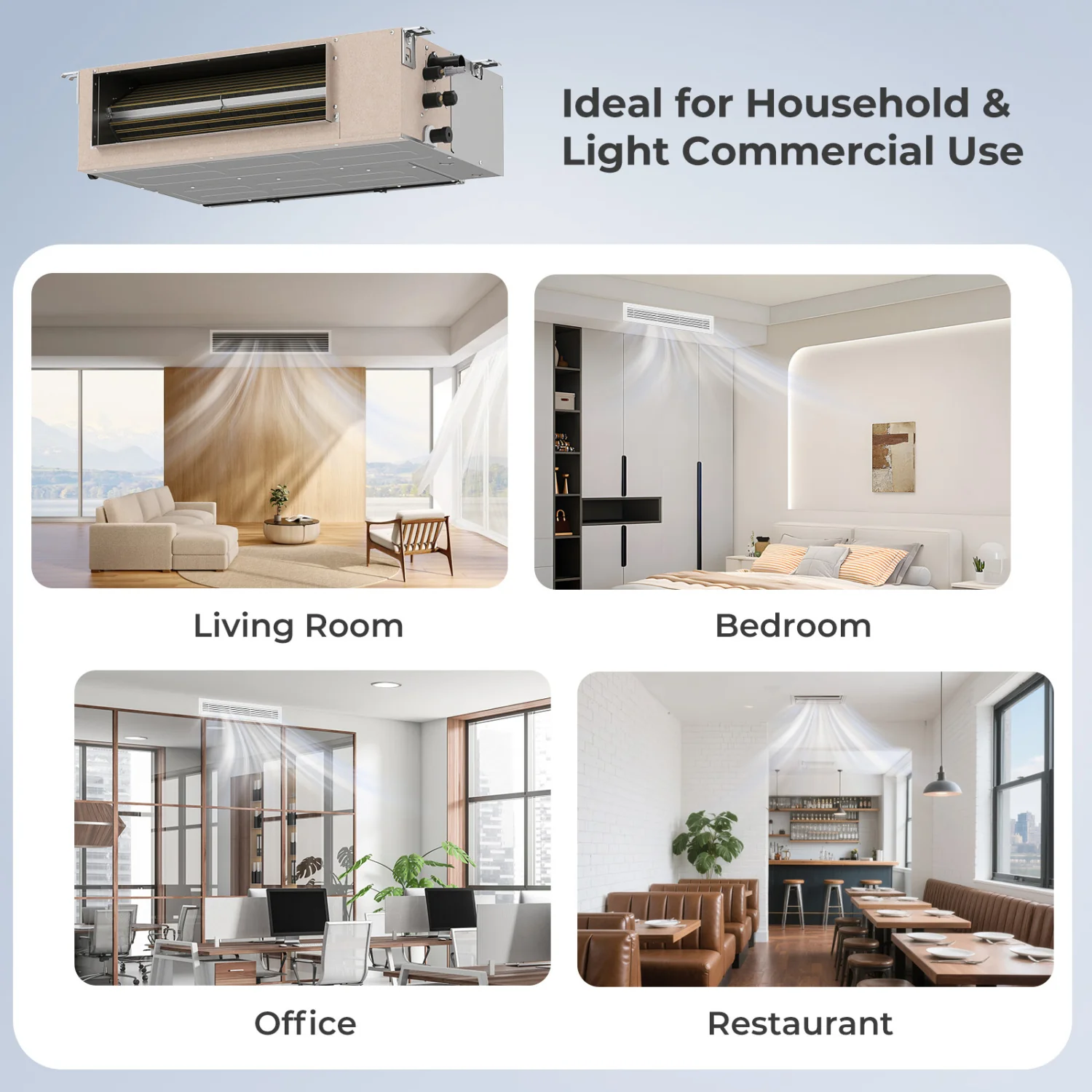

• Ideal for household and light commercial use, including living rooms, bedrooms, offices, and restaurants.
• Note: Professional installation is required for safe and effective setup.

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 27.56 inches long x 17.8 inches wide x 7.87 inches high (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (12K): 27.56 inches long x 17.8 inches wide x 7.87 inches high (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (18K): 36.22 inches long x 17.8 inches wide x 7.87 inches high (92 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (24K): 43.31 inches long x 17.8 inches wide x 7.87 inches high (110 cm x 45.2 cm x 20 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches long x 14.96 inches wide x 27.52 inches high (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches long x 16.57 inches wide x 31.61 inches high (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches long x 18.43 inches wide x 33.58 inches high (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 33.1 pounds (15 kg).
• Net Weight of Indoor Unit (12K): 33.1 pounds (15 kg).
• Net Weight of Indoor Unit (18K): 39.7 pounds (18 kg).
• Net Weight of Indoor Unit (24K): 50.7 pounds (23 kg).
• Net Weight of Outdoor Unit (18K): 92.6 pounds (42 kg).
• Net Weight of Outdoor Unit (27K): 119 pounds (54 kg).
• Net Weight of Outdoor Unit (35K): 145.5 pounds (66 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8 inch (1.59 cm).

Specifications:

• Color: White for a clean, modern appearance.
• Material: Constructed from cold-rolled steel sheet, copper, and aluminum for durability.
• Multi Zone Combination: Supports 4 zones for flexible climate control.
• Voltage: 208-230V for compatibility with standard electrical systems.
• Frequency: 60Hz for operation in regions with this power standard.
• Temperature Setting Range: 16℃ to 31℃ (approximately 61°F to 88°F) for precise comfort control.
• Refrigerant: R454B for efficient and environmentally responsible cooling and heating.
• Indoor Unit Noise Level: As low as 28 dB for quiet operation in residential and commercial settings.
• Max Remote Control Distance: 39.2 feet (approximately 12 meters) for convenient remote use.
• Coverage Area (9K): 450 square feet (approximately 42 square meters).
• Coverage Area (12K): 750 square feet (approximately 70 square meters).
• Coverage Area (18K): 1250 square feet (approximately 116 square meters).
• Coverage Area (24K): 1500 square feet (approximately 139 square meters).
• Dehumidification Capacity (9K): 55.8 pints per day for moisture control.
• Dehumidification Capacity (12K): 81.2 pints per day for effective humidity management.
• Dehumidification Capacity (18K): 111.6 pints per day in larger spaces.
• Dehumidification Capacity (24K): 131.9 pints per day for high-capacity dehumidification.
• Maximum Air Flow Volume (9K): 335 CFM (570 m³/h) for efficient air circulation.
• Maximum Air Flow Volume (12K): 360 CFM (610 m³/h) for enhanced airflow.
• Maximum Air Flow Volume (18K): 500 CFM (850 m³/h) for powerful distribution.
• Maximum Air Flow Volume (24K): 741 CFM (1260 m³/h) for maximum ventilation.
• SEER2 Rating (18K): 24 for high energy efficiency in cooling.
• SEER2 Rating (27K): 24 for consistent efficiency across models.
• SEER2 Rating (35K): 22.5 for reliable performance in larger systems.
• HSPF2 Rating (18K): 10.5 for efficient heating operation.
• HSPF2 Rating (27K): 10.5 for balanced heating efficiency.
• HSPF2 Rating (35K): 10 for effective heating in high-capacity units.

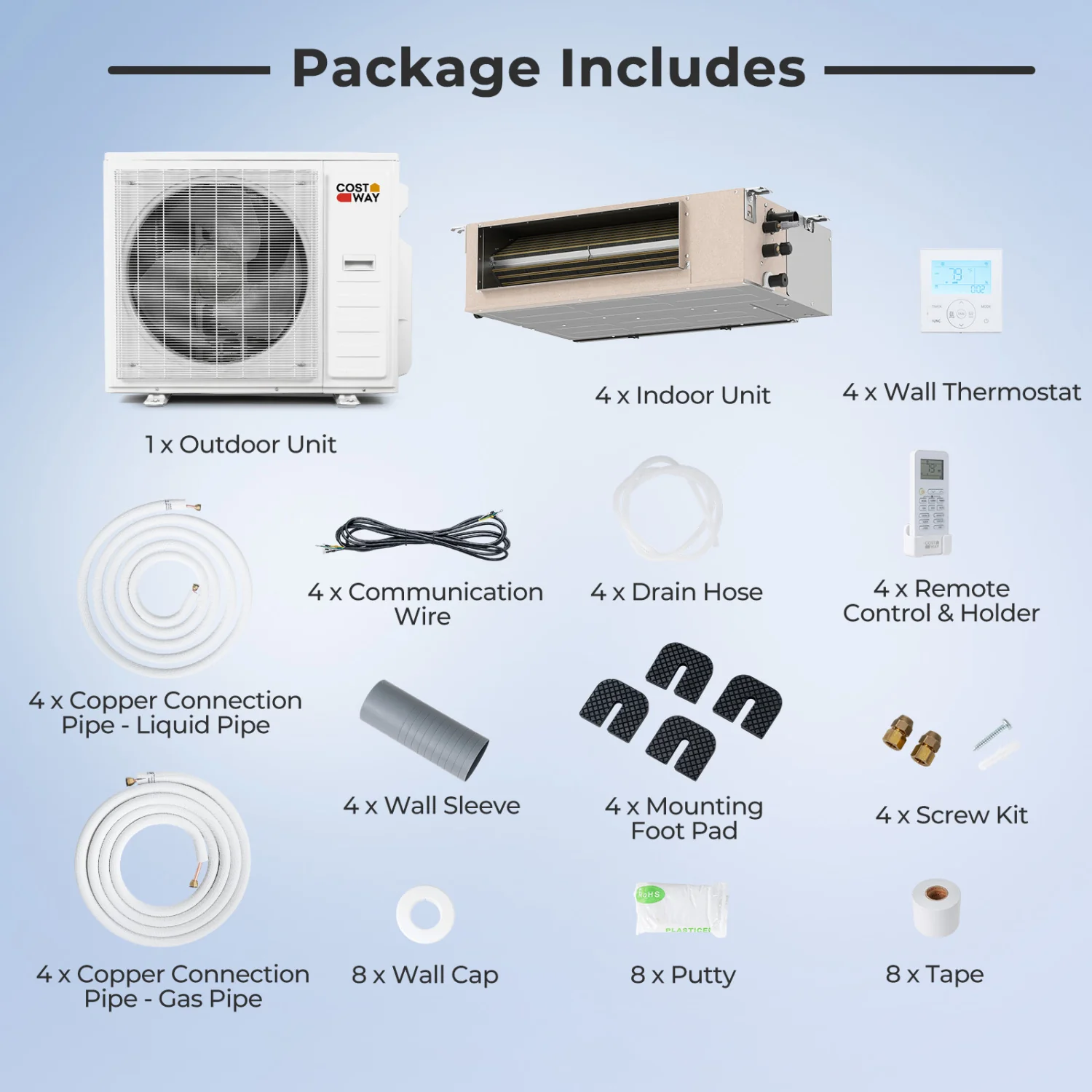

Package Includes:

• 1 x Outdoor Unit for the central component of the system.
• 4 x Indoor Unit for multi-zone climate control in different areas.
• 4 x Copper Connection Pipe - Gas Pipe for refrigerant flow.
• 4 x Copper Connection Pipe - Liquid Pipe for efficient cooling and heating.
• 4 x Communication Wire for connectivity between units.
• 4 x Drain Hose for condensation removal.
• 4 x Remote Control & Holder for easy operation and storage.
• 4 x Wall Sleeve for secure installation of indoor units.
• 8 x Wall Cap for finishing and protection.
• 8 x Tape for sealing and insulation.
• 8 x Putty for additional sealing needs.
• 4 x Screw Kit for mounting components securely.
• 4 x Mounting Foot Pad for stable placement of outdoor units.
• 9 x User Guide for comprehensive setup and operation instructions.

Package Quantity: 1
