X-Pro 27000 BTU 3 Zone 24 SEER2 Ceiling Cassette Mini Split, White

This 3-zone ceiling cassette mini split AC system delivers powerful 27000 BTU cooling and heating with independent temperature control for three areas. Featuring inverter technology and eco-friendly R454B refrigerant, it operates at 24 SEER2 for energy savings. Enjoy quiet 32 dB operation, 360° airflow, and smart control via app, voice, remote, or thermostat. Ideal for homes, offices, and commercial spaces, it includes a self-clean function and child lock. Professional installation is required.

Overview:

• Flexible comfort with independent temperature control in 3 zones.
• Covers up to 1250 sq. ft. per zone; ideal for homes, offices, and light commercial spaces.
• Ceiling cassette design saves wall space and provides 360° airflow.
• Note: Professional installation is required.
• Chassis electrical heating prevents freezing in colder weather.

Highlights:

• Independent temperature control in 3 areas.
• Inverter technology for energy efficiency.
• R454B refrigerant with lower global warming potential.
• Year-round comfort with 7 modes and 8 fan speeds.
• Smart control via app, voice, remote, or wall thermostat.
• Chassis electrical heating prevents freezing.
• Versatile for homes, offices, or commercial spaces.
• Ceiling cassette creates a clean, built-in look.
• 360° airflow spreads air evenly.
• 24-hour timer for scheduled temperature changes.
• Self-clean function supports fresher operation.
• Whisper quiet operation as low as 32 dB.
• Child lock adds peace of mind for families.

Features:

• 27000 BTU cooling and heating capacity.
• 3-zone multi-zone combination.
• Individual temperature adjustment across 3 zones.
• Ceiling-mounted design saves wall space.
• Engineered to work in harsh conditions: cools at 55℃ and heats at -25℃.
• Built-in chassis electrical heating system.
• Rated at 24 SEER2 (18K/27K) and 22.5 SEER2 (35K).
• Uses R454B refrigerant.
• Inverter technology for stable temperatures and energy savings.
• Wi-fi enabled for app control.
• Voice control compatible.
• Remote control up to 39.2 ft.
• Wall thermostat support.
• 7 modes: auto, cool, heat, dry, fan, Eco, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer.
• 360° 8-way airflow.
• Self-clean function.
• Quiet operation as low as 32 dB.
• Child lock.
• Coverage area: 9K up to 450 sq. ft., 12K up to 750 sq. ft., 18K up to 1250 sq. ft.
• Dehumidification capacity: 9K 55.8 pints/day, 12K 81.2 pints/day, 18K 111.6 pints/day.
• Maximum airflow: 9K 194 CFM, 12K 212 CFM, 18K 260 CFM.
• HSPF2: 18K/27K 10.5, 35K 10.
• Temperature setting range: 16℃~31℃.
• Voltage: 208-230V, 60Hz.
• Material: Cold-rolled steel sheet, copper, aluminum.

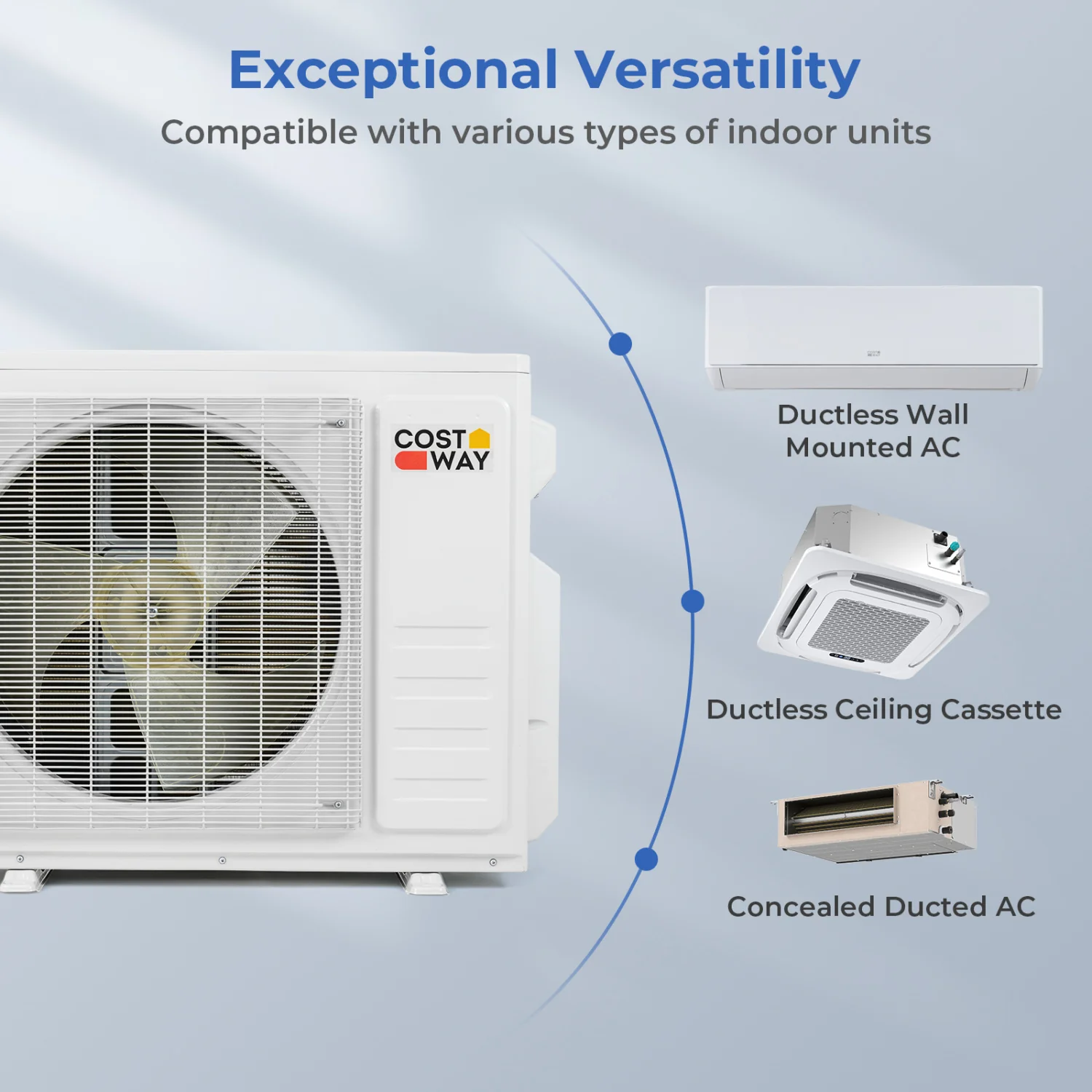

• Outdoor unit compatible with ductless wall mounted, ceiling cassette, and concealed ducted indoor units.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit 9K: 25.59 x 25.59 x 11.85 in (65.0 x 65.0 x 30.1 cm)
• Indoor Unit 12K: 25.59 x 25.59 x 11.85 in (65.0 x 65.0 x 30.1 cm)
• Indoor Unit 18K: 25.59 x 25.59 x 11.85 in (65.0 x 65.0 x 30.1 cm)
• Outdoor Unit 18K: 36.5 x 14.96 x 27.52 in (92.7 x 38.0 x 69.9 cm)
• Outdoor Unit 27K: 38.5 x 16.57 x 31.61 in (97.8 x 42.1 x 80.3 cm)
• Outdoor Unit 35K: 42.28 x 18.43 x 33.58 in (107.4 x 46.8 x 85.3 cm)
• Net Weight Indoor 9K: 31.9 lbs (14.5 kg)
• Net Weight Indoor 12K: 31.9 lbs (14.5 kg)
• Net Weight Indoor 18K: 31.9 lbs (14.5 kg)
• Net Weight Outdoor 18K: 92.6 lbs (42.0 kg)
• Net Weight Outdoor 27K: 119 lbs (54.0 kg)
• Net Weight Outdoor 35K: 145.5 lbs (66.0 kg)

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Voltage: 208-230V, 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 32 dB.
• Max Remote Control Distance: 39.2 ft.
• Coverage Area: 9K 450 sq. ft., 12K 750 sq. ft., 18K 1250 sq. ft.
• Dehumidification Capacity: 9K 55.8 pints/day, 12K 81.2 pints/day, 18K 111.6 pints/day.
• Maximum Air Flow Volume: 9K 194 CFM, 12K 212 CFM, 18K 260 CFM.
• SEER2: 18K/27K 24, 35K 22.5.
• HSPF2: 18K/27K 10.5, 35K 10.
• Diameter of Liquid Pipe: 1/4 in.
• Diameter of Gas Pipe: 9K/12K 3/8 in, 18K 1/2 in.
• Multi Zone Combination: 3.

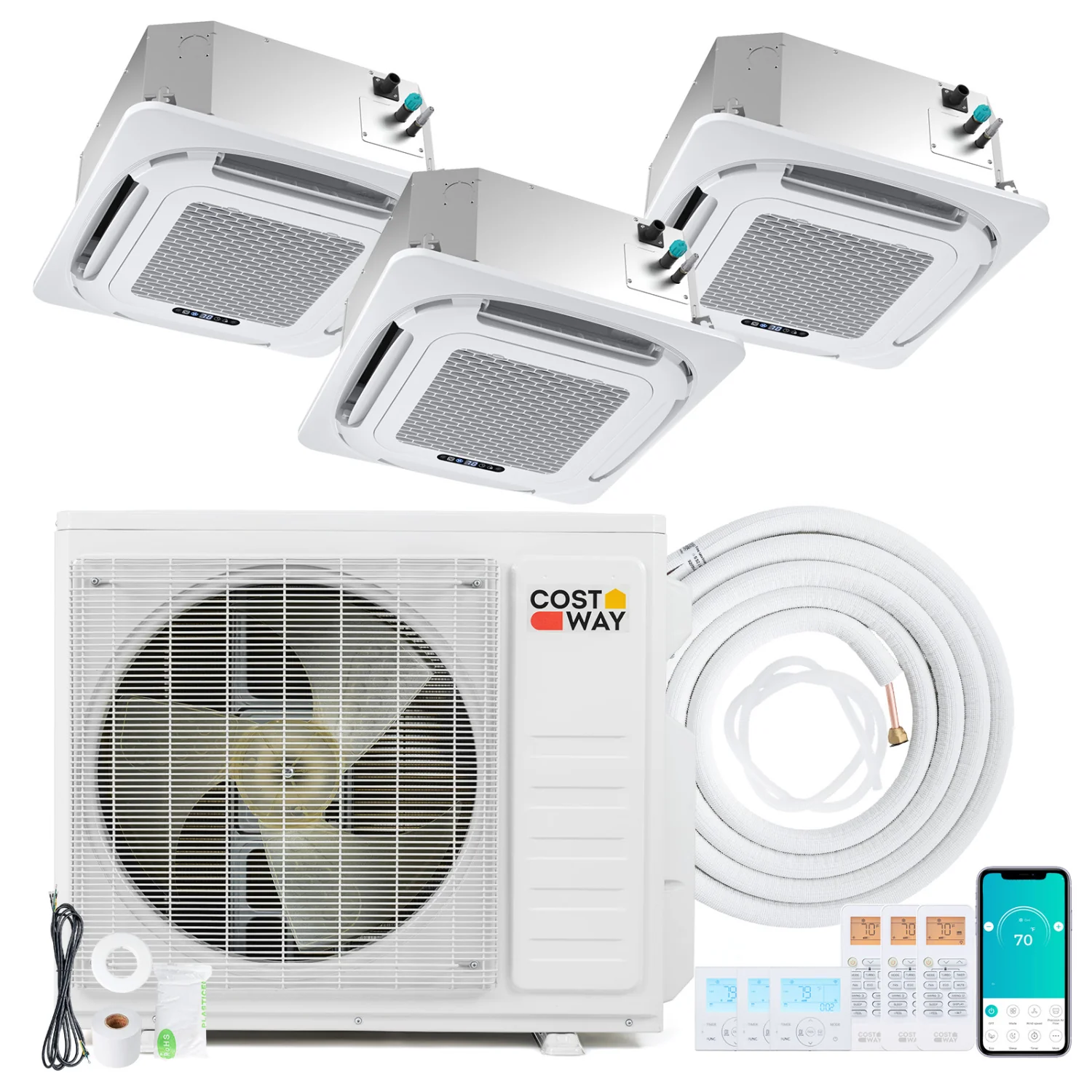

Package Includes:

• 1 x Outdoor Unit
• 3 x Indoor Unit
• 3 x Copper Connection Pipe - Gas Pipe
• 3 x Copper Connection Pipe - Liquid Pipe
• 3 x Communication Wire
• 3 x Drain Hose
• 3 x Remote Control & Holder
• 3 x Wall Thermostat
• 3 x Wall Sleeve
• 6 x Wall Cap
• 6 x Tape
• 6 x Putty
• 3 x Screw Kit
• 4 x Mounting Foot Pad
• 7 x User Guide

Package Quantity: 1
