X-Pro 27000 BTU 2-Zone 24 SEER2 Concealed Ducted Mini Split AC, 9K+18K, White, White

This 27000 BTU concealed ducted mini split system provides discreet multi-zone comfort for homes and offices. With dual-zone independent temperature control and inverter technology, it delivers efficient heating and cooling with steady temperatures. R454B refrigerant ensures eco-friendly operation, while smart controls including WiFi and voice commands offer convenience. The ducted design keeps spaces neat, and 7 modes with 8 fan speeds provide versatile comfort. Professional installation required; note that batteries are not required for remote or thermostat.

Overview:

• Discreet ducted mini split system for multi-zone heating and cooling
• Ideal for living rooms, bedrooms, offices, restaurants, and light commercial spaces

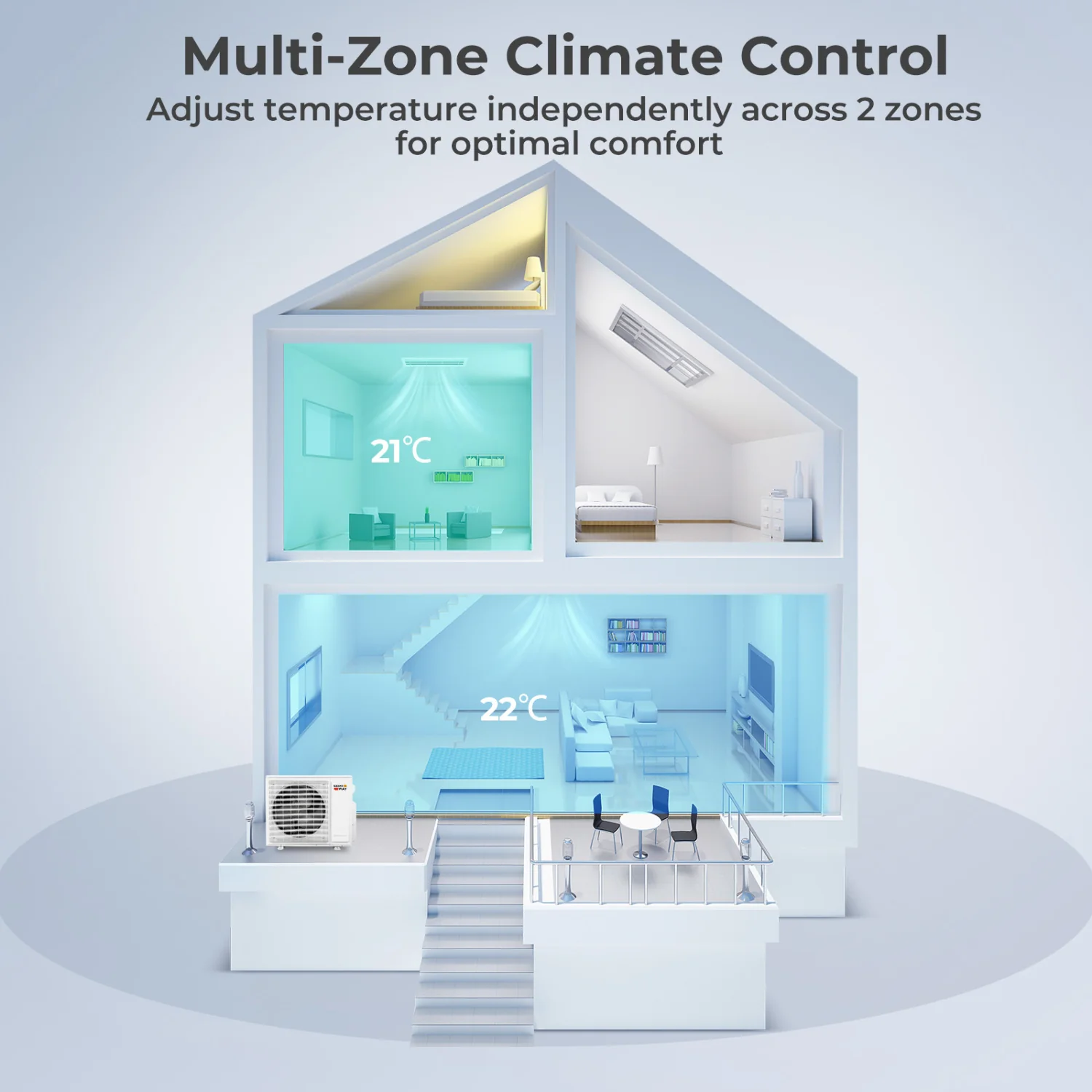

• Adjust temperature independently across 2 zones for personalized comfort
• Note: Professional installation is required

Highlights:

• Adjust temperature independently across 2 zones for optimal comfort
• Inverter technology maintains steadier temperatures with smarter energy use
• R454B refrigerant supports more responsible, forward-looking operation
• Built-in versatility with 7 modes and 8 fan speeds
• Enjoy peaceful sleep with sleep mode and screen off function
• Effortless convenience with smart control options and WiFi connectivity
• Chassis electrical heating ensures reliable performance in cold conditions
• Ideal for homes, offices, and light commercial spaces
• 4D auto swing for balanced and even air distribution
• Ducted design keeps your space neat and discreet
• Self-clean function makes maintenance easy
• 24-hour timer for set-and-forget scheduling
• Child lock helps prevent unwanted changes

Features:

• 27000 BTU cooling and heating capacity
• 2-zone multi-zone climate control
• Outdoor unit features chassis electrical heating for reliable operation in cold weather
• Operates in low ambient heating down to -25°C and high ambient cooling up to 55°C
• Advanced inverter technology for steady temperatures and less energy waste
• 24 SEER2 rating (18K, 27K models) for energy efficiency
• R454B refrigerant for eco-friendly operation
• Multiple control options: remote, wall thermostat, smart app, voice commands
• Compatible with Alexa and Google Assistant
• 24-hour timer for scheduled operation
• Child lock for secure settings
• 7 modes: auto, cool, heat, dry, fan, ECO, sleep
• 8 fan speeds for precise comfort
• 4D auto swing for improved room coverage
• Self-clean function helps keep air paths fresh
• Low sound levels as low as 28 dB for quiet operation
• Coverage area varies by capacity (9K: 450 sq ft, 12K: 750 sq ft, 18K: 1250 sq ft, 24K: 1500 sq ft)
• Dehumidification capacity varies by capacity (9K: 55.8 pints/day, 12K: 81.2 pints/day, 18K: 111.6 pints/day, 24K: 131.9 pints/day)
• Maximum air flow volume varies by capacity (9K: 335 CFM, 12K: 360 CFM, 18K: 500 CFM, 24K: 741 CFM)
• Voltage: 208-230V, Frequency: 60Hz
• Temperature setting range: 16°C to 31°C
• Max remote control distance: 39.2 ft
• Note: Professional installation is required
• Batteries are not required for remote or thermostat

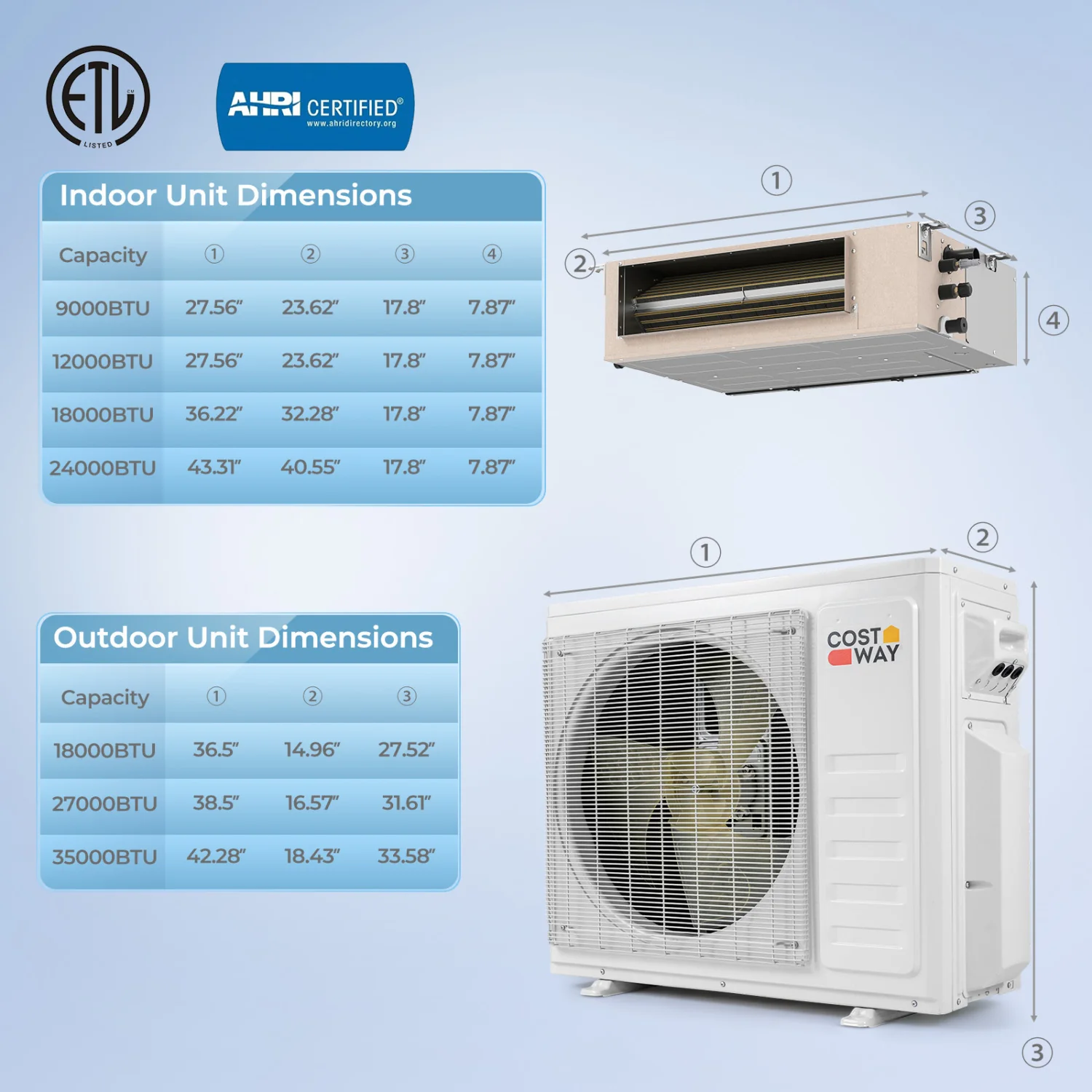

Weight & Dimensions:

• Indoor unit 9K: 27.56" x 17.8" x 7.87" (70.0 cm x 45.2 cm x 20.0 cm), weight 33.1 lbs (15.0 kg)
• Indoor unit 12K: 27.56" x 17.8" x 7.87" (70.0 cm x 45.2 cm x 20.0 cm), weight 33.1 lbs (15.0 kg)
• Indoor unit 18K: 36.22" x 17.8" x 7.87" (92.0 cm x 45.2 cm x 20.0 cm), weight 39.7 lbs (18.0 kg)
• Indoor unit 24K: 43.31" x 17.8" x 7.87" (110.0 cm x 45.2 cm x 20.0 cm), weight 50.7 lbs (23.0 kg)
• Outdoor unit 18K: 36.5" x 14.96" x 27.52" (92.7 cm x 38.0 cm x 69.9 cm), weight 92.6 lbs (42.0 kg)
• Outdoor unit 27K: 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm), weight 119 lbs (54.0 kg)
• Outdoor unit 35K: 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm), weight 145.5 lbs (66.0 kg)
• Diameter of liquid pipe: 1/4" (0.64 cm)
• Diameter of gas pipe 9K/12K: 3/8" (0.95 cm)
• Diameter of gas pipe 18K: 1/2" (1.27 cm)
• Diameter of gas pipe 24K: 5/8" (1.59 cm)

Specifications:

• Color: White
• Material: Cold-rolled Steel Sheet, Copper, Aluminum
• Multi Zone Combination: 2
• Voltage: 208-230V
• Frequency: 60Hz
• Temperature Setting Range: 16°C to 31°C
• Refrigerant: R454B
• Indoor Unit Noise Level: 28 dB
• Max Remote Control Distance: 39.2 ft
• Coverage Area: varies by capacity (9K: 450 sq ft, 12K: 750 sq ft, 18K: 1250 sq ft, 24K: 1500 sq ft)
• Dehumidification Capacity: varies by capacity (9K: 55.8 pints/day, 12K: 81.2 pints/day, 18K: 111.6 pints/day, 24K: 131.9 pints/day)
• Maximum Air Flow Volume: varies by capacity (9K: 335 CFM, 12K: 360 CFM, 18K: 500 CFM, 24K: 741 CFM)
• SEER2 Rating: 18K/27K: 24, 35K: 22.5
• HSPF2 Rating: 18K/27K: 10.5, 35K: 10

Package Includes:

• 1 x Outdoor Unit
• 2 x Indoor Unit
• 2 x Copper Connection Pipe - Gas Pipe
• 2 x Copper Connection Pipe - Liquid Pipe
• 2 x Communication Wire
• 2 x Drain Hose
• 2 x Remote Control & Holder
• 2 x Wall Thermostat
• 2 x Wall Sleeve
• 4 x Tape
• 4 x Putty
• 2 x Screw Kit
• 4 x Wall Cap
• 4 x Mounting Foot Pad
• 5 x User Guide

Package Quantity: 1
