Mini Split AC 27000 BTU 2 Zone, 9K+12K, White

Enjoy personalized comfort in two zones with this 27000 BTU concealed ducted mini split system. Featuring inverter technology and R454B refrigerant, it delivers efficient heating and cooling with smart control options for homes and light commercial spaces.

Overview:

• Powerful 2-zone heating and cooling with independent temperature control for optimal comfort.
• Ideal for living rooms, bedrooms, offices, and restaurants.
• Ducted design keeps the interior discreet and neat.
• Note: Professional installation is required.

Highlights:

• Adjust temperature independently across 2 zones for optimal comfort.
• Inverter technology maintains steadier temperatures with smarter energy use.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility with 7 modes and 8 fan speeds.
• Enjoy peaceful sleep with sleep mode and screen off function.
• Effortless convenience with smart control options and wifi connectivity.
• Chassis electrical heating ensures reliable performance in colder conditions.
• Ideal for homes, offices, and light commercial spaces.
• 4D auto swing for balanced and even air distribution.
• Ducted design keeps your space neat and discreet.
• Self-clean function makes maintenance a breeze.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.

Features:

• Multi-zone climate control with heating and cooling across 2 zones.
• Outdoor unit with chassis electrical heating for reliable operation in tough weather with -25℃ low ambient heating and 55℃ high ambient cooling.
• Advanced inverter technology maintains steady temperatures with less energy waste.
• 24 SEER2 rating and R454B refrigerant for efficient year-round use.
• Wifi enabled with smart app and voice commands (compatible with Alexa and Google Assistant).
• 24H timer for scheduled operation.
• Child lock keeps settings secure.
• 7 modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds for precise comfort.
• 4D auto swing improves room coverage.
• Self-clean function helps keep air paths fresher over time.
• Low sound levels as low as 28 dB.
• Temperature setting range: 16℃~31℃.
• Max remote control distance: 39.2 ft.
• Coverage areas: 9K: 450 Sq.Ft; 12K: 750 Sq.Ft; 18K: 1250 Sq.Ft; 24K: 1500 Sq.Ft.
• Dehumidification capacities: 9K: 55.8 Pints/Day; 12K: 81.2 Pints/Day; 18K: 111.6 Pints/Day; 24K: 131.9 Pints/Day.
• Maximum air flow volumes: 9K: 335 CFM/570 m³/h; 12K: 360 CFM/610 m³/h; 18K: 500 CFM/850 m³/h; 24K: 741 CFM/1260 m³/h.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit 9K: 27.56 x 17.8 x 7.87 in (70.0 x 45.2 x 20.0 cm); Weight: 33.1 lbs (15.0 kg)
• Indoor Unit 12K: 27.56 x 17.8 x 7.87 in (70.0 x 45.2 x 20.0 cm); Weight: 33.1 lbs (15.0 kg)
• Indoor Unit 18K: 36.22 x 17.8 x 7.87 in (92.0 x 45.2 x 20.0 cm); Weight: 39.7 lbs (18.0 kg)
• Indoor Unit 24K: 43.31 x 17.8 x 7.87 in (110.0 x 45.2 x 20.0 cm); Weight: 50.7 lbs (23.0 kg)
• Outdoor Unit 18K: 36.5 x 14.96 x 27.52 in (92.7 x 38.0 x 69.9 cm); Weight: 92.6 lbs (42.0 kg)
• Outdoor Unit 27K: 38.5 x 16.57 x 31.61 in (97.8 x 42.1 x 80.3 cm); Weight: 119 lbs (54.0 kg)
• Outdoor Unit 35K: 42.28 x 18.43 x 33.58 in (107.4 x 46.8 x 85.3 cm); Weight: 145.5 lbs (66.0 kg)
• Liquid pipe diameter: 1/4 in (0.64 cm)
• Gas pipe diameters: 9K/12K: 3/8 in (0.95 cm); 18K: 1/2 in (1.27 cm); 24K: 5/8 in (1.59 cm)

Specifications:

• Colour: White
• Material: Cold-rolled Steel Sheet, Copper, Aluminum
• Voltage: 208-230V
• Frequency: 60Hz
• Refrigerant: R454B
• Indoor unit noise level: 28 dB
• SEER2: 18K/27K: 24; 35K: 22.5
• HSPF2: 18K/27K: 10.5; 35K: 10.0
• Multi-zone combination: 2
• Temperature setting range: 16℃~31℃
• Max remote control distance: 39.2 ft (12 m)

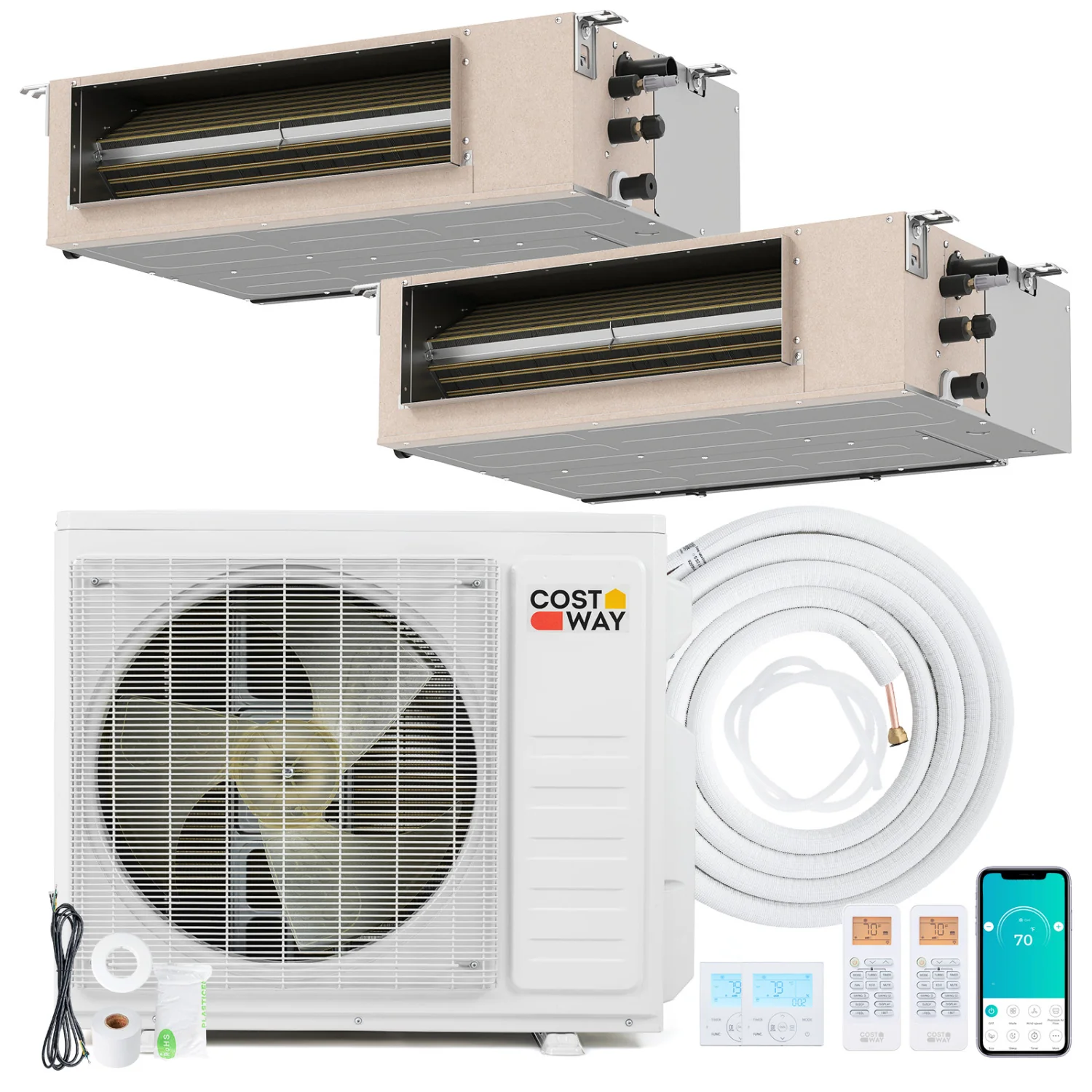

Package Includes:

• 1 x Outdoor Unit
• 2 x Indoor Unit
• 2 x Copper Connection Pipe – Gas Pipe
• 2 x Copper Connection Pipe – Liquid Pipe
• 2 x Communication Wire
• 2 x Drain Hose
• 2 x Remote Control & Holder
• 2 x Wall Thermostat
• 2 x Wall Sleeve
• 4 x Tape
• 4 x Putty
• 2 x Screw Kit
• 4 x Wall Cap
• 4 x Mounting Foot Pad
• 5 x User Guide

Package Quantity: 1 Set
