Concealed Ducted Mini Split AC, 35000 BTU, 2 Zone, 22.5 SEER2, White

Experience discreet, multi-zone comfort with this 35000 BTU concealed ducted mini split system. Featuring advanced inverter technology and R454B refrigerant, it delivers efficient heating and cooling for homes, offices, and light commercial spaces with quiet operation and smart control options.

Overview:

• Provides powerful and balanced heating and cooling across 2 independent zones for optimal comfort.
• Designed for versatile use in various settings like living rooms, bedrooms, offices, and restaurants.
• Features a ducted design that keeps the installation neat and discreet, blending seamlessly into any space.
• Note: Professional installation is required for safe and proper setup.

Highlights:

• Adjust temperature independently across 2 zones for personalized comfort.
• Inverter technology maintains steadier temperatures with smarter energy use for efficiency.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility with 7 modes and 8 fan speeds for all-season use.
• Enjoy peaceful sleep without distractions with sleep mode and screen off function.
• Effortless convenience with smart control options and wifi connectivity.
• Chassis electrical heating ensures reliable performance in colder conditions.
• Ideal for homes, offices, and light commercial spaces.
• 4D auto swing for balanced and even air distribution.
• Ducted design keeps your space neat and discreet.
• Self-clean function makes maintenance a breeze.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.

Features:

• Multi-zone climate control providing powerful and balanced heating and cooling across 2 zones.
• Outdoor unit features chassis electrical heating for reliable operation in tough weather with -25℃ low ambient heating and 55℃ high ambient cooling.
• Advanced inverter technology maintains steady temperatures with less energy waste, reducing cycling and improving comfort.
• 22.5 SEER2 rating and R454B refrigerant for efficient year-round use.
• Wifi enabled for control via included remote, wall thermostat, smart app, or voice commands with compatibility for Alexa and Google Assistant.
• 24-hour timer allows for scheduled operation.
• Child lock keeps settings secure.
• 7 modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds for precise comfort adjustment.
• 4D auto swing improves room coverage for even air distribution.
• Self-clean function helps keep air paths fresher over time.
• Runs with low sound levels as low as 28 dB for a peaceful environment.
• Ideal for household and light commercial use, including living room, bedroom, office, restaurant, and more.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit Dimensions for 9K: 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions for 12K: 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions for 18K: 36.22" x 17.8" x 7.87" (92 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions for 24K: 43.31" x 17.8" x 7.87" (110 cm x 45.2 cm x 20 cm).
• Outdoor Unit Dimensions for 18K: 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions for 27K: 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions for 35K: 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe for 9K: 3/8" (0.95 cm).
• Diameter of Gas Pipe for 12K: 3/8" (0.95 cm).
• Diameter of Gas Pipe for 18K: 1/2" (1.27 cm).
• Diameter of Gas Pipe for 24K: 5/8" (1.59 cm).
• Net Weight of 9K Indoor Unit: 33.1 lbs (15 kg).
• Net Weight of 12K Indoor Unit: 33.1 lbs (15 kg).
• Net Weight of 18K Indoor Unit: 39.7 lbs (18 kg).
• Net Weight of 24K Indoor Unit: 50.7 lbs (23 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg).

Specifications:

• Colour: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 2.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.2 ft (11.9 m).
• Coverage Area for 9K: 450 Sq.Ft (41.8 m²).
• Coverage Area for 12K: 750 Sq.Ft (69.7 m²).
• Coverage Area for 18K: 1250 Sq.Ft (116.1 m²).
• Coverage Area for 24K: 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity for 9K: 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity for 12K: 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity for 18K: 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity for 24K: 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume for 9K: 335 CFM/570 m³/h.
• Maximum Air Flow Volume for 12K: 360 CFM/610 m³/h.
• Maximum Air Flow Volume for 18K: 500 CFM/850 m³/h.
• Maximum Air Flow Volume for 24K: 741 CFM/1260 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

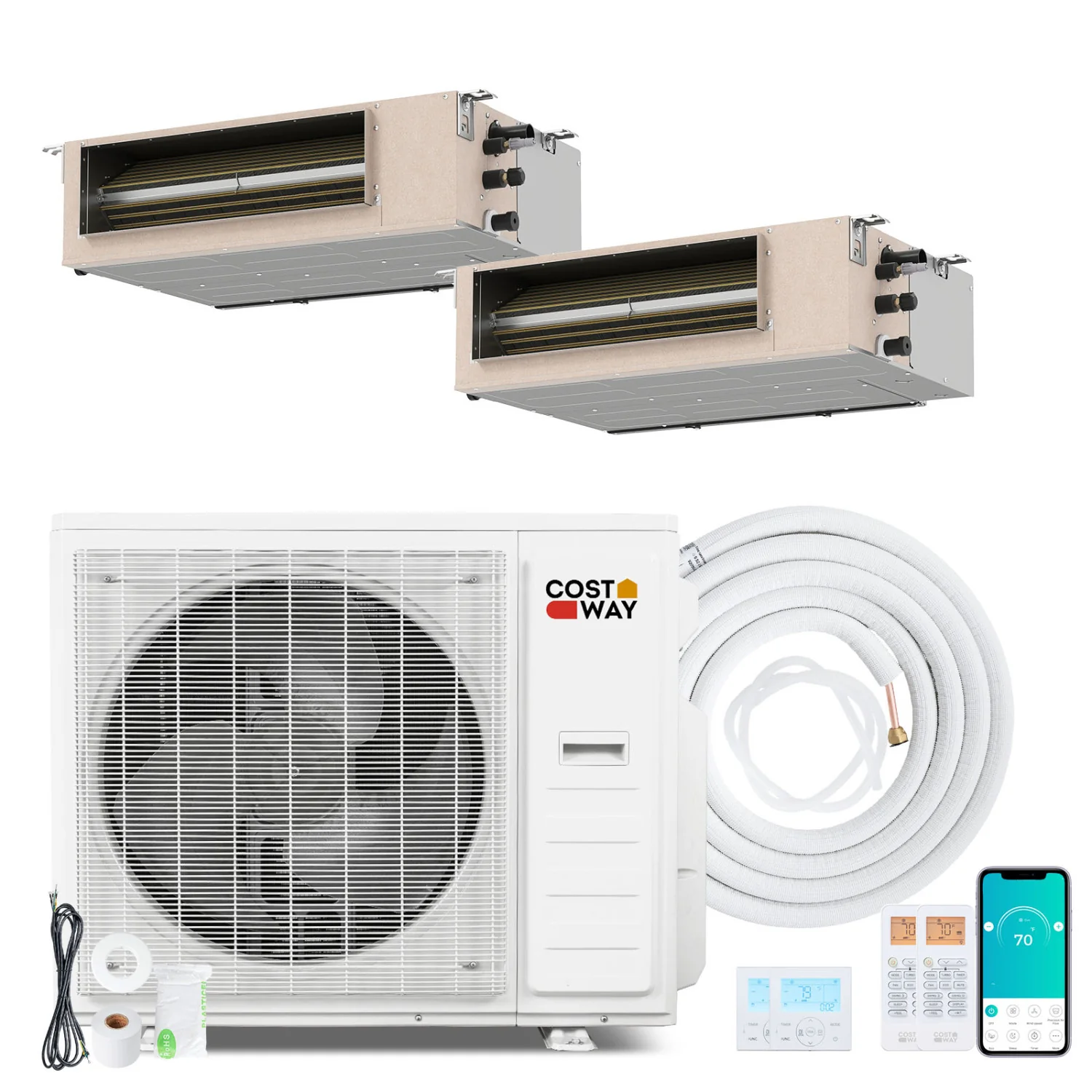

Package Includes:

• 1 x Outdoor Unit.
• 2 x Indoor Unit.
• 2 x Copper Connection Pipe - Gas Pipe.
• 2 x Copper Connection Pipe - Liquid Pipe.
• 2 x Communication Wire.
• 2 x Drain Hose.
• 2 x Remote Control & Holder.
• 2 x Wall Sleeve.
• 4 x Wall Cap.
• 4 x Tape.
• 4 x Putty.
• 2 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.

Package Quantity: 1.
