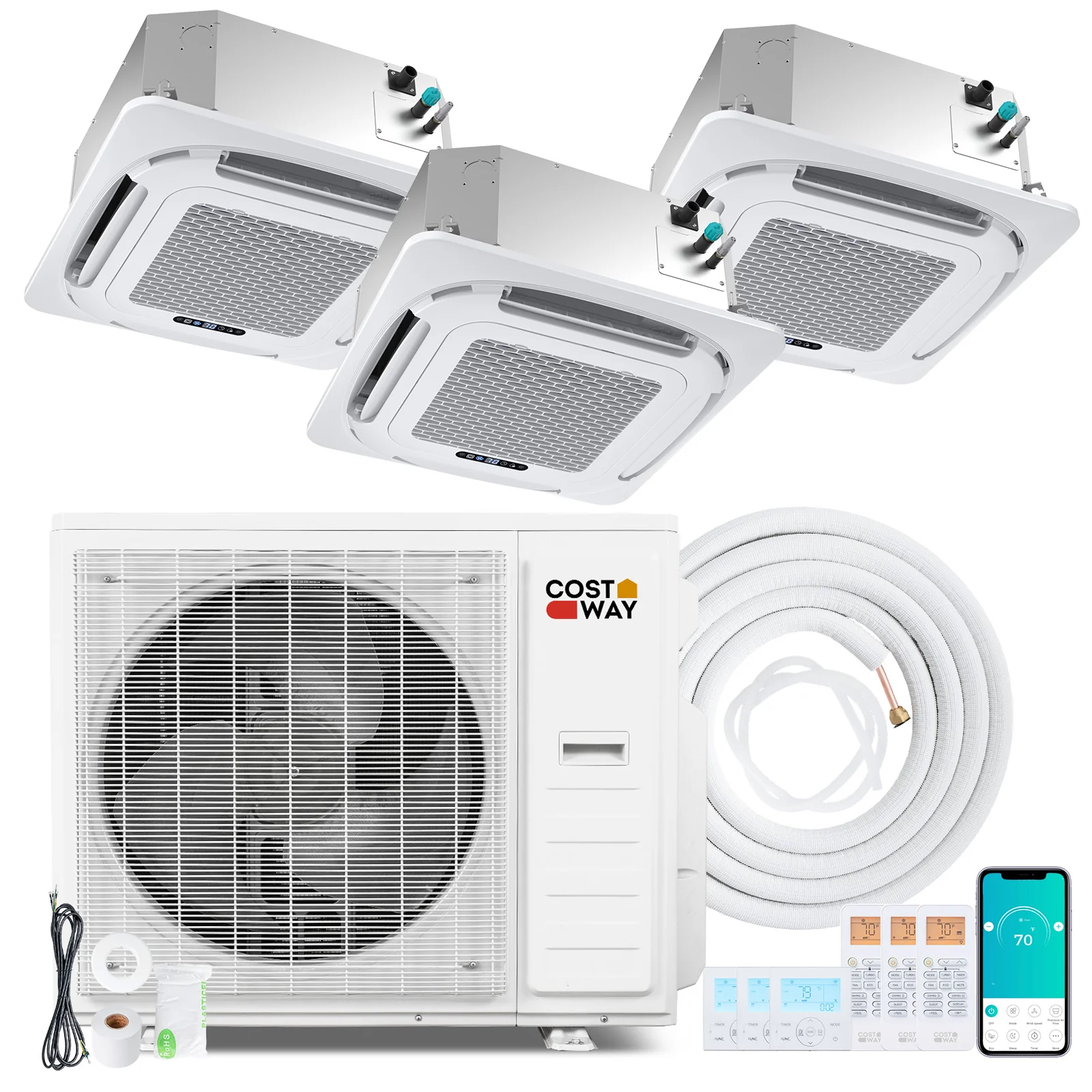

Ceiling Cassette Mini Split AC, 35000 BTU, 3 Zone, 22.5 SEER2, White

Experience year-round comfort with this 35000 BTU 3-zone ceiling cassette mini split AC system, featuring inverter technology for energy efficiency, R454B refrigerant, and smart controls via app, voice, remote, or thermostat. Ideal for homes and commercial spaces, it offers quiet operation and versatile installation.

Overview:

• Provides flexible comfort with independent temperature control in three zones.
• Designed for year-round use in homes, offices, and light commercial spaces.
• Features a ceiling cassette for a clean, built-in look and even airflow.
• Note: Professional installation is required for safe and proper setup.

Highlights:

• Independent temperature control in three zones for personalized comfort.
• Inverter technology ensures outstanding energy efficiency and stable temperatures.
• R454B refrigerant supports a more environmentally friendly approach.
• Stay comfortable year-round with seven modes and eight fan speeds.
• Control your comfort via app, voice, remote, or wall thermostat.
• Chassis electrical heating prevents freezing in colder weather conditions.
• Versatile application for homes, offices, or commercial spaces.
• Ceiling cassette creates a clean and built-in aesthetic.
• 360° airflow spreads air evenly across the room for fewer hot and cold spots.
• 24-hour timer for scheduled temperature changes and energy savings.
• Self-clean function supports fresher operation and long-term performance.
• Whisper quiet operation as low as 32 dB for peaceful environments.
• Child lock adds peace of mind for families with young children.

Features:

• Powerful multi-zone cooling and heating with individual temperature adjustment across three zones.
• Ceiling-mounted design saves wall space and spreads air evenly.
• Engineered to keep working in harsh conditions, cooling even at 55℃ and heating even at -25℃.
• Built-in chassis electrical heating system prevents freezing in colder weather.
• Lower energy consumption with a 22.5 SEER2 rating.
• Utilizes R454B refrigerant with a lower global warming potential.
• Incorporates inverter technology to maintain stable temperatures and reduce energy costs.
• Smart control with Wi-Fi enabled for app control, voice control, remote, and wall thermostat support.
• Choose from seven modes: auto, cool, heat, dry, fan, Eco, and sleep.
• Fine-tune airflow with eight fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for scheduled temperature changes.
• Quiet operation as low as 32 dB for peaceful sleep and focused work.
• 8-way 360° airflow reaches more of the room for fewer hot and cold spots.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Wide use and exceptional versatility for homes, offices, meeting rooms, and light commercial spaces.
• Outdoor unit is compatible with various types of indoor units, including ductless wall mounted, ductless ceiling cassette, and concealed ducted units.
• Note: Professional installation is required for safe and proper setup.

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59 inches x 25.59 inches x 11.85 inches (65.0 cm x 65.0 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches x 14.96 inches x 27.52 inches (92.7 cm x 38.0 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches x 16.57 inches x 31.61 inches (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches x 18.43 inches x 33.58 inches (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 31.9 pounds (14.5 kg).
• Net Weight of 12K Indoor Unit: 31.9 pounds (14.5 kg).
• Net Weight of 18K Indoor Unit: 31.9 pounds (14.5 kg).
• Net Weight of 18K Outdoor Unit: 92.6 pounds (42.0 kg).
• Net Weight of 27K Outdoor Unit: 119 pounds (54.0 kg).
• Net Weight of 35K Outdoor Unit: 145.5 pounds (66.0 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi Zone Combination: 3.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃ to 31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 32 dB.
• Max Remote Control Distance: 39.2 feet (11.9 meters).
• Coverage Area (9K): 450 square feet (41.8 square meters).
• Coverage Area (12K): 750 square feet (69.7 square meters).
• Coverage Area (18K): 1250 square feet (116.1 square meters).
• Dehumidification Capacity (9K): 55.8 pints per day (26.4 liters per day).
• Dehumidification Capacity (12K): 81.2 pints per day (38.4 liters per day).
• Dehumidification Capacity (18K): 111.6 pints per day (52.8 liters per day).
• Maximum Air Flow Volume (9K): 194 CFM (329 m³/h).
• Maximum Air Flow Volume (12K): 212 CFM (360 m³/h).
• Maximum Air Flow Volume (18K): 260 CFM (441 m³/h).
• SEER2 Rating (18K): 24.
• SEER2 Rating (27K): 24.
• SEER2 Rating (35K): 22.5.
• HSPF2 Rating (18K): 10.5.
• HSPF2 Rating (27K): 10.5.
• HSPF2 Rating (35K): 10.

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control & Holder.
• 3 x Wall Thermostat.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 7 x User Guide.

Package Quantity: 1
