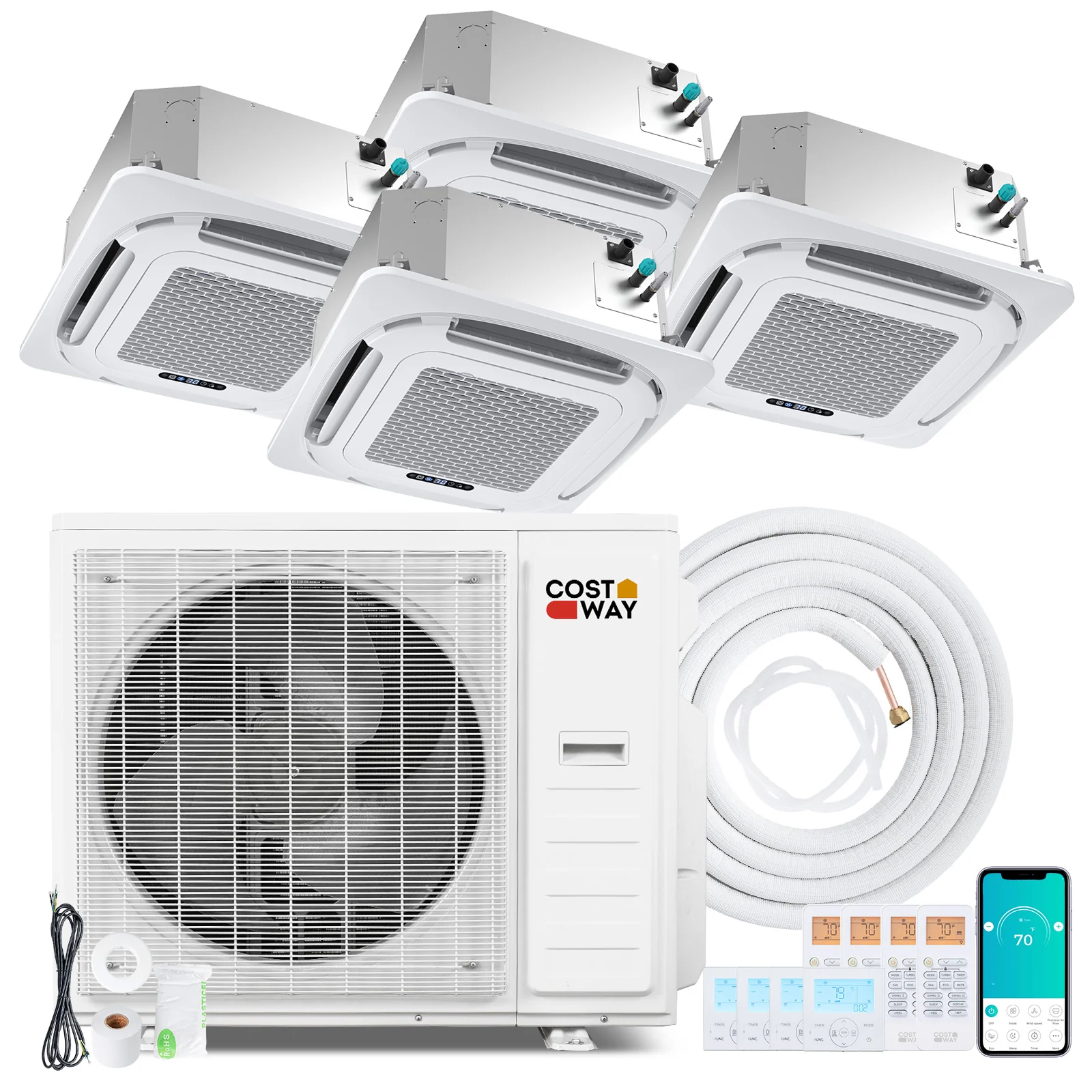

4 Zone Ceiling Cassette Mini Split AC, 35000 BTU, 22.5 SEER2, White

Experience year-round comfort with this 4-zone 35000 BTU ceiling cassette mini split AC system, offering independent temperature control, energy-efficient inverter technology, and smart connectivity for versatile home and commercial use.

Overview:

• Provides flexible comfort with independent temperature control in 4 zones.
• Ideal for homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features a clean, built-in ceiling cassette design that saves wall space and spreads air evenly.
• Note: Professional installation is required.

Highlights:

• Independent temperature control in 4 areas for personalized comfort.
• Inverter technology ensures outstanding energy efficiency and stable temperatures.
• R454B refrigerant supports a more future-friendly, environmentally conscious approach.
• Stay comfortable year-round with 7 modes and 8 fan speeds.
• Control your comfort via app, voice, remote, or wall thermostat from anywhere.
• Chassis electrical heating prevents freezing in colder weather, heating down to -25°C.
• Versatile application for various residential and commercial spaces.
• Ceiling cassette creates a clean, built-in look that saves space.
• 360° airflow spreads air evenly across the room, reducing hot and cold spots.
• 24-hour timer for scheduled temperature changes and energy savings.
• Self-clean function supports fresher operation and long-term performance.
• Whisper-quiet operation as low as 32 dB for peaceful sleep and focused work.
• Child lock adds peace of mind for families with young children.

Features:

• Powerful multi-zone cooling and heating with 35000 BTU capacity.
• Individual temperature adjustment across 4 zones for customized comfort.
• Ceiling-mounted design saves wall space and spreads air evenly.
• Engineered to work in harsh conditions, cooling at up to 55°C and heating down to -25°C.
• Built-in chassis electrical heating system prevents freezing in cold weather.
• Lower energy consumption with a 22.5 SEER2 rating for cost savings.
• Utilizes R454B refrigerant with lower global warming potential.
• Incorporates inverter technology to maintain stable temperatures efficiently.
• Smart control with Wi-Fi enabled app, voice control, remote, and wall thermostat support.
• 7 modes: auto, cool, heat, dry, fan, Eco, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduled temperature changes.
• Quiet operation as low as 32 dB for minimal disruption.
• 8-way 360° airflow reaches more of the room for even temperature distribution.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Wide use in homes, offices, meeting rooms, and light commercial spaces.
• Outdoor unit compatible with various indoor units: ductless wall mounted, ductless ceiling cassette, and concealed ducted.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59" x 25.59" x 11.85" (65 cm x 65 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 31.9 lbs (14.5 kg).
• Net Weight of 12K Indoor Unit: 31.9 lbs (14.5 kg).
• Net Weight of 18K Indoor Unit: 31.9 lbs (14.5 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi-zone combination: 4 zones.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C.
• Refrigerant: R454B.
• Indoor unit noise level: 32 dB.
• Maximum remote control distance: 39.2 ft (11.9 m).
• Coverage area for 9K: 450 sq.ft (41.8 m²).
• Coverage area for 12K: 750 sq.ft (69.7 m²).
• Coverage area for 18K: 1250 sq.ft (116.1 m²).
• Dehumidification capacity for 9K: 55.8 pints/day (26.5 liters/day).
• Dehumidification capacity for 12K: 81.2 pints/day (38.6 liters/day).
• Dehumidification capacity for 18K: 111.6 pints/day (53 liters/day).
• Maximum air flow volume for 9K: 194 CFM (329 m³/h).
• Maximum air flow volume for 12K: 212 CFM (360 m³/h).
• Maximum air flow volume for 18K: 260 CFM (441 m³/h).
• SEER2 rating for 18K: 24.
• SEER2 rating for 27K: 24.
• SEER2 rating for 35K: 22.5.
• HSPF2 rating for 18K: 10.5.
• HSPF2 rating for 27K: 10.5.
• HSPF2 rating for 35K: 10.
• Diameter of liquid pipe: 1/4" (6.35 mm).
• Diameter of gas pipe for 9K: 3/8" (9.53 mm).
• Diameter of gas pipe for 12K: 3/8" (9.53 mm).
• Diameter of gas pipe for 18K: 1/2" (12.7 mm).

Package Includes:

• 1 x outdoor unit.
• 4 x indoor unit.
• 4 x copper connection pipe - gas pipe.
• 4 x copper connection pipe - liquid pipe.
• 4 x communication wire.
• 2 x drain hose.
• 4 x remote control and holder.
• 4 x wall thermostat.
• 4 x wall sleeve.
• 8 x wall cap.
• 8 x tape.
• 8 x putty.
• 4 x screw kit.
• 4 x mounting foot pad.
• 9 x user guide.

Package quantity: 1.
