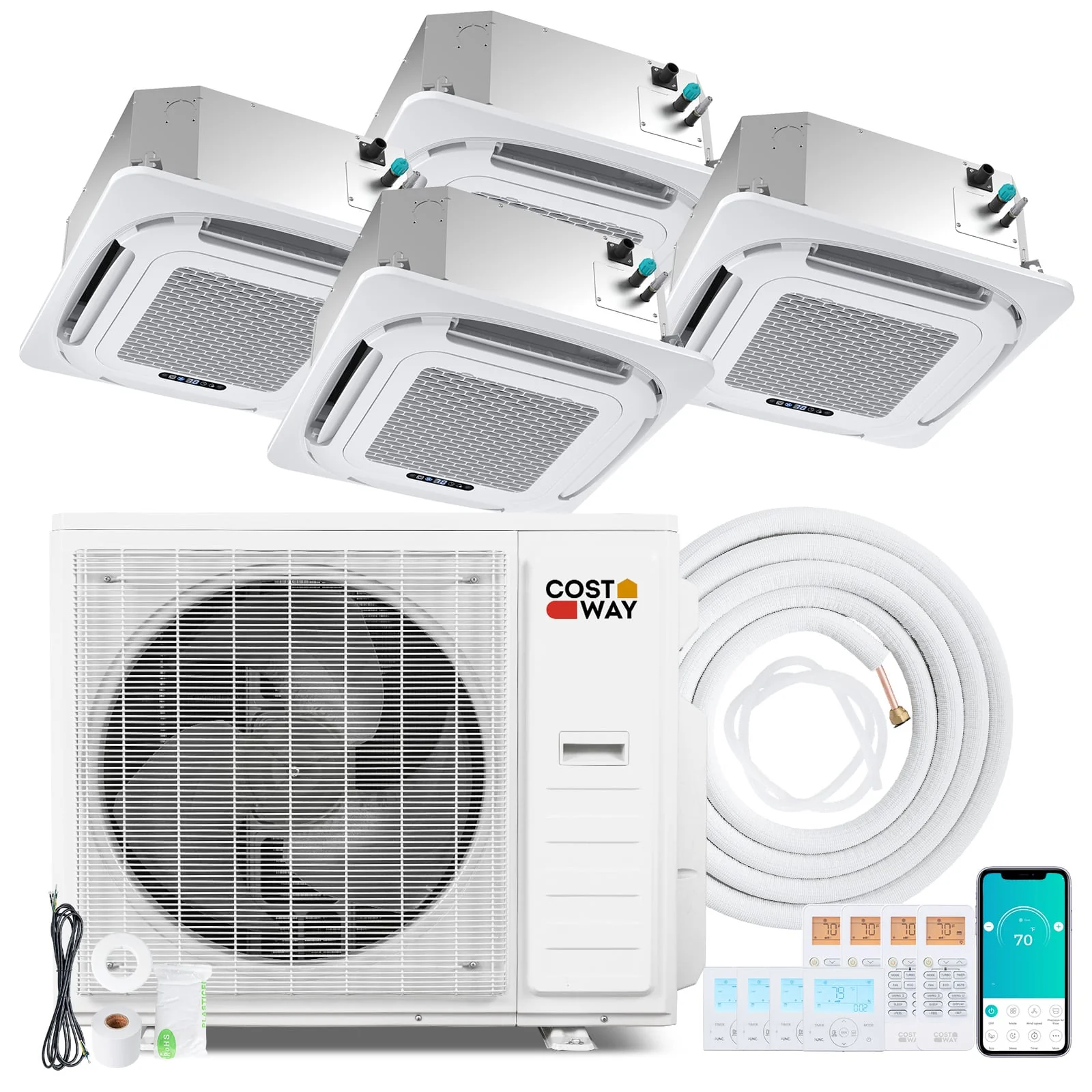

4 Zone Ceiling Cassette Mini Split AC, 22.5 SEER2, 35000 BTU, White

Experience year-round comfort with this 4-zone 35000 BTU ceiling cassette mini split AC system, offering independent temperature control, inverter technology for energy efficiency, and smart connectivity via app, voice, or remote. Ideal for homes, offices, and light commercial spaces, it features whisper-quiet operation, 360° airflow, and a self-clean function for easy maintenance.

Overview:

• Provides flexible comfort with individual temperature control in four zones.
• Designed for versatile use in homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features a ceiling cassette design for a clean, built-in look that saves wall space.
• Note: Professional installation is required.

Highlights:

• Independent temperature control in 4 areas for personalized comfort.
• Inverter technology ensures outstanding energy efficiency.
• R454B refrigerant supports a more future-friendly approach.
• Stay comfortable year-round with 7 modes and 8 fan speeds.
• Control your comfort via the app, voice, remote, or wall thermostat.
• Chassis electrical heating prevents freezing in colder weather.
• Versatile application for homes, offices, or commercial spaces.
• Ceiling cassette creates a clean and built-in look.
• 360° airflow spreads air evenly across the room.
• 24-hour timer for scheduled temperature changes.
• Self-clean function supports fresher operation.
• Whisper quiet operation as low as 32 dB.
• Child lock adds peace of mind for families.

Features:

• Powerful multi-zone cooling and heating with individual temperature adjustment across 4 zones.
• Ceiling-mounted design saves wall space and spreads air evenly.
• Engineered to keep working in harsh conditions, cooling even at 55℃ and heating even at -25℃.
• Built-in chassis electrical heating system prevents freezing in colder weather.
• Lower energy consumption with a 22.5 SEER2 rating.
• Utilizes R454B refrigerant with a lower global warming potential.
• Incorporates inverter technology to maintain stable temperatures while reducing energy costs.
• Smart control with Wi-Fi enabled for app control, plus voice control, remote, and wall thermostat support.
• Choose from 7 modes: auto, cool, heat, dry, fan, Eco, and sleep.
• Fine-tune airflow with 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for scheduled temperature changes.
• Quiet operation as low as 32dB for peaceful sleep and focused work.
• 8-way 360° airflow reaches more of the room for fewer hot and cold spots.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Wide use and exceptional versatility for various indoor unit types, including ductless wall mounted, ductless ceiling cassette, and concealed ducted units.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59" x 25.59" x 11.85" (65 cm x 65 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K, 12K, 18K): 31.9 lbs (14.5 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66 kg).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 32 dB.
• Max Remote Control Distance: 39.2 ft.
• Coverage Area-9K: 450 Sq.Ft.
• Coverage Area-12K: 750 Sq.Ft.
• Coverage Area-18K: 1250 Sq.Ft.
• Dehumidification Capacity-9K: 55.8 Pints/Day.
• Dehumidification Capacity-12K: 81.2 Pints/Day.
• Dehumidification Capacity-18K: 111.6 Pints/Day.
• Maximum Air Flow Volume-9K: 194 CFM/329 m³/h.
• Maximum Air Flow Volume-12K: 212 CFM/360 m³/h.
• Maximum Air Flow Volume-18K: 260 CFM/441 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.
• Diameter of Liquid Pipe: 1/4".
• Diameter of Gas Pipe-9K: 3/8".
• Diameter of Gas Pipe-12K: 3/8".
• Diameter of Gas Pipe-18K: 1/2".

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 2 x Drain Hose.
• 4 x Remote Control & Holder.
• 4 x Wall Thermostat.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 9 x User Guide.

Package Quantity: 1
