38000 BTU 4 Zone 20 SEER2 Mini Split AC, Heat Pump, 9K + 9K + 12K + 18K

Experience year-round comfort with this 38000 BTU 4-zone mini split AC and heat pump system, featuring 20 SEER2 efficiency, smart controls, and quiet operation for whole-home climate control.

Overview:

• Provides powerful cooling and heating for up to 4 zones, ideal for larger homes.
• Designed for energy savings with inverter technology and a high SEER2 rating.
• Offers smart connectivity via Wi-Fi, remote, and voice assistants for convenient control.
• Features low noise operation and easy maintenance with self-clean and washable filters.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 4 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

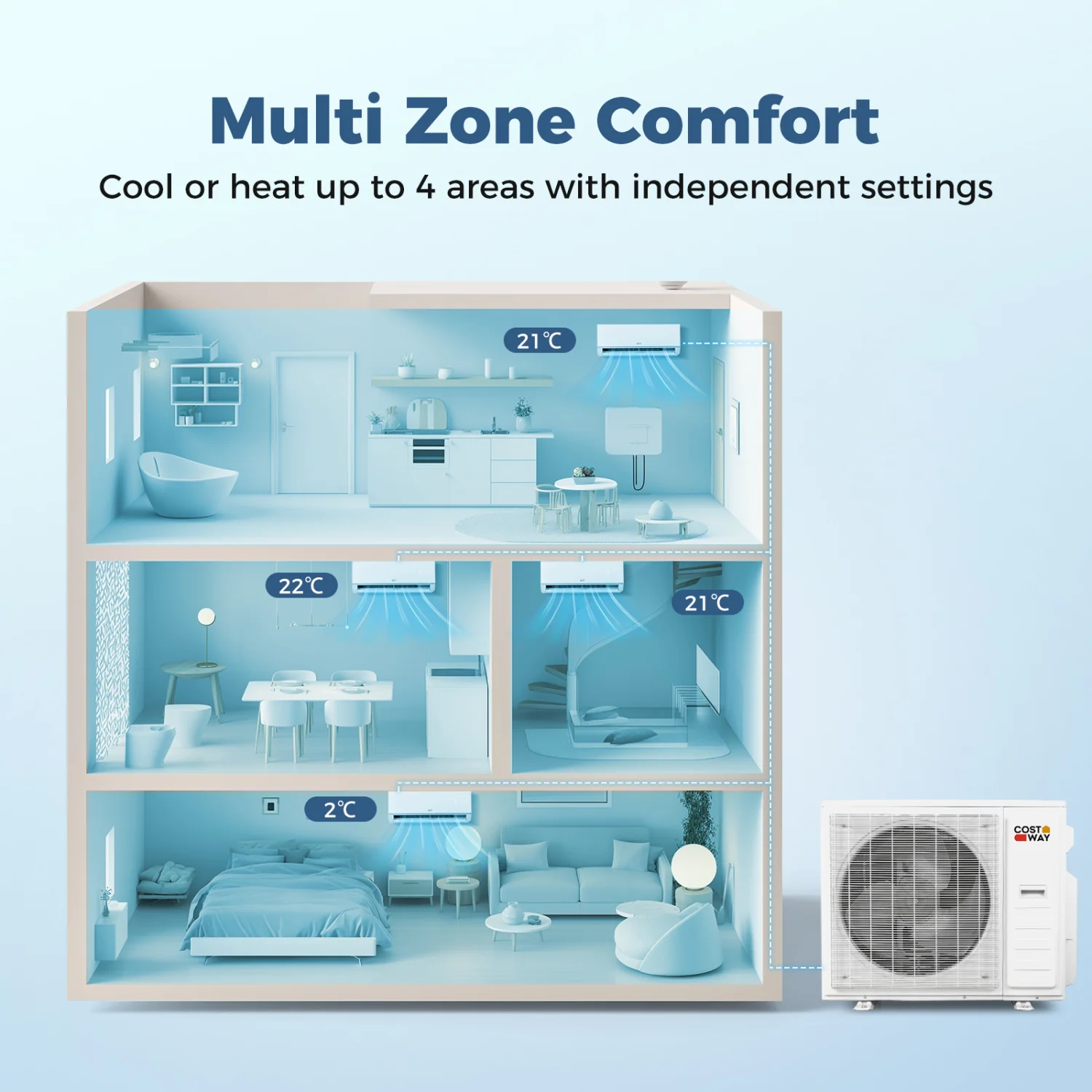

• Multi-zone comfort with room-by-room temperature control for larger homes.
• Dual/tri/quad zone design for tailored temperatures.
• 4D swing spreads air more evenly.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• Higher energy savings with a 20 SEER2 rating.
• Advanced inverter technology reduces energy waste and keeps temperatures stable.

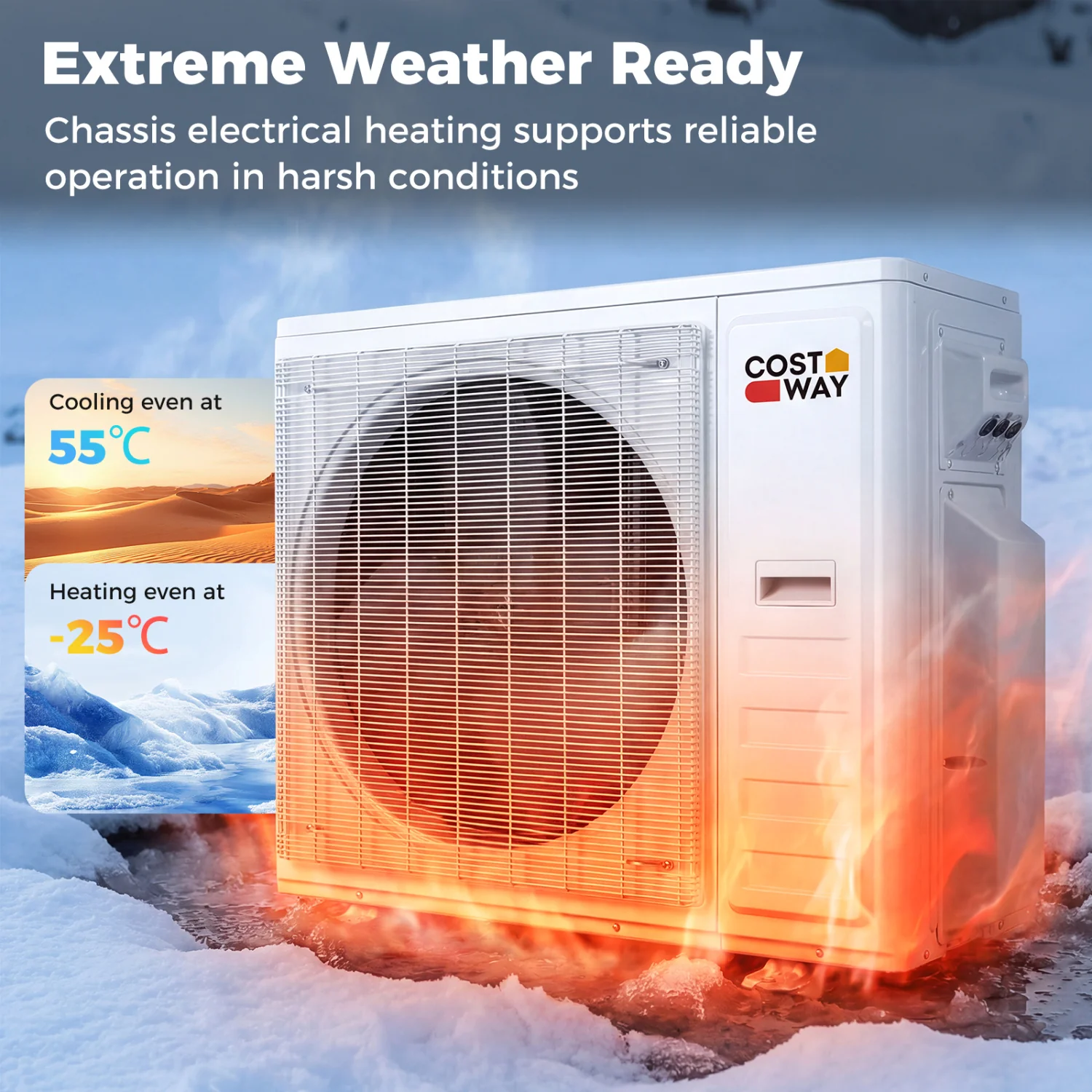

• Extreme weather ready with chassis electrical heating in the outdoor unit.
• Supports reliable operation in harsh conditions, cooling at 55°C and heating at -25°C.
• Smart control with Wi-Fi, Alexa, and Google Assistant compatibility.
• Remote control for quick access.

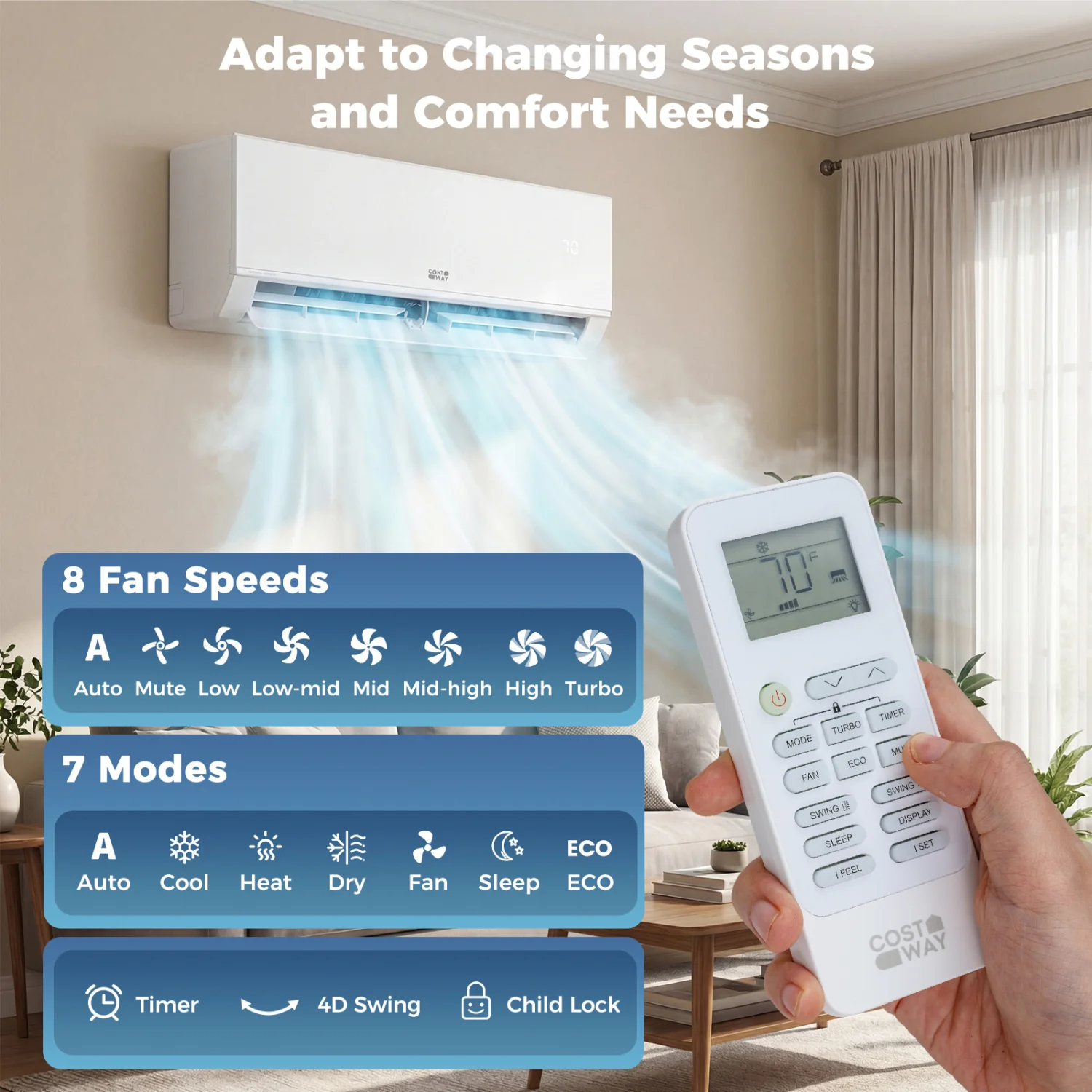

• 7 modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer and child lock for extended comfort.
• Low noise operation as low as 28 dB for minimal distraction.
• Easy maintenance with self-clean function and washable filters.
• Note: Professional licensed HVAC technician installation is recommended.

Weight & Dimensions:

• Indoor Unit 9K: 31.93" x 7.48" x 12.05" (81.1 cm x 19.0 cm x 30.6 cm), weight 19.8 lbs (9.0 kg).
• Indoor Unit 12K: 31.93" x 7.48" x 12.05" (81.1 cm x 19.0 cm x 30.6 cm), weight 19.8 lbs (9.0 kg).
• Indoor Unit 18K: 35.83" x 7.68" x 12.01" (91.0 cm x 19.5 cm x 30.5 cm), weight 20.9 lbs (9.5 kg).
• Indoor Unit 24K: 39.57" x 8.66" x 12.64" (100.5 cm x 22.0 cm x 32.1 cm), weight 27.6 lbs (12.5 kg).
• Outdoor Unit 20K: 33.54" x 13.74" x 23.7" (85.2 cm x 34.9 cm x 60.2 cm).
• Outdoor Unit 28K: 35.94" x 14.76" x 26.34" (91.3 cm x 37.5 cm x 66.9 cm).
• Outdoor Unit 38K: 42.64" x 19.45" x 33.78" (108.3 cm x 49.4 cm x 85.8 cm), weight 148.8 lbs (67.5 kg).
• Outdoor Unit 18K weight: 70.5 lbs (32.0 kg).
• Outdoor Unit 27K weight: 94.8 lbs (43.0 kg).
• Diameter of liquid pipe: 1/4" (0.64 cm).
• Diameter of gas pipe for 9K, 12K, and 18K: 3/8" (0.95 cm).
• Diameter of gas pipe for 24K: 1/2" (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi-zone combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C.
• Refrigerant: R32.
• Indoor unit noise level: 28 dB.
• Maximum remote control distance: 39.5 ft (12.0 m).
• Coverage area for 9K: 450 sq. ft.
• Coverage area for 12K: 750 sq. ft.
• Coverage area for 18K: 1250 sq. ft.
• Coverage area for 24K: 1500 sq. ft.
• Dehumidification capacity for 9K: 66 pints/day.
• Dehumidification capacity for 12K: 81.2 pints/day.
• Dehumidification capacity for 18K: 111.6 pints/day.
• Dehumidification capacity for 24K: 131.9 pints/day.
• Maximum air flow volume for 9K: 335 CFM.
• Maximum air flow volume for 12K: 342 CFM.
• Maximum air flow volume for 18K: 617 CFM.
• Maximum air flow volume for 24K: 847 CFM.
• 20K SEER2: 23.
• 28K SEER2: 20.
• 38K SEER2: 20.
• 20K HSPF2: 9.5.
• 28K HSPF2: 9.5.
• 38K HSPF2: 9.5.

Package Includes:

• 1 x outdoor unit.
• 4 x indoor unit.
• 4 x copper connection pipe for gas pipe.
• 4 x copper connection pipe for liquid pipe.
• 4 x communication wire.
• 4 x drain hose.
• 4 x remote control and holder.
• 4 x wall sleeve.
• 8 x wall cap.
• 8 x tape.
• 8 x putty.
• 4 x screw kit.
• 4 x mounting foot pad.
• 6 x user guide.

Package Quantity: 6 boxes.
