38000 BTU 4 Zone 20 SEER2 Mini Split AC, Heat Pump, 9K + 9K + 12K + 12K

Experience year-round comfort with this 38000 BTU 4-zone mini split AC and heat pump system, featuring a 20 SEER2 rating for high energy efficiency, smart Wi-Fi control, and quiet operation as low as 28 dB. Ideal for larger homes, it provides customizable room-by-room temperature control with reliable performance in extreme weather conditions from -25°C to 55°C.

Overview:

• Provides powerful whole-home cooling and heating for 4 zones with room-by-room comfort control.
• Features 20 SEER2 rating and inverter technology for high energy efficiency and stable temperature maintenance.
• Equipped with chassis electrical heating in the outdoor unit for reliable operation in harsh conditions, cooling up to 55°C and heating down to -25°C.
• Offers smart control via Wi-Fi, Alexa, Google Assistant, and remote, with 7 operating modes and 8 fan speeds.
• Includes low noise operation, self-clean function, washable filters, child lock, and 4D auto swing for even air distribution.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 4 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

• Multi-zone comfort with 38000 BTU capacity for room-by-room temperature control in larger homes.
• Dual/tri/quad zone design for tailored temperature settings.
• 4D swing spreads air more evenly for consistent airflow.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• Higher energy savings with 20 SEER2 rating and energy-smart control.
• Advanced inverter technology reduces energy waste and maintains stable set temperatures.
• Extreme weather ready with chassis electrical heating in the outdoor unit.
• Reliable operation in harsh conditions, cooling up to 55°C and heating down to -25°C.
• Smart control via Wi-Fi, Alexa, Google Assistant, and remote control.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduled use and energy saving.
• Child lock to prevent accidental setting changes.
• Low noise operation as low as 28 dB for a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 31.93 inches x 7.48 inches x 12.05 inches (81.10 cm x 19.00 cm x 30.61 cm).
• Indoor Unit Dimensions (12K): 31.93 inches x 7.48 inches x 12.05 inches (81.10 cm x 19.00 cm x 30.61 cm).
• Indoor Unit Dimensions (18K): 35.83 inches x 7.68 inches x 12.01 inches (91.00 cm x 19.51 cm x 30.51 cm).
• Indoor Unit Dimensions (24K): 39.57 inches x 8.66 inches x 12.64 inches (100.51 cm x 22.00 cm x 32.11 cm).
• Outdoor Unit Dimensions (20K): 33.54 inches x 13.74 inches x 23.7 inches (85.19 cm x 34.90 cm x 60.20 cm).
• Outdoor Unit Dimensions (28K): 35.94 inches x 14.76 inches x 26.34 inches (91.29 cm x 37.49 cm x 66.90 cm).
• Outdoor Unit Dimensions (38K): 42.64 inches x 19.45 inches x 33.78 inches (108.31 cm x 49.40 cm x 85.80 cm).
• Net Weight of Indoor Unit (9K): 19.8 pounds (8.98 kg).
• Net Weight of Indoor Unit (12K): 19.8 pounds (8.98 kg).
• Net Weight of Indoor Unit (18K): 20.9 pounds (9.48 kg).
• Net Weight of Indoor Unit (24K): 27.6 pounds (12.52 kg).
• Net Weight of Outdoor Unit (18K): 70.5 pounds (31.98 kg).
• Net Weight of Outdoor Unit (27K): 94.8 pounds (43.00 kg).
• Net Weight of Outdoor Unit (36K): 148.8 pounds (67.50 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K): 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 4.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C.

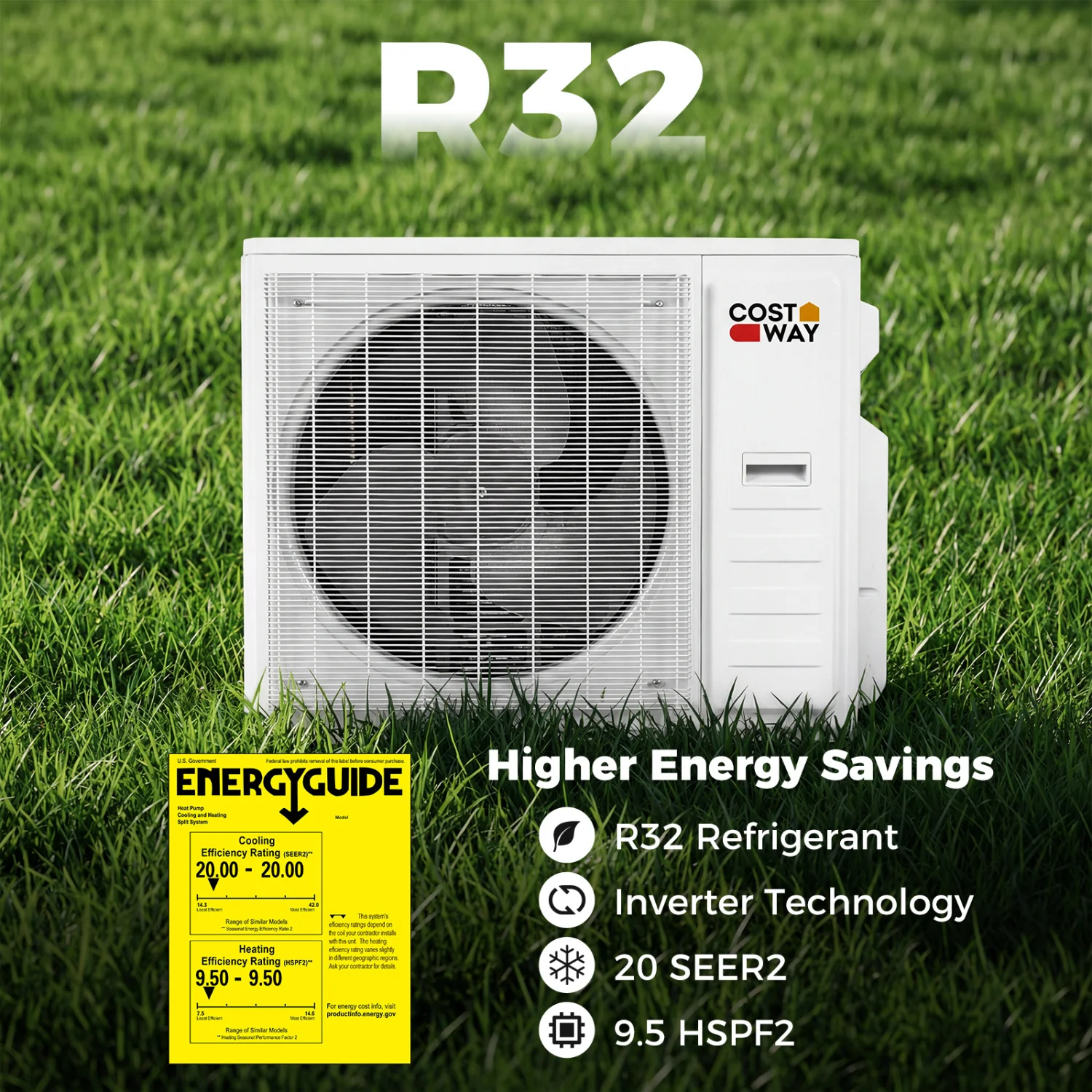

• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet (12.04 meters).
• Coverage Area (9K): 450 square feet (41.81 square meters).
• Coverage Area (12K): 750 square feet (69.68 square meters).
• Coverage Area (18K): 1250 square feet (116.13 square meters).
• Coverage Area (24K): 1500 square feet (139.35 square meters).
• Dehumidification Capacity (9K): 66 pints per day (31.23 liters per day).
• Dehumidification Capacity (12K): 81.2 pints per day (38.43 liters per day).
• Dehumidification Capacity (18K): 111.6 pints per day (52.81 liters per day).
• Dehumidification Capacity (24K): 131.9 pints per day (62.41 liters per day).
• Maximum Air Flow Volume (9K): 335 CFM (9.49 cubic meters per minute).
• Maximum Air Flow Volume (12K): 342 CFM (9.68 cubic meters per minute).
• Maximum Air Flow Volume (18K): 617 CFM (17.47 cubic meters per minute).
• Maximum Air Flow Volume (24K): 847 CFM (23.98 cubic meters per minute).
• SEER2 Rating (20K): 23.
• SEER2 Rating (28K): 20.
• SEER2 Rating (38K): 20.
• HSPF2 Rating (20K): 9.5.
• HSPF2 Rating (28K): 9.5.
• HSPF2 Rating (38K): 9.5.

Package Includes:

• 1 x Outdoor Unit.
• 4 x Indoor Unit.
• 4 x Copper Connection Pipe - Gas Pipe.
• 4 x Copper Connection Pipe - Liquid Pipe.
• 4 x Communication Wire.
• 4 x Drain Hose.
• 4 x Remote Control and Holder.
• 4 x Wall Sleeve.
• 8 x Wall Cap.
• 8 x Tape.
• 8 x Putty.
• 4 x Screw Kit.
• 4 x Mounting Foot Pad.
• 6 x User Guide.

Package Quantity: 6 boxes.
