38000 BTU 3 Zone 20 SEER2 Mini Split AC With Heat Pump

Experience year-round comfort with this 3 zone mini split air conditioner and heater, delivering powerful 38000 BTU cooling and heating for larger homes. Its 20 SEER2 rating and inverter technology ensure high energy efficiency, while smart controls via app, remote, or voice commands offer convenient operation.

Overview:

• Provides whole-home comfort with multi-zone temperature control for up to three rooms.
• Ideal for homeowners seeking energy-efficient heating and cooling solutions.
• Features advanced technology like 4D auto swing for even air distribution and a gentle golf ball dimples design.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 3 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

• 3 zone 38000 BTU mini split ac and heating system for room-by-room comfort in larger homes.
• Dual, tri, or quad zone design for tailored temperature control.
• 4D swing spreads air more evenly for consistent cooling and heating.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• 20 SEER2 rating for energy-smart control and reduced utility costs.
• Advanced inverter technology reduces energy waste and maintains stable temperatures.

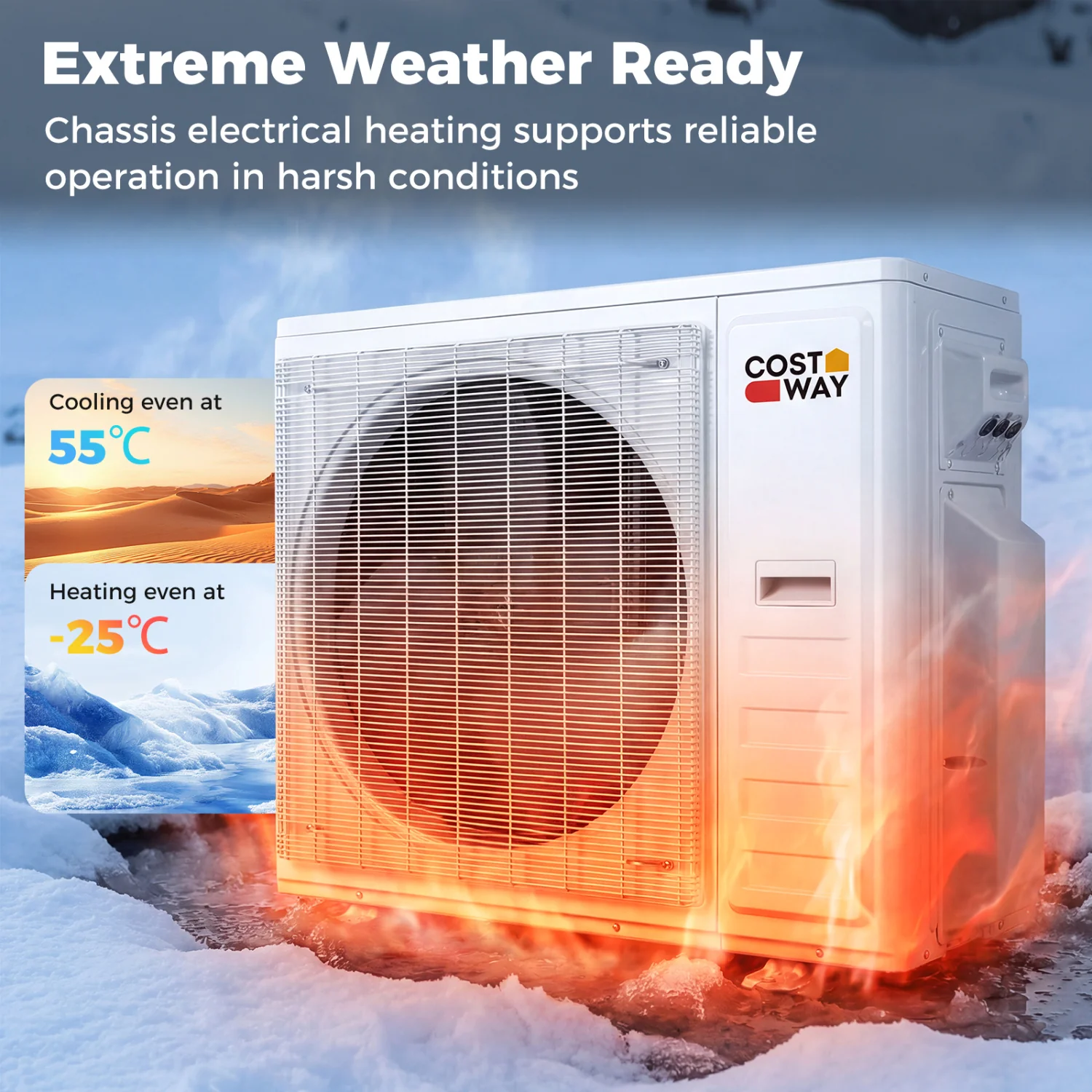

• Outdoor unit equipped with chassis electrical heating for reliable operation in extreme conditions.
• Operates in cooling mode even at 55°C and heating mode even at -25°C.
• WiFi enabled for smart control with Alexa and Google Assistant compatibility.
• Remote control included for quick access and convenience.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer for scheduled operation and energy savings.
• Child lock feature to prevent accidental setting changes.
• Low noise operation with indoor unit noise as low as 28 dB for minimal distraction.
• Self-clean function maintains fresher airflow over time.
• Removable and washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

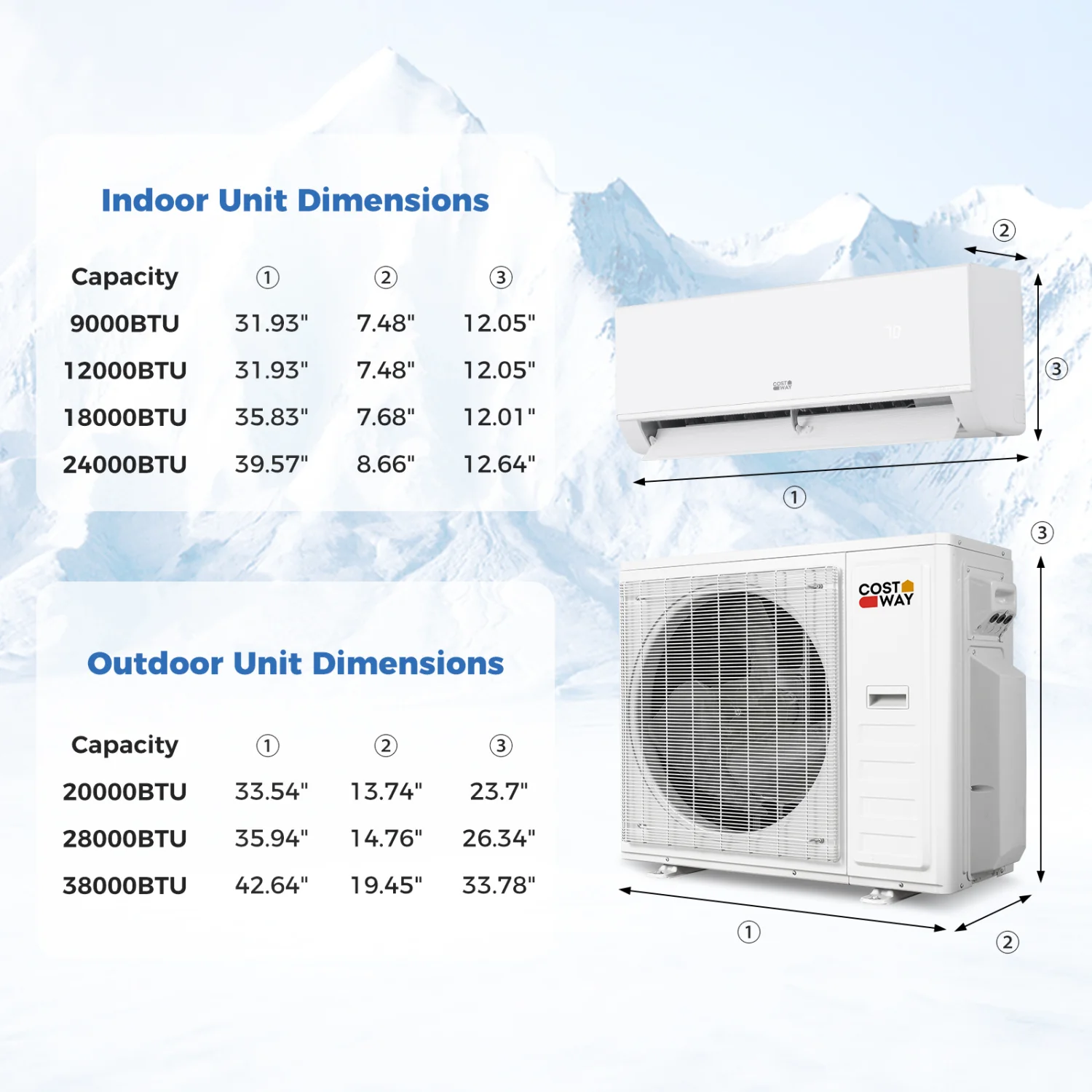

Weight & Dimensions:

• Outdoor unit dimensions for 20K: 33.54 inches long x 13.74 inches wide x 23.7 inches high (85.19 cm x 34.90 cm x 60.20 cm).
• Outdoor unit dimensions for 28K: 35.94 inches long x 14.76 inches wide x 26.34 inches high (91.29 cm x 37.49 cm x 66.90 cm).
• Outdoor unit dimensions for 38K: 42.64 inches long x 19.45 inches wide x 33.78 inches high (108.31 cm x 49.40 cm x 85.80 cm).
• Diameter of liquid pipe: 1/4 inch (0.64 cm).
• Diameter of gas pipe for 9K, 12K, and 18K: 3/8 inch (0.95 cm).
• Diameter of gas pipe for 24K: 1/2 inch (1.27 cm).
• Net weight of 38K outdoor unit: 148.8 pounds (67.5 kg).
• Net weight of 9K indoor unit: 19.8 pounds (9.0 kg).
• Net weight of 12K indoor unit: 19.8 pounds (9.0 kg).
• Net weight of 18K indoor unit: 20.9 pounds (9.5 kg).
• Net weight of 24K indoor unit: 27.6 pounds (12.5 kg).

Specifications:

• Multi zone combination: 3 zones.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C.
• Refrigerant: R32.
• Indoor unit noise level: 28 dB.
• Maximum remote control distance: 39.5 feet (12.0 meters).
• Coverage area for 9K: 450 square feet.
• Coverage area for 12K: 750 square feet.
• Coverage area for 18K: 1250 square feet.
• Coverage area for 24K: 1500 square feet.
• Dehumidification capacity for 9K: 66 pints per day.
• Dehumidification capacity for 12K: 81.2 pints per day.
• Dehumidification capacity for 18K: 111.6 pints per day.
• Dehumidification capacity for 24K: 131.9 pints per day.
• Maximum air flow volume for 9K: 335 CFM.
• Maximum air flow volume for 12K: 342 CFM.
• Maximum air flow volume for 18K: 617 CFM.
• Maximum air flow volume for 24K: 847 CFM.
• SEER2 for 20K: 23.
• SEER2 for 28K: 20.
• SEER2 for 38K: 20.
• HSPF2 for 20K, 28K, and 38K: 9.5.

Package Includes:

• 1 x outdoor unit.
• 3 x indoor unit.
• 3 x copper connection pipe for gas pipe.
• 3 x copper connection pipe for liquid pipe.
• 3 x communication wire.
• 3 x drain hose.
• 3 x remote control and holder.
• 3 x wall sleeve.
• 6 x wall cap.
• 6 x tape.
• 6 x putty.
• 3 x screw kit.
• 4 x mounting foot pad.
• 5 x user guide.

Package Quantity: 5
