38000 BTU 3 Zone 20 SEER2 Mini Split AC, Heat Pump, 9K + 9K + 24K

Experience year-round comfort with this 3-zone mini split air conditioner and heat pump, delivering efficient heating and cooling for larger homes. Featuring 20 SEER2 energy efficiency, inverter technology, and smart controls, it ensures reliable performance in extreme temperatures from -25°C to 55°C.

Overview:

• Provides whole-home comfort with multi-zone temperature control for up to three rooms.
• Ideal for homeowners seeking energy-efficient heating and cooling solutions.
• Features advanced technology like 4D auto swing for even air distribution and a gentle golf ball dimples design.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 3 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

• 3-zone 38000 BTU mini split ac/heating system provides room-by-room comfort for larger homes.
• Dual/tri/quad zone design lets you tailor temperatures where you need them.
• 4D swing spreads air more evenly.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• 20 SEER2 rating for powerful heating and cooling with energy-smart control.
• Advanced inverter technology helps reduce energy waste while keeping set temperatures stable.
• Outdoor unit equipped with chassis electrical heating for reliable operation in harsh conditions.
• Cools even at 55°C and heats even at -25°C.
• Wi-Fi enabled mini split air conditioner and heater works with Alexa and Google assistant.
• Remote control for quick access.
• 7 modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer and child lock extend comfort to daily use.
• Operates quietly with minimal noise as low as 28 dB.
• Self-clean function and washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

Weight & Dimensions:

• Outdoor Unit Dimensions: 20K: 33.54" x 13.74" x 23.7" (85.19 cm x 34.9 cm x 60.2 cm) (L x W x H).
• Outdoor Unit Dimensions: 28K: 35.94" x 14.76" x 26.34" (91.29 cm x 37.5 cm x 66.9 cm) (L x W x H).
• Outdoor Unit Dimensions: 38K: 42.64" x 19.45" x 33.78" (108.3 cm x 49.4 cm x 85.8 cm) (L x W x H).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe: 9k: 3/8" (0.95 cm), 12k: 3/8" (0.95 cm), 18k: 3/8" (0.95 cm), 24k: 1/2" (1.27 cm).
• Net Weight of 38K Outdoor Unit: 148.8 lbs (67.5 kg).
• Net Weight of 9K Indoor Unit: 19.8 lbs (9 kg).
• Net Weight of 12K Indoor Unit: 19.8 lbs (9 kg).
• Net Weight of 18K Indoor Unit: 20.9 lbs (9.5 kg).
• Net Weight of 24K Indoor Unit: 27.6 lbs (12.5 kg).

Specifications:

• Multi Zone Combination: 3.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C~31°C.

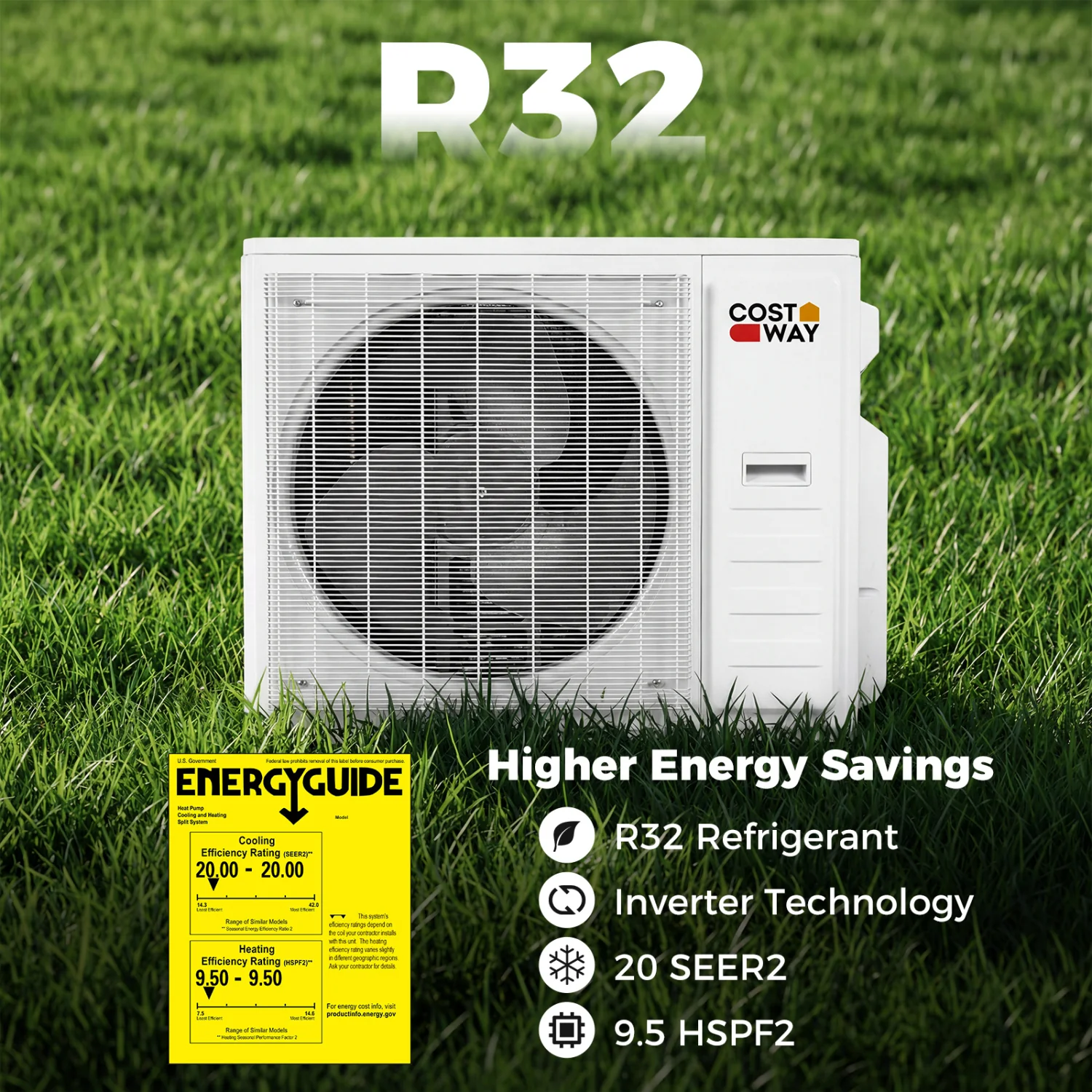

• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 ft (12 m).
• Coverage Area: 9k: 450 Sq.Ft (41.8 m²), 12k: 750 Sq.Ft (69.7 m²), 18k: 1250 Sq.Ft (116.1 m²), 24k: 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity: 9k: 66 Pints/Day (31.2 L/Day), 12k: 81.2 Pints/Day (38.4 L/Day), 18k: 111.6 Pints/Day (52.8 L/Day), 24k: 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume: 9k: 335 CFM (9.5 m³/min), 12k: 342 CFM (9.7 m³/min), 18k: 617 CFM (17.5 m³/min), 24k: 847 CFM (24 m³/min).
• SEER2: 20k: 23, 28k: 20, 38k: 20.
• HSPF2: 20k: 9.5, 28k: 9.5, 38k: 9.5.

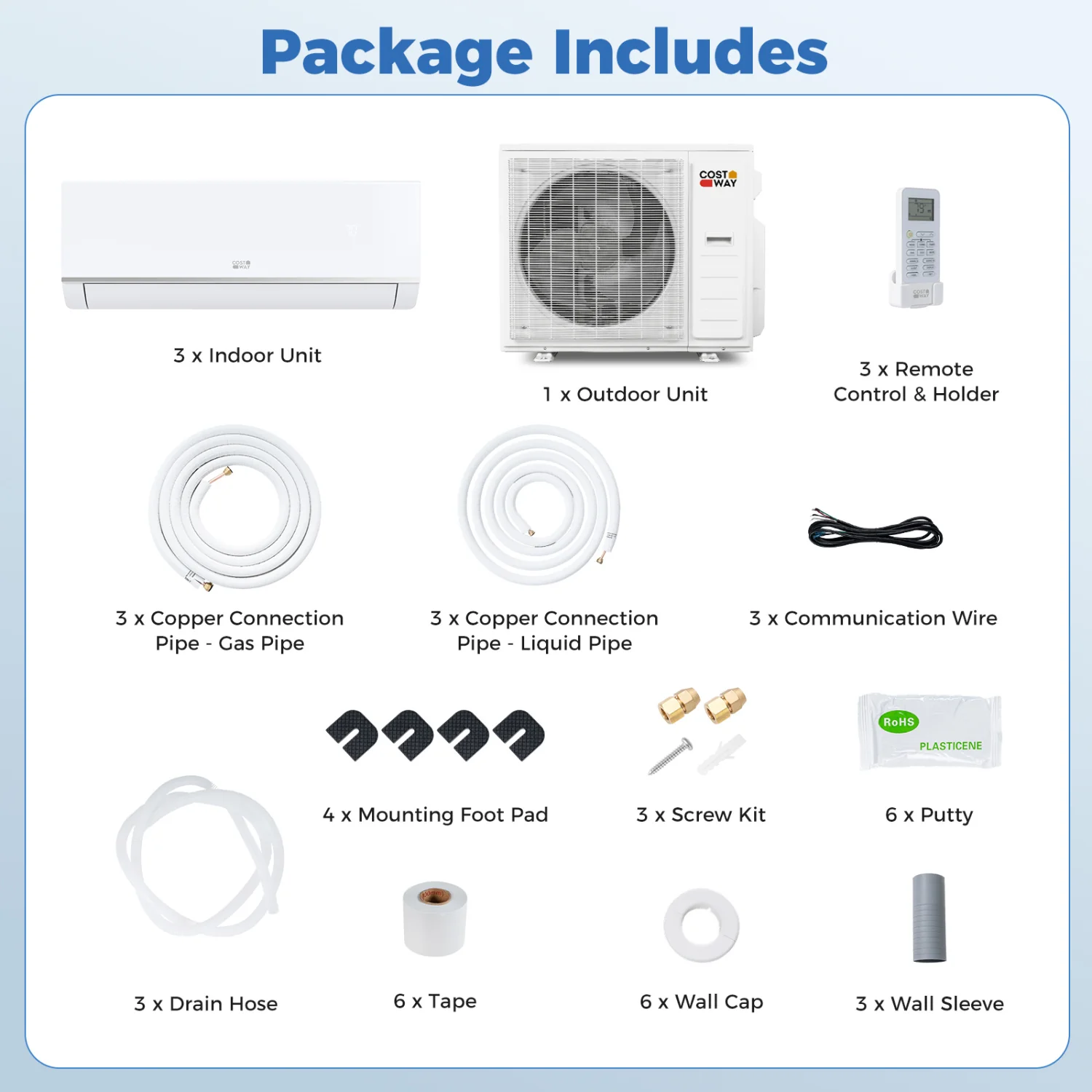

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control and Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.

Package Quantity: 5
