35000 BTU 2 Zone 22.5 SEER2 Concealed Ducted Mini Split AC, White

Experience discreet and efficient climate control with this 2-zone 35000 BTU concealed ducted mini split system. Featuring inverter technology for steady temperatures and energy savings, R454B refrigerant for eco-friendly operation, and smart controls via app, remote, or voice commands. Perfect for homes, offices, and light commercial spaces, it offers quiet operation, multiple modes, and reliable heating and cooling year-round.

Overview:

• Provides powerful and balanced heating and cooling across 2 zones for optimal comfort.
• Ideal for homes, offices, restaurants, and light commercial spaces like living rooms and bedrooms.
• Ducted design keeps the system discreet and maintains a neat appearance in any space.
• Note: Professional installation is required for safe and proper operation.

Highlights:

• Adjust temperature independently across 2 zones for personalized comfort.
• Inverter technology maintains steadier temperatures with smarter energy use.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility with 7 modes and 8 fan speeds for all-season use.
• Enjoy peaceful sleep without distractions with sleep mode and screen off function.
• Effortless convenience with smart control options and wifi connectivity.
• Chassis electrical heating ensures reliable performance in colder conditions.
• 4D auto swing for balanced and even air distribution.
• Self-clean function makes maintenance a breeze.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.

Features:

• Multi-zone climate control with 35000 BTU capacity for powerful heating and cooling.
• Outdoor unit features chassis electrical heating for reliable operation in tough weather with -25℃ low ambient heating and 55℃ high ambient cooling.
• Advanced inverter technology maintains steady temperatures with less energy waste, reducing cycling and improving comfort.
• 22.5 SEER2 rating and R454B refrigerant for efficient year-round use.
• Wifi enabled for control via included remote, wall thermostat, smart app, or voice commands with compatibility for Alexa and Google Assistant.
• 24-hour timer allows for scheduled operation.
• Child lock keeps settings secure.
• 7 modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds for precise comfort adjustment.
• 4D auto swing improves room coverage for balanced air distribution.
• Self-clean function helps keep air paths fresher over time.
• Runs with low sound levels as low as 28 dB for a peaceful environment.
• Ideal for household and light commercial use, including living room, bedroom, office, and restaurant.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (12K): 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (18K): 36.22" x 17.8" x 7.87" (92 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (24K): 43.31" x 17.8" x 7.87" (110 cm x 45.2 cm x 20 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 33.1 lbs (15 kg).
• Net Weight of 12K Indoor Unit: 33.1 lbs (15 kg).
• Net Weight of 18K Indoor Unit: 39.7 lbs (18 kg).
• Net Weight of 24K Indoor Unit: 50.7 lbs (23 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Colour: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 2.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.2 ft (11.9 m).
• Coverage Area-9K: 450 Sq.Ft (41.8 m²).
• Coverage Area-12K: 750 Sq.Ft (69.7 m²).
• Coverage Area-18K: 1250 Sq.Ft (116.1 m²).
• Coverage Area-24K: 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity-9K: 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity-12K: 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity-18K: 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity-24K: 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume-9K: 335 CFM/570 m³/h.
• Maximum Air Flow Volume-12K: 360 CFM/610 m³/h.
• Maximum Air Flow Volume-18K: 500 CFM/850 m³/h.
• Maximum Air Flow Volume-24K: 741 CFM/1260 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

Package Includes:

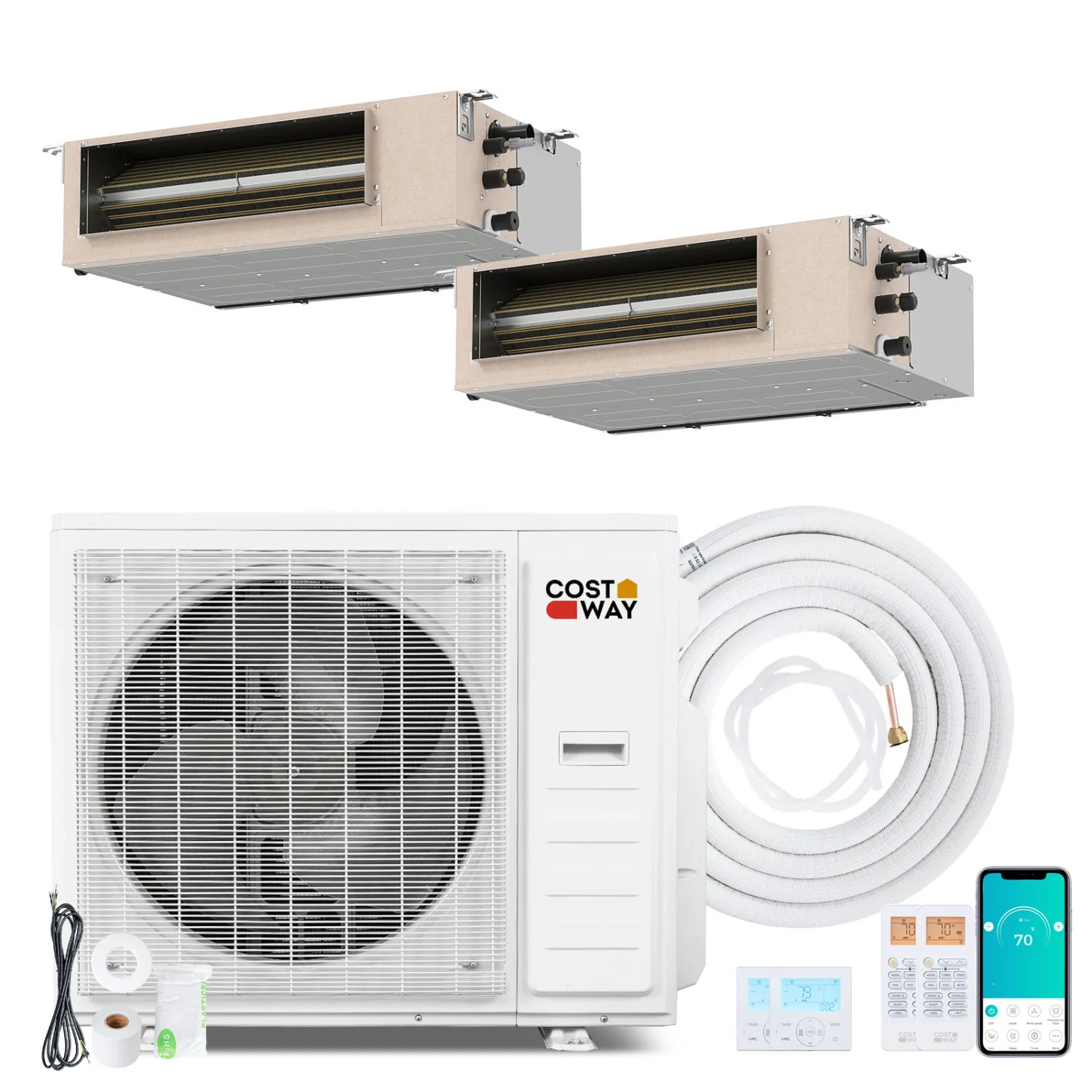

• 1 x Outdoor Unit.
• 2 x Indoor Unit.
• 2 x Copper Connection Pipe - Gas Pipe.
• 2 x Copper Connection Pipe - Liquid Pipe.
• 2 x Communication Wire.
• 2 x Drain Hose.
• 2 x Remote Control & Holder.
• 2 x Wall Sleeve.
• 4 x Wall Cap.
• 4 x Tape.
• 4 x Putty.
• 2 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.

Package Quantity: 1.
