3 Zone Mini Split AC, 38000 BTU, 20 SEER2, 9K + 9K + 12K

Experience year-round comfort with this efficient 3-zone mini split air conditioner and heat pump system. It provides powerful whole-home cooling and heating, featuring 20 SEER2 energy efficiency, inverter technology, and smart controls for customizable climate management in larger spaces.

Overview:

• Provides all-season comfort with cooling and heating for three zones in larger homes.
• Features advanced inverter technology and a 20 SEER2 rating for high energy efficiency and stable temperature control.
• Offers smart control via phone app, remote, or voice commands with Alexa and Google Assistant.
• Includes a self-clean function and removable, washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

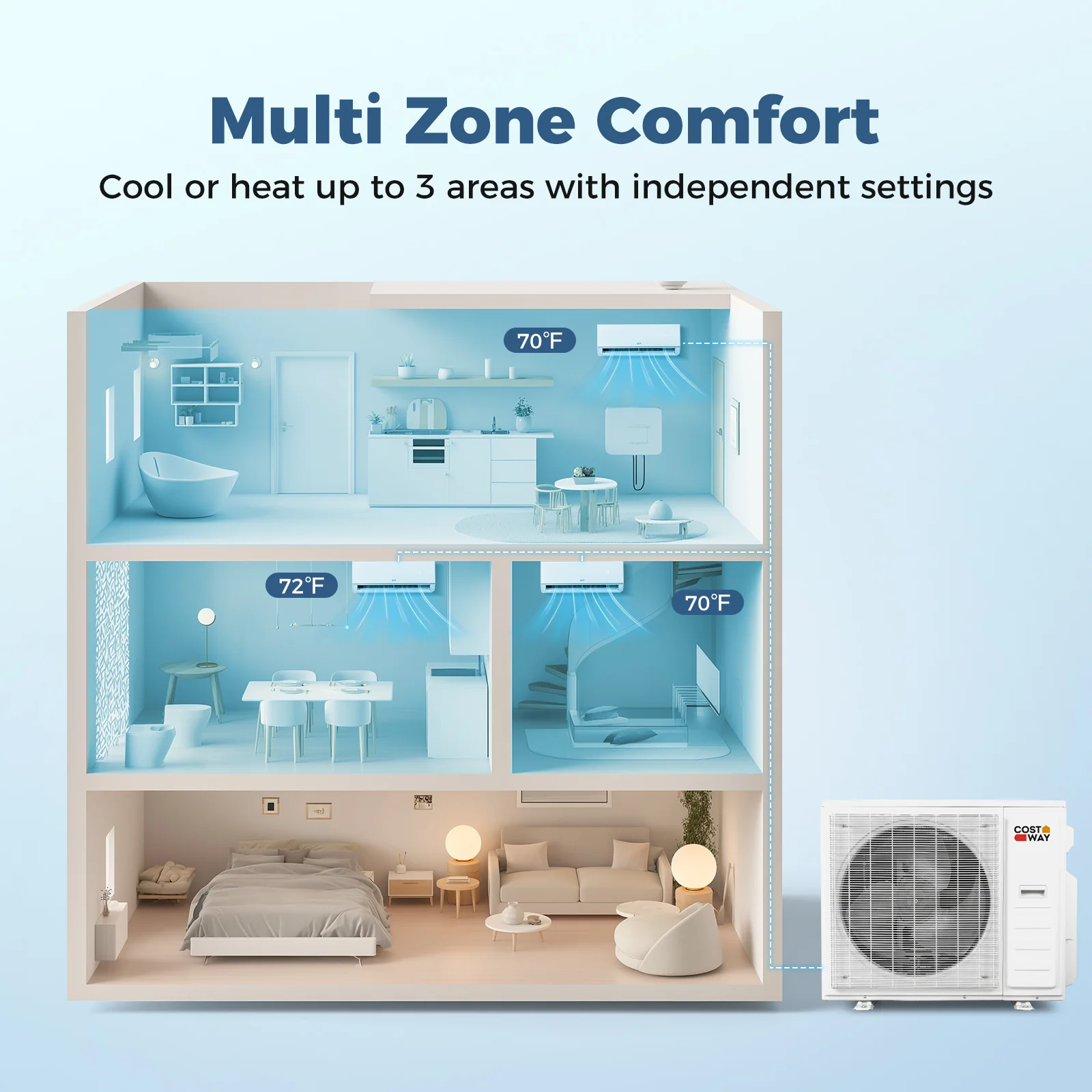

• Powerful whole-home cooling and heating for 3 zones with room-by-room temperature control.
• 20 SEER2 and inverter technology ensure high energy efficiency and reduced energy waste.

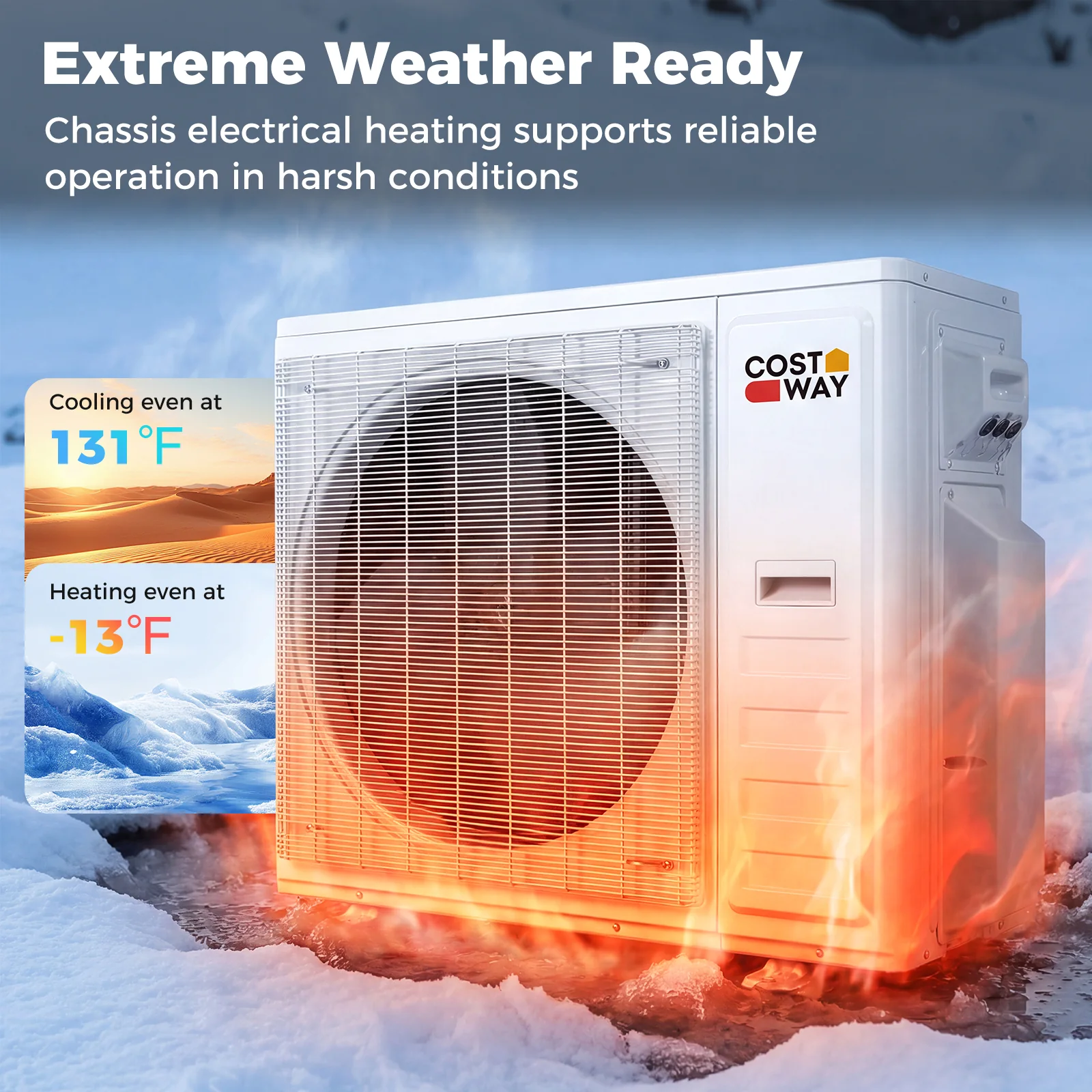

• Outdoor unit with chassis heating for reliable operation in extreme conditions, cooling up to 55℃ and heating down to -25℃.
• Choose from 7 operating modes (auto, cool, heat, dry, fan, ECO, sleep) and 8 fan speeds for customizable comfort.
• Easily control from your phone, remote, or voice commands with Alexa and Google Assistant.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation as low as 28 dB ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution with a gentle breeze.

Features:

• 3-zone 38000 BTU mini split air conditioner and heating system for room-by-room comfort in larger homes.
• Dual/tri/quad zone design allows tailored temperatures where needed.
• 4D swing spreads air more evenly for consistent climate control.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• 20 SEER2 rating provides powerful heating and cooling with energy-smart control.
• Advanced inverter technology helps reduce energy waste while keeping set temperatures stable.
• Outdoor unit equipped with chassis electrical heating for reliable operation in harsh conditions.
• Cools effectively even at 55℃ and heats efficiently down to -25℃.
• Wi-Fi enabled for smart control with Alexa and Google Assistant, plus a remote control for quick access.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 24-hour timer and child lock extend comfort to daily use.
• Operates quietly with minimal noise as low as 28 dB during operation.
• Self-clean function and washable filters make maintenance easy.
• Note: Professional licensed HVAC technician installation is recommended.

Weight & Dimensions:

• Outdoor Unit Dimensions (20K): 33.54 inches long x 13.74 inches wide x 23.7 inches high (85.19 cm x 34.90 cm x 60.20 cm).
• Outdoor Unit Dimensions (28K): 35.94 inches long x 14.76 inches wide x 26.34 inches high (91.29 cm x 37.49 cm x 66.90 cm).
• Outdoor Unit Dimensions (38K): 42.64 inches long x 19.45 inches wide x 33.78 inches high (108.31 cm x 49.40 cm x 85.80 cm).
• Net Weight of 38K Outdoor Unit: 148.8 pounds (67.5 kg).
• Net Weight of 9K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 12K Indoor Unit: 19.8 pounds (9.0 kg).
• Net Weight of 18K Indoor Unit: 20.9 pounds (9.5 kg).
• Net Weight of 24K Indoor Unit: 27.6 pounds (12.5 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K, 18K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (24K): 1/2 inch (1.27 cm).

Specifications:

• Multi Zone Combination: 3 zones for customized climate control.
• Voltage: 208/230V for standard electrical compatibility.
• Frequency: 60Hz for efficient operation.
• Temperature Setting Range: 16℃ to 31℃ (61°F to 88°F) for precise comfort adjustments.
• Refrigerant: R32 for eco-friendly cooling and heating performance.
• Indoor Unit Noise Level: As low as 28 dB for quiet operation.
• Max Remote Control Distance: 39.5 feet (12.0 meters) for convenient access.
• Coverage Area (9K): 450 square feet (41.8 square meters).
• Coverage Area (12K): 750 square feet (69.7 square meters).
• Coverage Area (18K): 1250 square feet (116.1 square meters).
• Coverage Area (24K): 1500 square feet (139.4 square meters).
• Dehumidification Capacity (9K): 66 pints per day for moisture control.
• Dehumidification Capacity (12K): 81.2 pints per day for enhanced humidity management.
• Dehumidification Capacity (18K): 111.6 pints per day for larger area dehumidifying.
• Dehumidification Capacity (24K): 131.9 pints per day for maximum moisture removal.
• Maximum Air Flow Volume (9K): 335 CFM for effective air circulation.
• Maximum Air Flow Volume (12K): 342 CFM for consistent airflow.
• Maximum Air Flow Volume (18K): 617 CFM for powerful ventilation.
• Maximum Air Flow Volume (24K): 847 CFM for high-capacity air movement.
• SEER2 (20K): 23 for superior energy efficiency.
• SEER2 (28K, 38K): 20 for high energy savings.
• HSPF2 (20K, 28K, 38K): 9.5 for efficient heating performance.

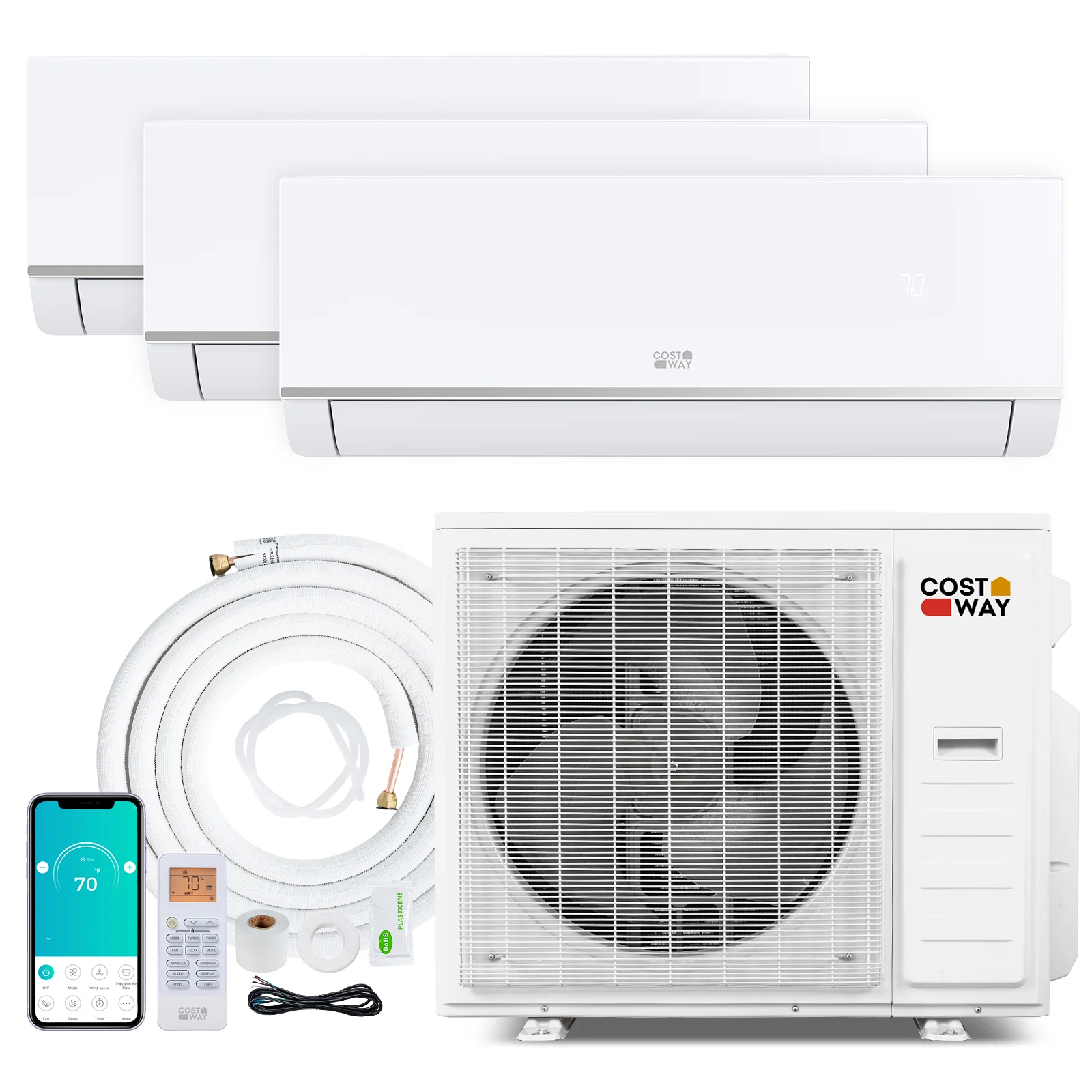

Package Includes:

• 1 x Outdoor Unit for exterior installation.
• 3 x Indoor Unit for multi-zone climate control.
• 3 x Copper Connection Pipe - Gas Pipe for refrigerant flow.
• 3 x Copper Connection Pipe - Liquid Pipe for coolant circulation.
• 3 x Communication Wire for system connectivity.
• 3 x Drain Hose for condensation removal.
• 3 x Remote Control & Holder for easy operation.
• 3 x Wall Sleeve for secure mounting.
• 6 x Wall Cap for finishing touches.
• 6 x Tape for installation sealing.
• 6 x Putty for gap filling.
• 3 x Screw Kit for assembly.
• 4 x Mounting Foot Pad for stable placement.
• 5 x User Guide for setup and operation instructions.

Package Quantity: 5 boxes.
