28000 BTU 3 Zone Mini Split AC, Heat Pump, 9K + 9K + 12K, White

Experience year-round comfort with this 3-zone 28000 BTU mini split air conditioner and heater, featuring 20 SEER2 efficiency, inverter technology, and smart controls for whole-home climate management. Ideal for larger spaces, it offers quiet operation, easy maintenance, and reliable performance in extreme temperatures.

Overview:

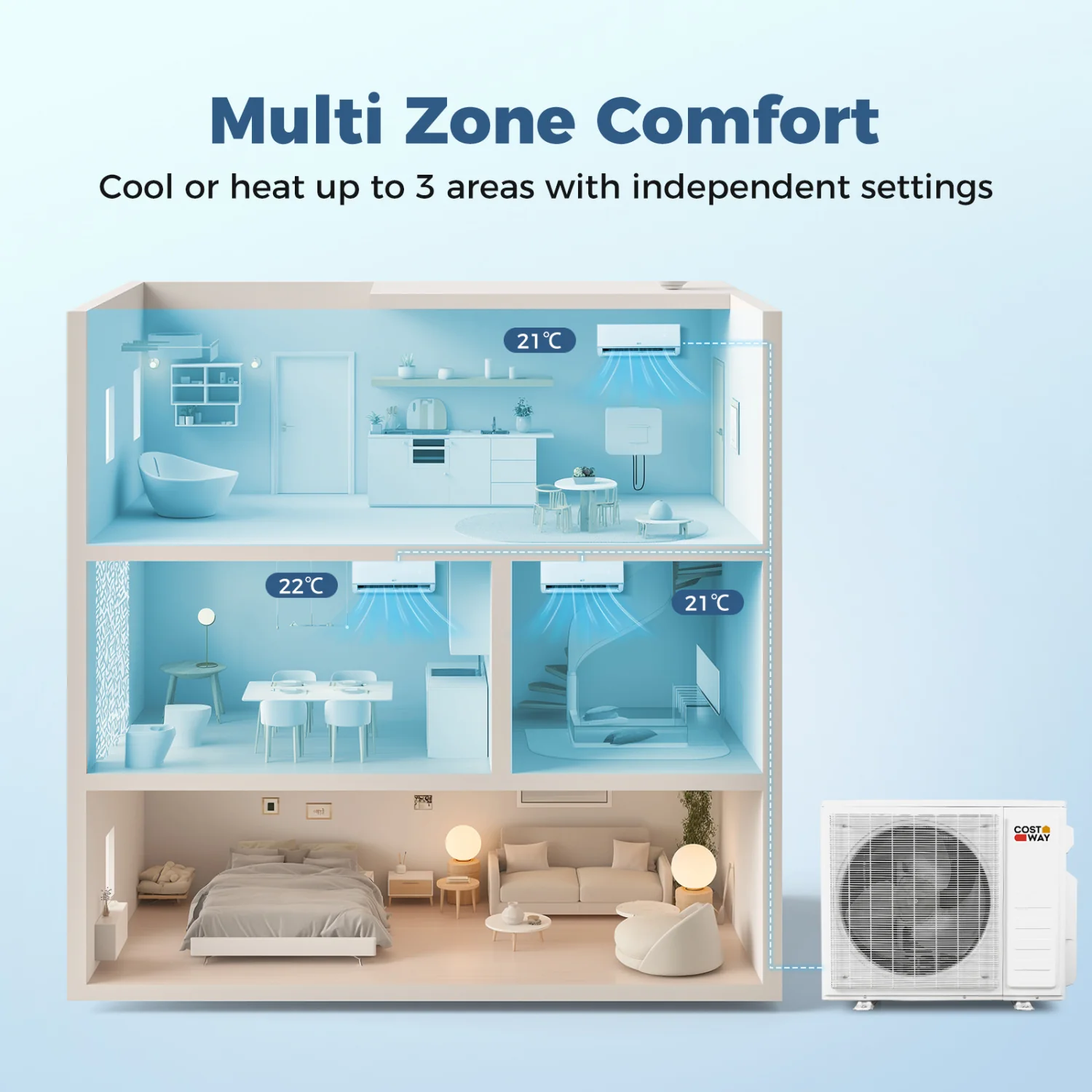

• Provides powerful cooling and heating for three zones, allowing room-by-room temperature control.
• Designed for larger homes with features like 4D auto swing and gentle airflow to prevent direct blowing.
• Includes smart control via phone, remote, or voice commands with Alexa and Google Assistant.
• Note: Professional licensed HVAC technician installation is recommended.

Highlights:

• Powerful whole-home cooling and heating for 3 zones.
• 20 SEER2 and inverter technology ensure high energy efficiency.
• Outdoor unit with chassis heating for reliable cold-weather operation.
• Choose from 7 operating modes and 8 fan speeds.
• Easily control from your phone, remote, or voice demands.
• 24-hour timer for easy daily use and smart energy saving.
• Low noise operation ensures a peaceful environment.
• Self-clean function supports fresher airflow over time.
• Removable and washable filters for simple cleaning.
• Child lock prevents accidental setting changes.
• 4D auto swing offers more even air distribution.

Features:

• 3-zone 28000 BTU mini split ac and heating system for room-by-room comfort.
• Tri-zone design lets you tailor temperatures where you need them.
• 4D swing spreads air more evenly for consistent airflow.
• Golf ball dimples design offers a gentle breeze and prevents direct blowing.
• 20 SEER2 rating provides powerful heating and cooling with energy-smart control.
• Advanced inverter technology helps reduce energy waste while keeping set temperatures stable.

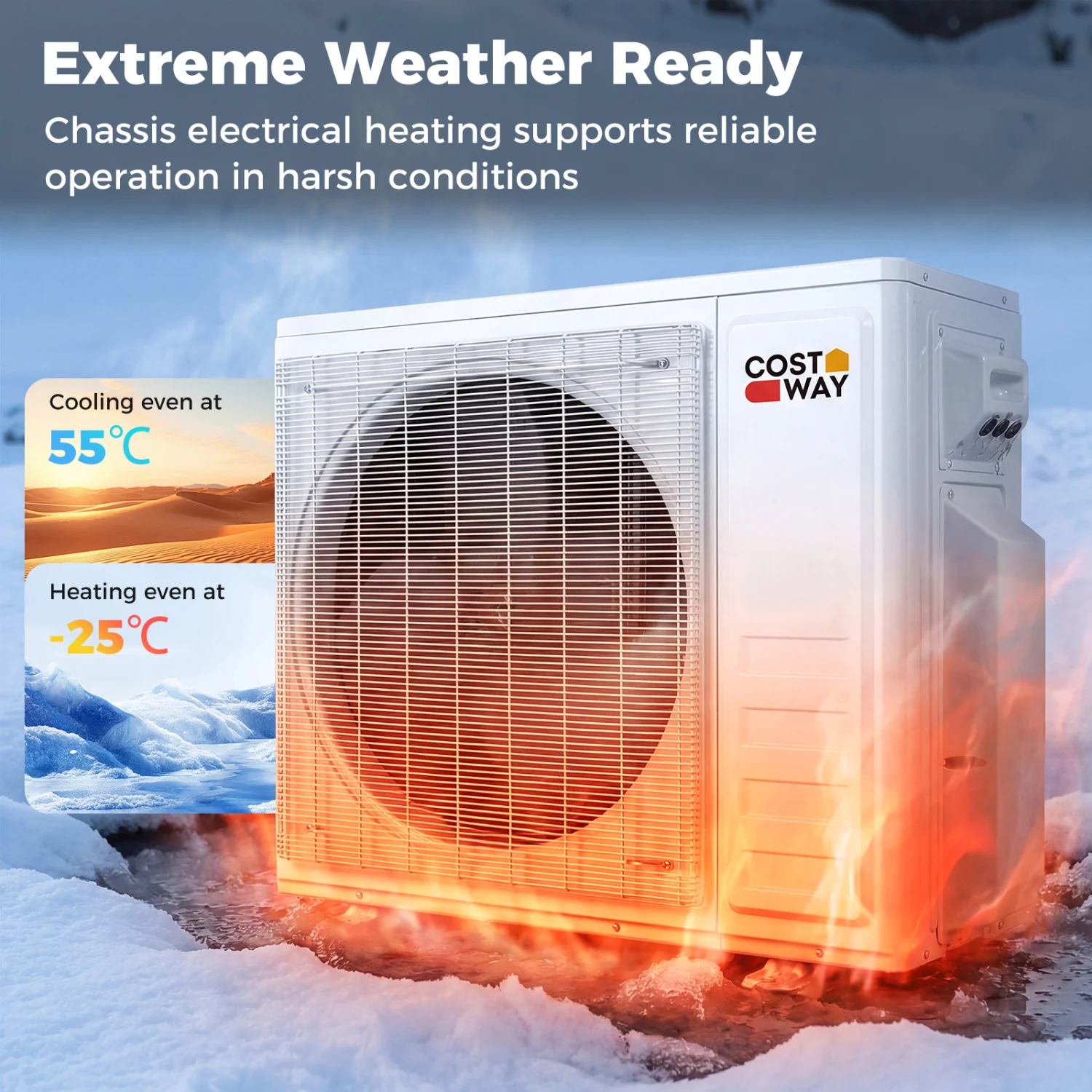

• Outdoor unit equipped with chassis electrical heating for reliable operation in harsh conditions.
• Cooling even at 55℃ and heating even at -25℃.
• WiFi enabled for smart control with Alexa and Google Assistant, plus remote control access.
• 7 modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, turbo.
• 24-hour timer and child lock for extended comfort and safety.
• Operates quietly with minimal noise as low as 28 dB during operation.
• Self-clean function and washable filters for easy maintenance.
• Note: Professional licensed HVAC technician installation is recommended.

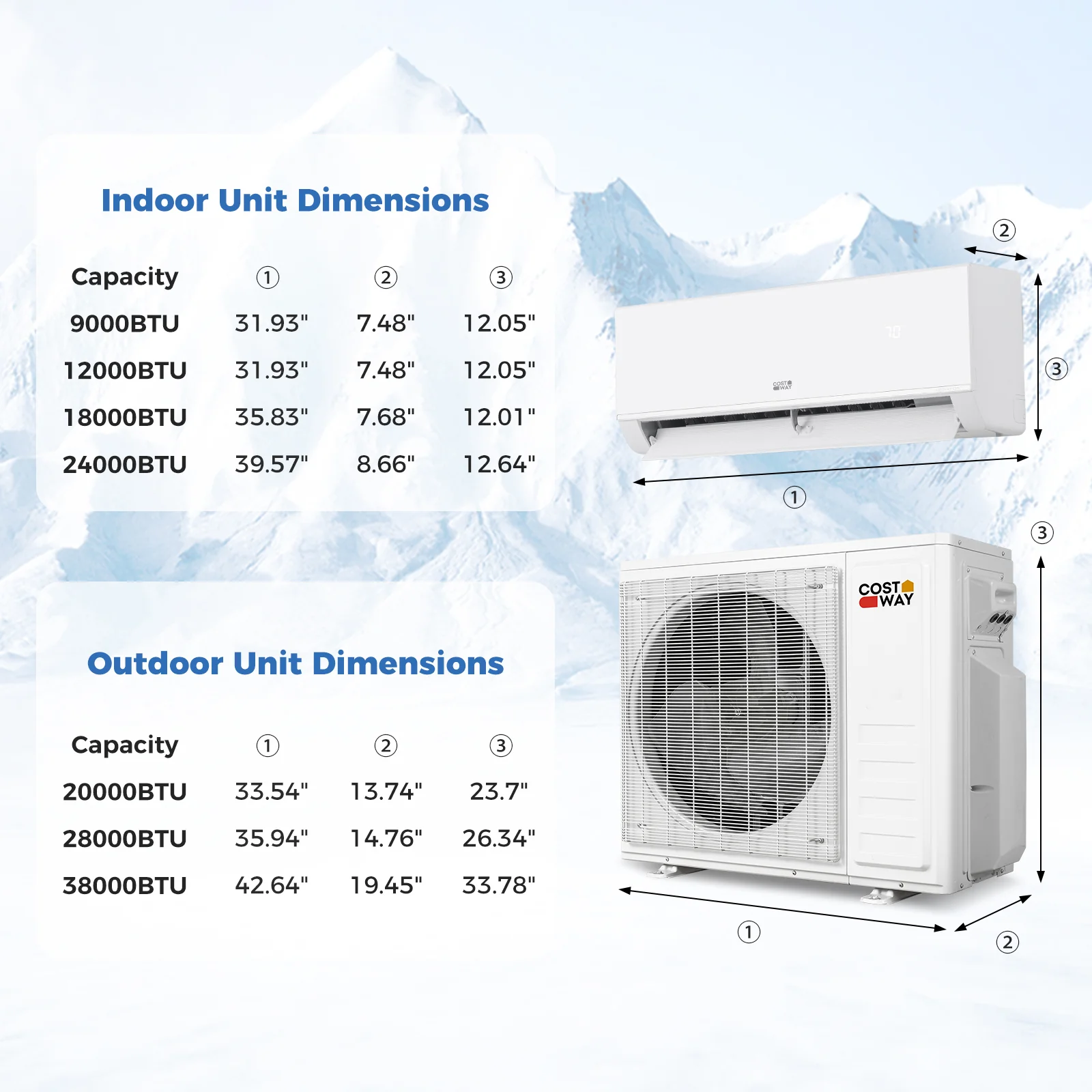

Weight & Dimensions:

• Indoor Unit Dimensions for 9K: 31.93 inches x 7.48 inches x 12.05 inches (81.10 cm x 19.00 cm x 30.61 cm).
• Indoor Unit Dimensions for 12K: 31.93 inches x 7.48 inches x 12.05 inches (81.10 cm x 19.00 cm x 30.61 cm).
• Indoor Unit Dimensions for 18K: 35.83 inches x 7.68 inches x 12.01 inches (91.01 cm x 19.51 cm x 30.51 cm).
• Indoor Unit Dimensions for 24K: 39.57 inches x 8.66 inches x 12.64 inches (100.51 cm x 22.00 cm x 32.11 cm).
• Outdoor Unit Dimensions for 20K: 33.54 inches x 13.74 inches x 23.7 inches (85.19 cm x 34.90 cm x 60.20 cm).
• Outdoor Unit Dimensions for 28K: 35.94 inches x 14.76 inches x 26.34 inches (91.29 cm x 37.49 cm x 66.90 cm).
• Outdoor Unit Dimensions for 35K: 42.64 inches x 19.45 inches x 33.78 inches (108.31 cm x 49.40 cm x 85.80 cm).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe for 9K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 12K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 18K: 3/8 inch (0.95 cm).
• Diameter of Gas Pipe for 24K: 1/2 inch (1.27 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 3.
• Voltage: 208/230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R32.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.5 feet (12.04 meters).
• Coverage Area for 9K: 450 Sq.Ft (41.81 m²).
• Coverage Area for 12K: 750 Sq.Ft (69.68 m²).
• Coverage Area for 18K: 1250 Sq.Ft (116.13 m²).
• Coverage Area for 24K: 1500 Sq.Ft (139.35 m²).
• Dehumidification Capacity for 9K: 66 Pints/Day (31.23 liters/day).
• Dehumidification Capacity for 12K: 81.2 Pints/Day (38.42 liters/day).
• Dehumidification Capacity for 18K: 111.6 Pints/Day (52.81 liters/day).
• Dehumidification Capacity for 24K: 131.9 Pints/Day (62.41 liters/day).
• Maximum Air Flow Volume for 9K: 335 CFM/554 m³/h.
• Maximum Air Flow Volume for 12K: 342 CFM/554 m³/h.
• Maximum Air Flow Volume for 18K: 617 CFM/554 m³/h.
• Maximum Air Flow Volume for 24K: 847 CFM/554 m³/h.
• 20K SEER2: 23.
• 28K SEER2: 20.
• 38K SEER2: 20.
• 20K HSPF2: 9.5.
• 28K HSPF2: 9.5.
• 38K HSPF2: 9.5.

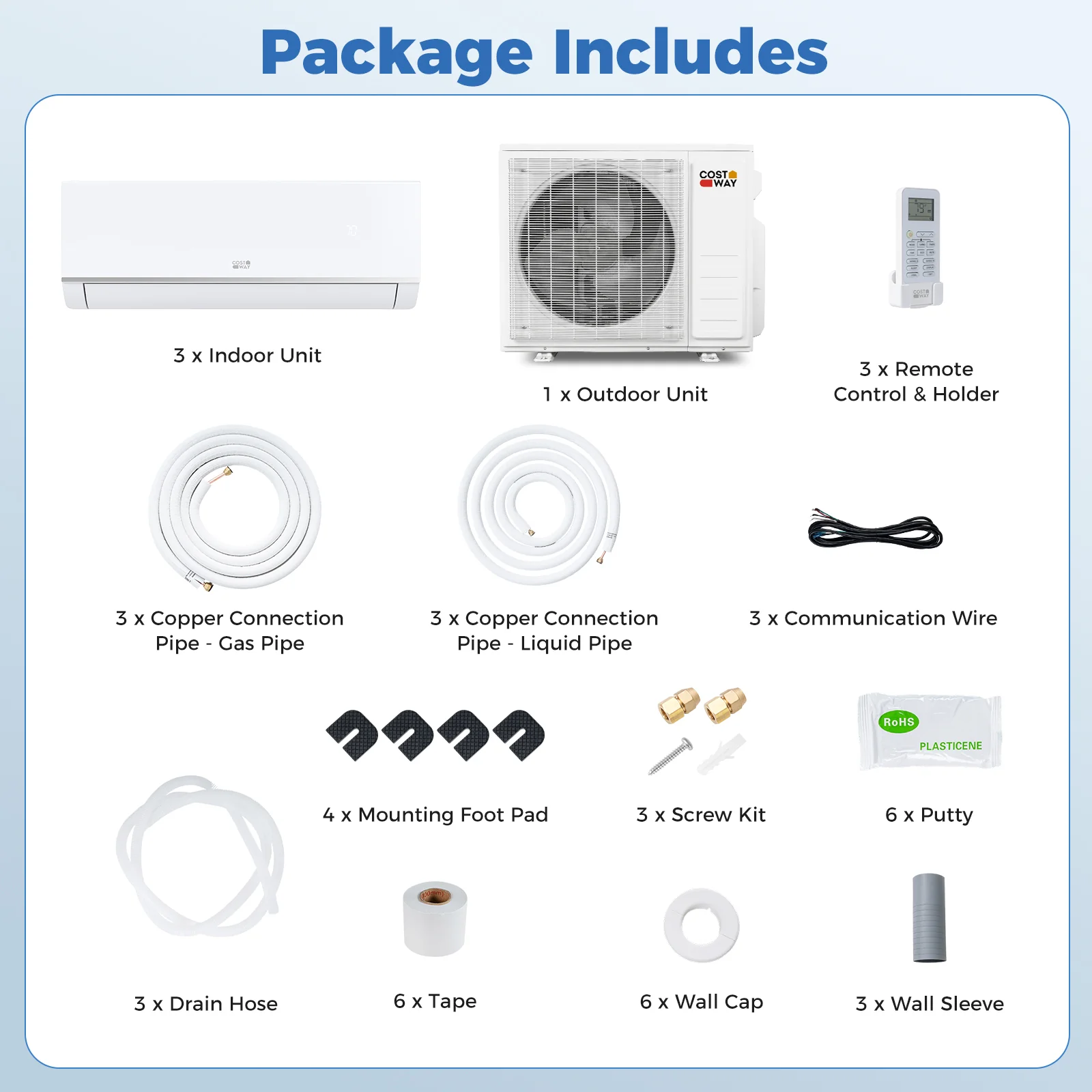

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control and Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 5 x User Guide.

Package Quantity: 5 boxes.
