27000 BTU 3 Zone 24 SEER2 Mini Split AC, Heat Pump, 9K + 9K + 18K, White

Enjoy year-round comfort with this 27000 BTU 3-zone mini split air conditioner and heat pump system. It provides efficient cooling and heating for multiple rooms, featuring smart WiFi control, Energy Star certification, and quiet operation for peaceful home environments.

Overview:

• Provides all-season comfort with fast cooling and heating for three independent zones.
• Ideal for larger homes, offering room-by-room temperature control and even air distribution.
• Features smart control via app, remote, or voice, with multiple modes and fan speeds for personalized comfort.
• Designed for energy efficiency and reliable performance in harsh weather conditions.
• Note: Professional installation is recommended for optimal performance and safety.

Highlights:

• Fast cooling and heating for 3 independent zones.
• High energy efficiency with inverter technology and R454B refrigerant.
• Smart control via smartphone app, remote, or voice commands with Alexa and Google Assistant compatibility.
• Quiet operation with sound levels as low as 30 dB, perfect for bedrooms and living areas.
• Energy Star certified for reduced energy consumption and lower utility bills.
• Self-clean function and washable filter for easier maintenance and cleaner air.
• Child lock feature to prevent accidental setting changes.
• 24-hour timer for convenient scheduling and energy savings.

Features:

• 3-zone climate control for independent temperature adjustment in multiple rooms.
• 7 operating modes: auto, cool, heat, dry, fan, ECO, and sleep.
• 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• 4D auto swing for even air distribution throughout the space.
• WiFi-enabled for smart control via smartphone app.
• Compatible with Alexa and Google Assistant for voice command operation.
• Includes a remote control for manual adjustments.
• Sleep mode for quiet operation during nighttime use.
• Screen off function to reduce light disturbance.
• 24-hour timer for automated scheduling.
• Child lock to prevent unauthorized setting changes.
• Energy-efficient performance with inverter technology.
• Uses R454B refrigerant for lower global warming potential.

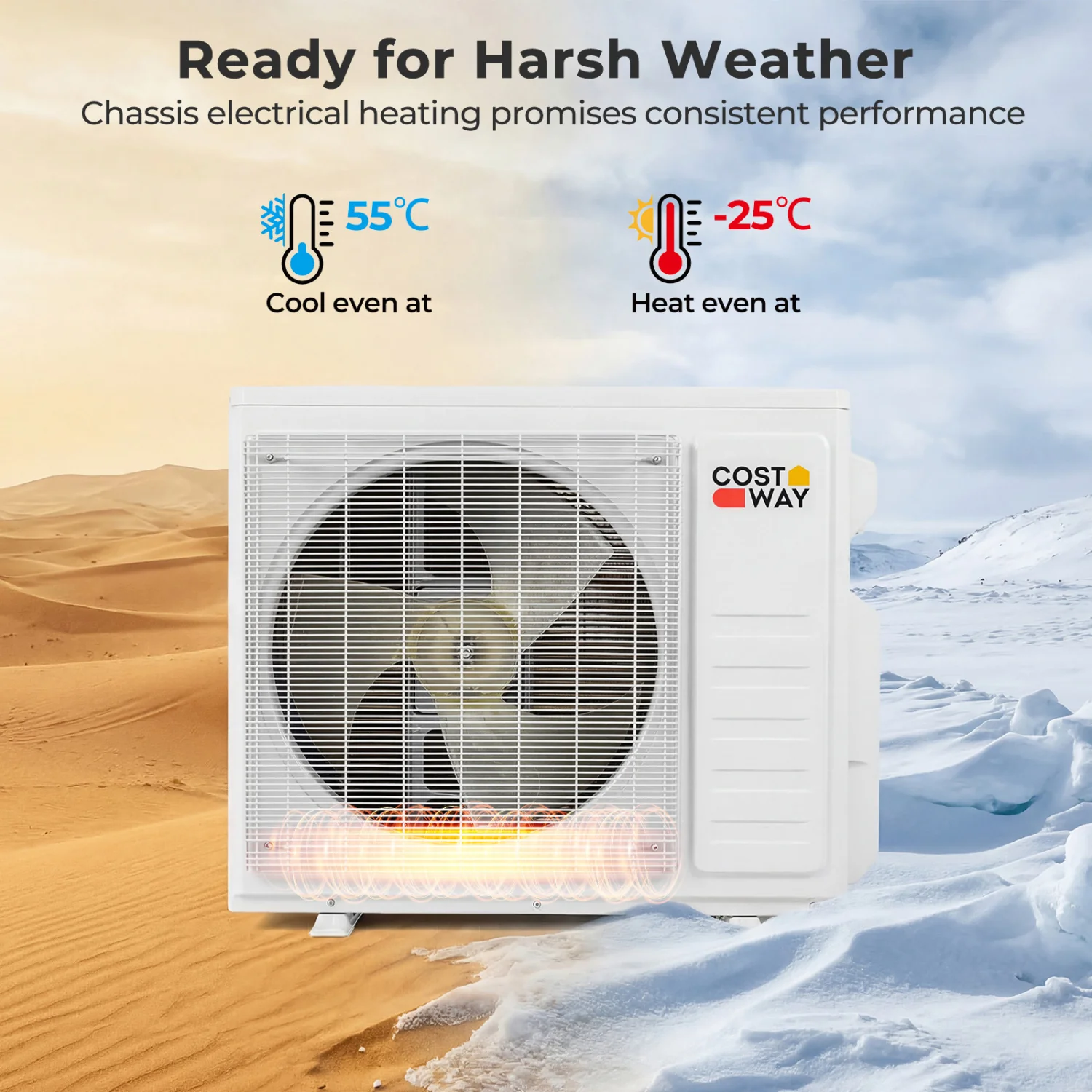

• Chassis electrical heating system for consistent performance in cold weather.
• Effective cooling in ambient temperatures up to 55°C.
• Reliable heating down to -25°C.
• Quiet operation with indoor unit noise levels as low as 30 dB.
• Self-clean function to maintain fresher airflow.
• Removable and washable filter for easy cleaning.
• Note: Professional installation by a technician is recommended.

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 32.28" x 7.68" x 12.05" (82 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (12K): 36.22" x 7.68" x 12.05" (92 cm x 19.5 cm x 30.6 cm).
• Indoor Unit Dimensions (18K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Indoor Unit Dimensions (24K): 43.19" x 8.74" x 13.07" (109.7 cm x 22.2 cm x 33.2 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of Indoor Unit (9K): 20.7 lbs (9.4 kg).
• Net Weight of Indoor Unit (12K): 24.3 lbs (11 kg).
• Net Weight of Indoor Unit (18K): 30.9 lbs (14 kg).
• Net Weight of Indoor Unit (24K): 30.9 lbs (14 kg).
• Net Weight of Outdoor Unit (18K): 92.6 lbs (42 kg).
• Net Weight of Outdoor Unit (27K): 119 lbs (54 kg).
• Net Weight of Outdoor Unit (35K): 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled steel sheet, copper, aluminum.
• Multi-zone combination: 3 zones.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature setting range: 16°C to 31°C (61°F to 88°F).
• Refrigerant: R454B.
• Indoor unit noise level: 30 dB.
• Maximum remote control distance: 39.5 ft (12 m).
• Coverage area (9K): 450 sq.ft (41.8 m²).
• Coverage area (12K): 750 sq.ft (69.7 m²).
• Coverage area (18K): 1250 sq.ft (116.1 m²).
• Coverage area (24K): 1500 sq.ft (139.4 m²).
• Dehumidification capacity (9K): 55.8 pints/day (26.5 liters/day).
• Dehumidification capacity (12K): 81.2 pints/day (38.6 liters/day).
• Dehumidification capacity (18K): 111.6 pints/day (53 liters/day).
• Dehumidification capacity (24K): 131.9 pints/day (62.6 liters/day).
• Maximum air flow volume (9K): 326 CFM (554 m³/h).
• Maximum air flow volume (12K): 500 CFM (850 m³/h).
• Maximum air flow volume (18K): 735 CFM (1249 m³/h).
• Maximum air flow volume (24K): 735 CFM (1249 m³/h).
• SEER2 rating (18K): 24.
• SEER2 rating (27K): 24.
• SEER2 rating (35K): 22.5.
• HSPF2 rating (18K): 10.5.
• HSPF2 rating (27K): 10.5.
• HSPF2 rating (35K): 10.
• Note: Professional installation is recommended for optimal performance and safety.

Package Includes:

• 1 x outdoor unit.
• 3 x indoor unit.
• 3 x copper connection pipe - gas pipe.
• 3 x copper connection pipe - liquid pipe.
• 3 x communication wire.
• 3 x drain hose.
• 3 x remote control and holder.
• 3 x wall sleeve.
• 6 x wall cap.
• 6 x tape.
• 6 x putty.
• 3 x screw kit.
• 4 x mounting foot pad.
• 7 x user guide.

Package quantity: 1.
