27000 BTU 3 Zone 24 SEER2 Ducted Mini Split, 9K + 9K + 18K, White

Experience discreet and efficient climate control with this 3-zone 27000 BTU concealed ducted mini split system. Featuring inverter technology and R454B refrigerant, it delivers powerful heating and cooling across multiple rooms while saving energy. Enjoy smart controls, quiet operation, and versatile modes for year-round comfort in homes and light commercial spaces.

Overview:

• Provides powerful and balanced heating and cooling across 3 zones for optimal comfort.
• Designed for homes, offices, and light commercial spaces with a ducted, discreet installation.
• Features advanced inverter technology and R454B refrigerant for efficient, responsible operation.
• Offers versatile control options including remote, app, voice commands, and wall thermostat.
• Note: Professional installation is required.

Highlights:

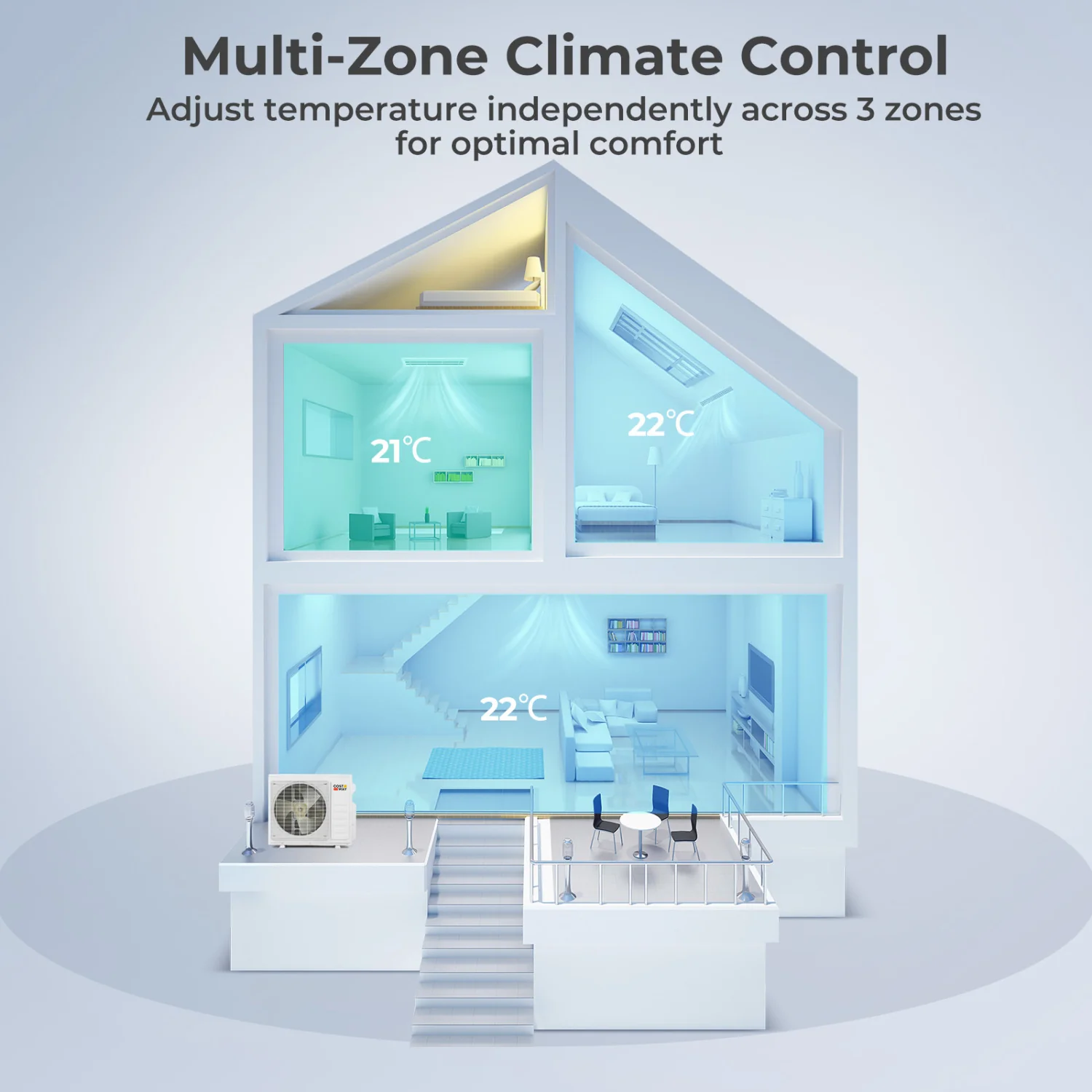

• Adjust temperature independently across 3 zones for personalized comfort.
• Inverter technology maintains steadier temperatures with smarter energy use.
• R454B refrigerant supports more responsible, forward-looking operation.
• Built-in versatility with 7 modes and 8 fan speeds for all-season use.
• Enjoy peaceful sleep with sleep mode and screen off function.
• Effortless convenience with smart control options and wifi connectivity.
• Chassis electrical heating ensures reliable performance in colder conditions.
• 4D auto swing for balanced and even air distribution.
• Ducted design keeps your space neat and discreet.
• Self-clean function makes maintenance easy.
• 24-hour timer for set-and-forget scheduling.
• Child lock helps prevent unwanted changes.

Features:

• Multi-zone climate control with 27000 BTU capacity for heating and cooling across 3 zones.
• Advanced inverter technology maintains steady temperatures with less energy waste.
• R454B refrigerant for efficient and environmentally responsible operation.
• 24 SEER2 rating for significant energy savings.
• Chassis electrical heating ensures reliable operation in tough weather with -25℃ low ambient heating and 55℃ high ambient cooling.
• Wifi enabled for smart control via app, remote, wall thermostat, or voice commands (compatible with Alexa and Google Assistant).
• 7 modes: auto, cool, heat, dry, fan, ECO, sleep.
• 8 fan speeds for precise comfort adjustment.
• 4D auto swing improves room coverage and air distribution.
• Self-clean function helps keep air paths fresh over time.
• 24-hour timer allows for scheduled operation.
• Child lock keeps settings secure from unwanted changes.
• Quiet operation with indoor unit noise levels as low as 28 dB.
• Ideal for household and light commercial use, including living room, bedroom, office, restaurant, and more.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit Dimensions (9K): 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (12K): 27.56" x 17.8" x 7.87" (70 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (18K): 36.22" x 17.8" x 7.87" (92 cm x 45.2 cm x 20 cm).
• Indoor Unit Dimensions (24K): 43.31" x 17.8" x 7.87" (110 cm x 45.2 cm x 20 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 33.1 lbs (15 kg).
• Net Weight of 12K Indoor Unit: 33.1 lbs (15 kg).
• Net Weight of 18K Indoor Unit: 39.7 lbs (18 kg).
• Net Weight of 24K Indoor Unit: 50.7 lbs (23 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).
• Diameter of Gas Pipe (24K): 5/8" (1.59 cm).

Specifications:

• Color: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 3.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16℃~31℃.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 28 dB.
• Max Remote Control Distance: 39.2 ft (12 m).
• Coverage Area (9K): 450 Sq.Ft (41.8 m²).
• Coverage Area (12K): 750 Sq.Ft (69.7 m²).
• Coverage Area (18K): 1250 Sq.Ft (116.1 m²).
• Coverage Area (24K): 1500 Sq.Ft (139.4 m²).
• Dehumidification Capacity (9K): 55.8 Pints/Day (26.4 L/Day).
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 L/Day).
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 L/Day).
• Dehumidification Capacity (24K): 131.9 Pints/Day (62.4 L/Day).
• Maximum Air Flow Volume (9K): 335 CFM/570 m³/h.
• Maximum Air Flow Volume (12K): 360 CFM/610 m³/h.
• Maximum Air Flow Volume (18K): 500 CFM/850 m³/h.
• Maximum Air Flow Volume (24K): 741 CFM/1260 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

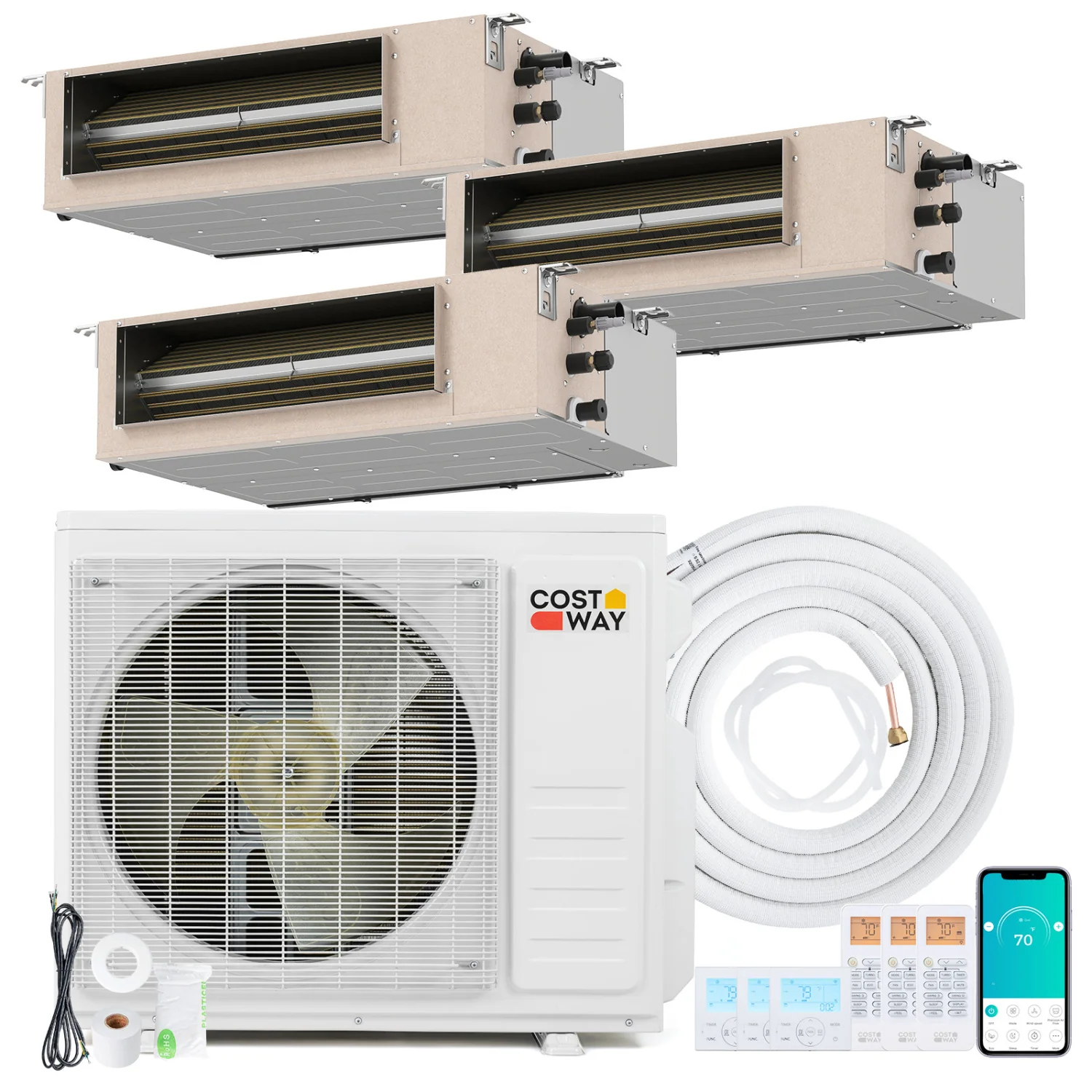

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 2 x Drain Hose.
• 3 x Remote Control & Holder.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 7 x User Guide.

Package Quantity: 1
