27000 BTU 3 Zone 24 SEER2 Ceiling Cassette Mini Split AC, White

Experience flexible comfort with this 3-zone 27000 BTU ceiling cassette mini split AC system, offering independent temperature control, energy-efficient inverter technology, and smart connectivity for year-round climate management in homes, offices, and light commercial spaces.

Overview:

• Provides independent temperature control in 3 areas for personalized comfort.
• Ideal for homes, offices, meeting rooms, and light commercial spaces like restaurants and retail stores.
• Features a ceiling-mounted design for a clean, built-in look that saves wall space.
• Engineered to operate in harsh conditions, cooling at up to 55°C and heating down to -25°C.
• Note: Professional installation is required.

Highlights:

• Enjoy independent temperature control in 3 areas.
• Inverter technology provides outstanding energy efficiency.
• R454B refrigerant supports a more future-friendly approach.
• Stay comfortable year-round with 7 modes and 8 fan speeds.
• Control your comfort via the app, voice, remote, or wall thermostat.
• Chassis electrical heating prevents freezing in colder weather.
• Versatile application for homes, offices, or commercial spaces.
• Ceiling cassette creates a clean and built-in look.
• 360° airflow spreads air evenly across the room.
• 24-hour timer for scheduled temperature changes.
• Self-clean function supports fresher operation.
• Whisper quiet operation as low as 32 dB.
• Child lock adds peace of mind for families.

Features:

• Provides individual temperature adjustment across 3 zones.
• Ceiling-mounted design saves wall space and spreads air evenly.
• Engineered to keep working in harsh conditions, cooling even at 55°C and heating even at -25°C.
• Built-in chassis electrical heating system.
• Rated at 24 SEER2 for lower energy consumption.
• Utilizes R454B refrigerant with a lower global warming potential.
• Incorporates inverter technology to maintain stable temperatures while effectively reducing energy costs.
• Wi-Fi enabled for app control plus voice control, remote, and wall thermostat support.
• Choose from 7 modes: auto, cool, heat, dry, fan, Eco, and sleep.
• Fine-tune airflow with 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for schedules.
• Runs as low as 32 dB for peaceful sleep and focused work.
• 8-way 360° airflow reaches more of the room for fewer hot and cold spots.
• Self-clean function helps keep the interior fresher and supports long-term performance.
• Outdoor unit is compatible with various types of indoor units, including ductless wall mounted AC, ductless ceiling cassette, and concealed ducted AC.
• Note: Professional installation is required.

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59" x 25.59" x 11.85" (65 cm x 65 cm x 30.1 cm).
• Outdoor Unit Dimensions (18K): 36.5" x 14.96" x 27.52" (92.7 cm x 38 cm x 69.9 cm).
• Outdoor Unit Dimensions (27K): 38.5" x 16.57" x 31.61" (97.8 cm x 42.1 cm x 80.3 cm).
• Outdoor Unit Dimensions (35K): 42.28" x 18.43" x 33.58" (107.4 cm x 46.8 cm x 85.3 cm).
• Net Weight of 9K Indoor Unit: 31.9 lbs (14.5 kg).
• Net Weight of 12K Indoor Unit: 31.9 lbs (14.5 kg).
• Net Weight of 18K Indoor Unit: 31.9 lbs (14.5 kg).
• Net Weight of 18K Outdoor Unit: 92.6 lbs (42 kg).
• Net Weight of 27K Outdoor Unit: 119 lbs (54 kg).
• Net Weight of 35K Outdoor Unit: 145.5 lbs (66 kg).
• Diameter of Liquid Pipe: 1/4" (0.64 cm).
• Diameter of Gas Pipe (9K, 12K): 3/8" (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2" (1.27 cm).

Specifications:

• Colour: White.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum.
• Multi Zone Combination: 3.
• Voltage: 208-230V.
• Frequency: 60Hz.
• Temperature Setting Range: 16°C to 31°C.
• Refrigerant: R454B.
• Indoor Unit Noise Level: 32 dB.
• Max Remote Control Distance: 39.2 ft (11.95 m).
• Coverage Area (9K): 450 Sq.Ft (41.8 m²).
• Coverage Area (12K): 750 Sq.Ft (69.7 m²).
• Coverage Area (18K): 1250 Sq.Ft (116.1 m²).
• Dehumidification Capacity (9K): 55.8 Pints/Day (26.4 liters/day).
• Dehumidification Capacity (12K): 81.2 Pints/Day (38.4 liters/day).
• Dehumidification Capacity (18K): 111.6 Pints/Day (52.8 liters/day).
• Maximum Air Flow Volume (9K): 194 CFM/329 m³/h.
• Maximum Air Flow Volume (12K): 212 CFM/360 m³/h.
• Maximum Air Flow Volume (18K): 260 CFM/441 m³/h.
• 18K SEER2: 24.
• 27K SEER2: 24.
• 35K SEER2: 22.5.
• 18K HSPF2: 10.5.
• 27K HSPF2: 10.5.
• 35K HSPF2: 10.

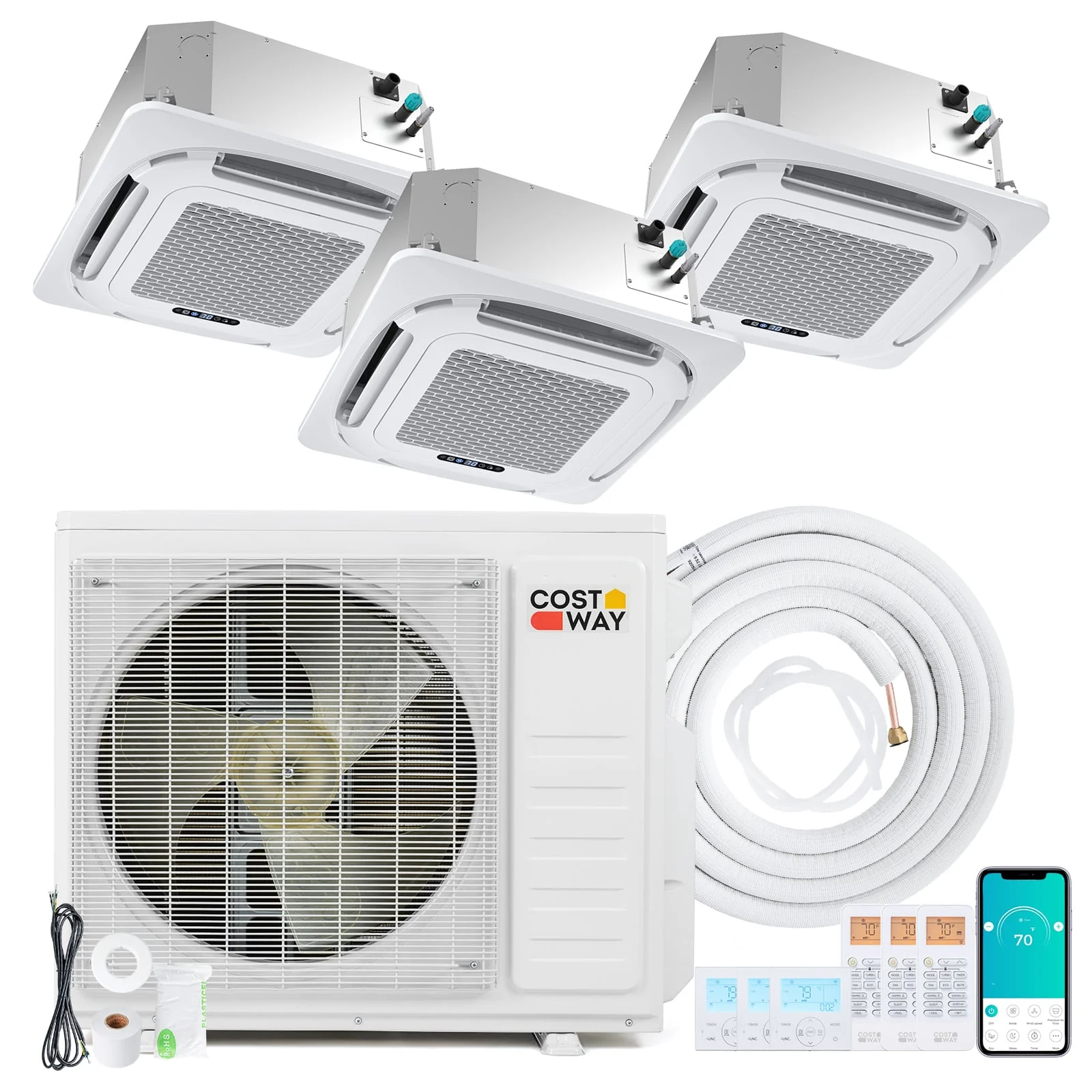

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control & Holder.
• 3 x Wall Thermostat.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 7 x User Guide.

Package Quantity: 1
