23000 BTU Mini Split Air Conditioner And Heater Pump System, White

Experience ultimate temperature control with this 23000 BTU mini split AC, offering powerful cooling and heating for rooms up to 1500 sq.ft. Its energy-efficient inverter technology, smart Wi-Fi control, and versatile 7-mode operation ensure year-round comfort and convenience.

Overview:

• Provides powerful cooling and heating for large spaces up to 1500 square feet.
• Features a multifunctional design with cooling, heating, drying, and fan modes.
• Includes smart control via smartphone, voice, or remote for tailored comfort.
• Offers quiet operation with sleep mode and easy maintenance with washable filters.
• Note: Professional installation by a licensed HVAC technician is required.

Highlights:

• Multifunctional design includes cooling, heating, drying, and fan.
• Powerful cooling and heating for rooms up to 1500 sq.ft.
• Effortless control via your smartphone, voice, or remote control.
• 7 fan speeds: auto, low, low-mid, mid, mid-high, high, turbo.
• Inverter technology ensures energy-efficient operation.
• Removable and washable filter for hassle-free maintenance.
• Humanized design such as child lock and self-cleaning.
• R32 refrigerant boasts a lower environmental impact.
• Chassis heating maintains long-lasting performance.
• Set schedules easily with the 24H on/off timer.
• 4D auto swing to prevent direct blowing.
• Quiet sleep mode ensures a restful night.
• Complies with ETL and AHRI standards.

Features:

• Powerful cooling and heating for large spaces up to 1500 square feet.
• Advanced chassis heating prevents freezing and maintains outdoor unit operation.
• Cools even at 50°C/122°F and heats even at -15°C/5°F.
• High energy efficiency with inverter technology adjusting compressor speed.
• Uses R32 refrigerant for an energy-saving and green cooling solution.
• Compliant with ETL and AHRI standards.
• Smart Wi-Fi control via smartphone and voice, compatible with Alexa or Google Assistant.
• Includes a handy remote control with digital display for easy operation.
• Wide temperature range with 7 operating modes: auto, cool, heat, dry, fan, sleep, ECO.
• 7 fan speeds: auto, low, low-mid, mid, mid-high, high, turbo.
• 4D auto swing, child lock, I Feel, and Health features for added convenience.
• Sleep mode with ultra-quiet operation and screen-off function for a peaceful environment.
• 133°F/56°C self-cleaning and washable filter for easy maintenance and cleaner air.
• Note: Professional installation by a licensed HVAC technician is required.

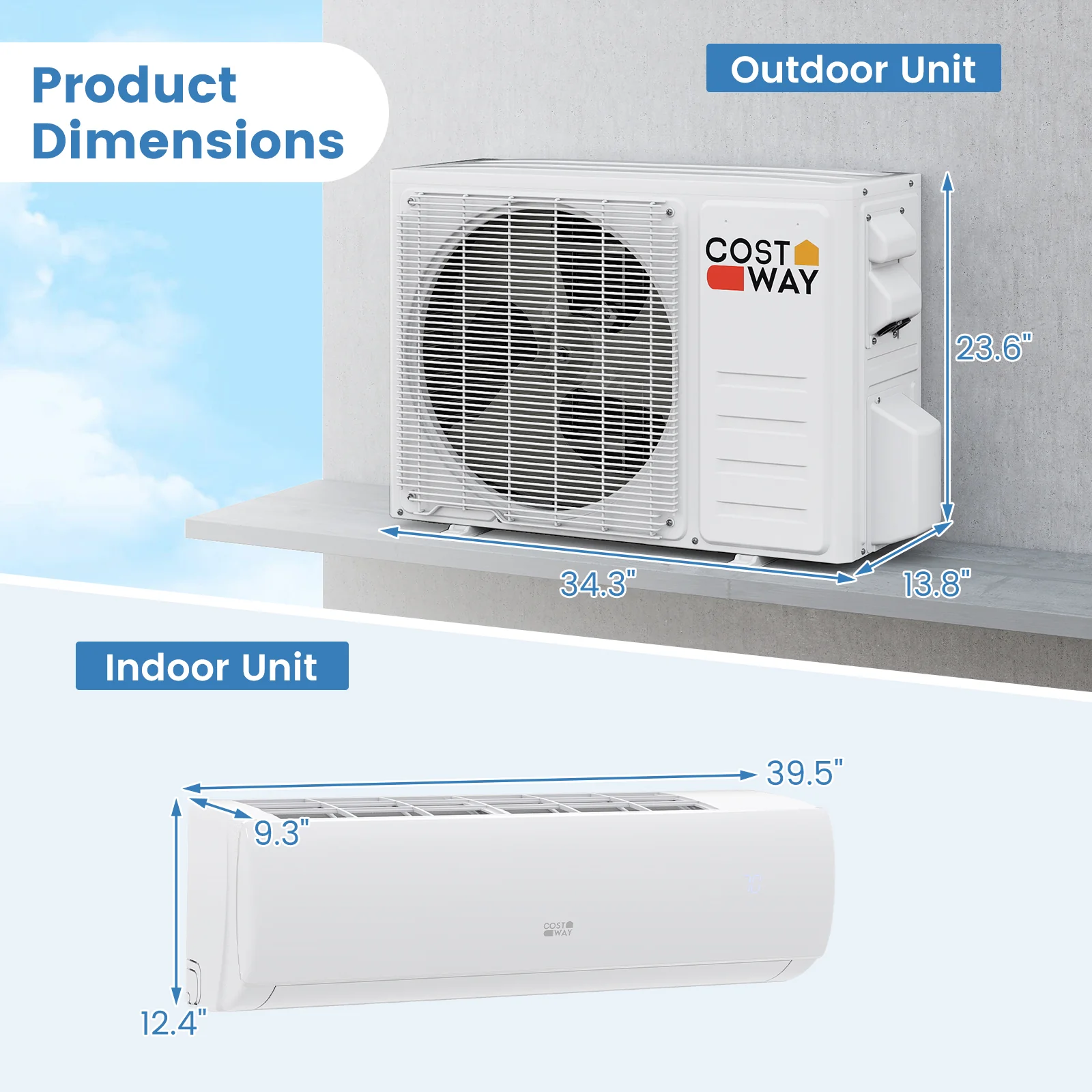

Weight & Dimensions:

• Indoor Unit Dimensions: 39.5" x 12.4" x 9.3" (100.3 cm x 31.5 cm x 23.6 cm).
• Outdoor Unit Dimensions: 34.3" x 13.8" x 23.6" (87.1 cm x 35.1 cm x 59.9 cm).
• Diameter of Air Pipe: 1/2" (12.7 mm).
• Diameter of Liquid Pipe: 1/4" (6.35 mm).
• Diameter of Drain Pipe: 0.67" (17 mm).
• Net Weight of Indoor Unit: 29 lbs (13.2 kg).
• Net Weight of Outdoor Unit: 74.5 lbs (33.8 kg).

Specifications:

• Color: White.
• Material: Metal, Aluminum, Copper, AS.
• Max Remote Control Distance: 39 ft (11.9 m).
• Min. Circuit Ampacity: 17A.
• Voltage: 208/230V~/60Hz.
• Cooling Capacity: 23000 BTU.
• Heating Capacity: 22400 BTU.
• Cooling Power: 2365W.
• Heating Power: 1900W.
• Coverage Area: 1500 Sq.Ft/139 m².
• Air Flow Volume: 676 CFM.
• Dehumidifying Capacity: 122 Pints/Day (57.6 L/Day).
• Temperature Setting Range: 16°C~31°C (61°F~88°F).
• Refrigerant: R32.
• SEER2: 17.
• HSPF2: 9.5.
• Indoor Noise Level: 37 dB.
• Outdoor Noise Level: 56 dB.

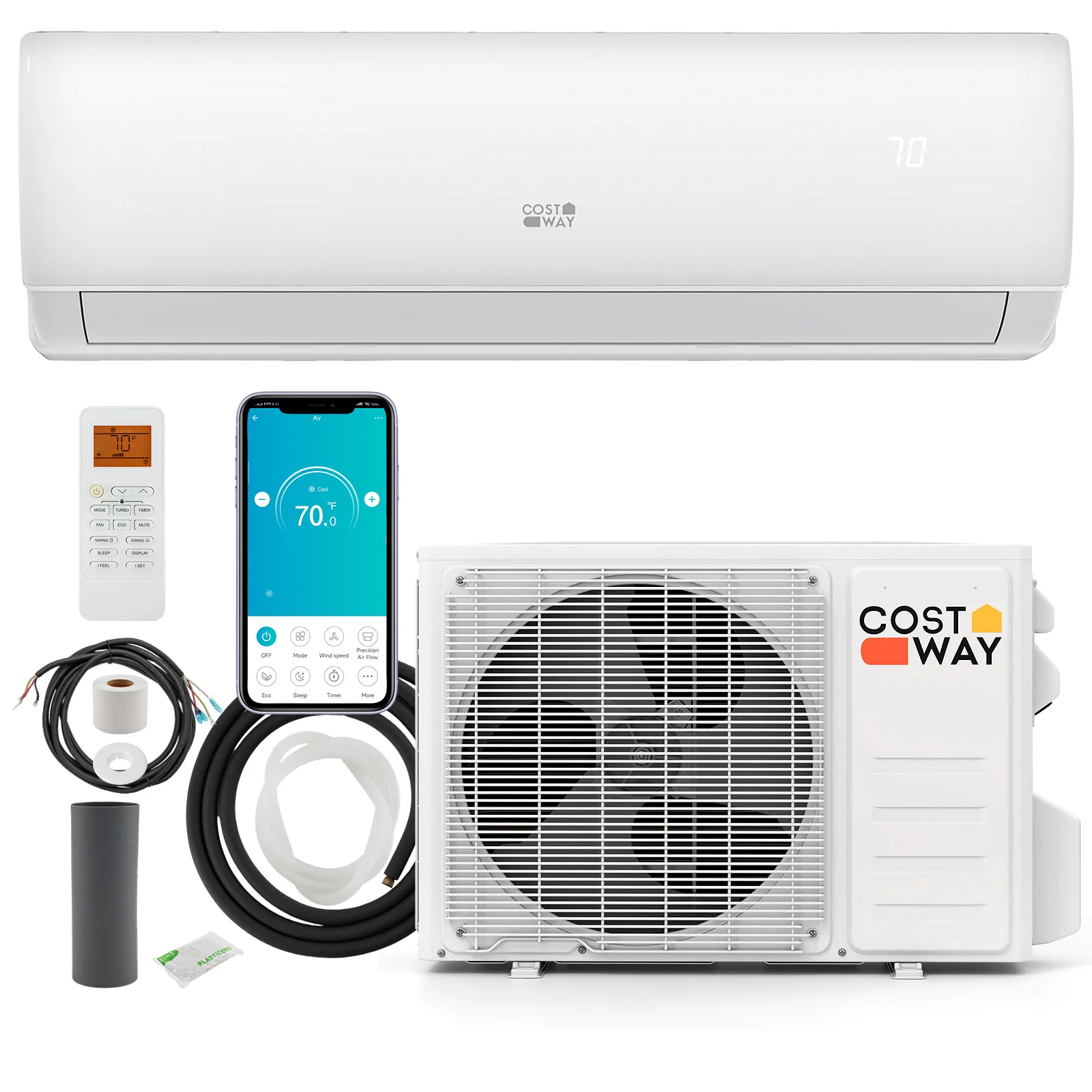

Package Includes:

• 1 x Indoor Unit.
• 1 x Outdoor Unit.
• 1 x 13 ft Copper Connection Pipe - Air Pipe.
• 1 x 13 ft Copper Connection Pipe - Liquid Pipe.
• 1 x 5.8 m/19 ft Communication Wire.
• 1 x 2 m/6.5 ft Drain Hose.
• 1 x Remote Control.
• 1 x Wall Bracket for Remote Control.
• 1 x Wall Sleeve.
• 1 x Wall Cap.
• 1 x Drain Elbow.
• 1 x Tape.
• 1 x Putty.
• 1 x User Guide.

Package Quantity: 2 boxes.
