23000 BTU Mini Split AC, 22 SEER2 230V Wifi Inverter Heat Pump 1500 Sq Ft

Experience year-round comfort with this 23000 BTU mini split air conditioner featuring a SEER2 22 rating for high efficiency, providing powerful cooling and heating for spaces up to 1,500 sq. ft. With smart app and voice control via TUYA, Alexa, and Google Assistant, you can easily manage your home's climate. The unit offers whisper-quiet operation as low as 30 dB in sleep mode, multi-mode flexibility, and a self-cleaning function for fresh air. This ductless mini split comes with a complete installation kit including a 9.8ft copper line set and 12.8ft interconnecting cables. Professional HVAC installation is recommended.

Overview:

• Powerful 23000 BTU cooling and 24000 BTU heating for up to 1,500 sq. ft., perfect for living rooms, bedrooms, garages, or home offices
• High SEER2 22 rating with advanced inverter technology and R32 refrigerant for maximum energy savings
• Smart app and voice control via TUYA (2.4GHz WiFi), Alexa, and Google Assistant, plus LCD remote control
• Multiple modes: Cool, Heat, Dehumidify, Fan, ECO, and Auto, with 4 fan speeds and 0.5-24h timer
• Whisper-quiet operation at 30 dB in sleep mode, with self-cleaning function and automatic airflow swing
• Complete installation kit includes 9.8ft copper line set, 12.8ft interconnecting cables, and mounting hardware
• Note: Professional HVAC installation is recommended. Shipped in two boxes; installation order and delivery may vary. Batteries are required for remote control (2 AAA, not included).

Highlights:

• Powerful Comfort: Cools and heats up to 1,500 sq. ft. with 23000 BTU cooling and 24000 BTU heating
• High Efficiency: SEER2 22 rating, inverter technology, R32 refrigerant, AHRI and ETL/CETL verified
• Smart Control: TUYA app, Alexa, Google Assistant, and LCD remote control for easy adjustments
• Whisper-Quiet: Operates as quietly as 30 dB in sleep mode, with self-cleaning for fresh air
• Complete Kit: Includes 9.8ft copper line set, 12.8ft cables, and mounting hardware

Features:

• Cooling capacity: 23,000 BTU
• Heating capacity: 24,000 BTU
• Coverage area: up to 1,500 sq. ft.
• SEER2 rating: 22
• SEER rating: 22
• Inverter type: Has inverter (rotary scroll compressor)
• Refrigerant: R-32
• Voltage: 230V (208-230V/60Hz)
• Power consumption: 1800W cooling, 2100W heating
• Annual energy consumption: 259 kWh per year
• Capacity: 1.9 tons
• Noise level: 30 dB (sleep mode), 50 dB (indoor), 58 dB (outdoor)
• Airflow rate: 783 cfm (1330 m³/h)
• Dehumidification capacity: 57.6 L/day
• Temperature range: 60-90°F (16-32°C)
• Timer: 0.5-24 hours
• Modes: Cool, Heat, Dehumidify, Fan, ECO, Auto
• Fan speeds: 4 (Low, Medium, High, Auto)
• Control method: App/Remote/Voice (TUYA app, Alexa, Google Assistant, LCD remote)
• WiFi enabled: Yes (2.4GHz)
• Filter type: Mesh filter (washable)
• Self-cleaning function: Yes
• Automatic shutoff: Yes
• Automatic airflow swing: Yes
• Sleep mode: Yes
• Material: ABS (indoor unit), steel
• Color: White
• Form factor: Mini-split
• Installation type: Split system
• Power source: Corded electric
• Number of power levels: 4
• Wattage: 1800W
• Batteries required: Yes (2 AAA, not included)
• Warranty type: Limited
• Special features: Heating & cooling function, inverter compressor, remote controlled, sleep mode, WiFi enabled
• Note: Professional HVAC installation recommended. Shipped in two boxes; installation order and delivery may vary.

Weight & Dimensions:

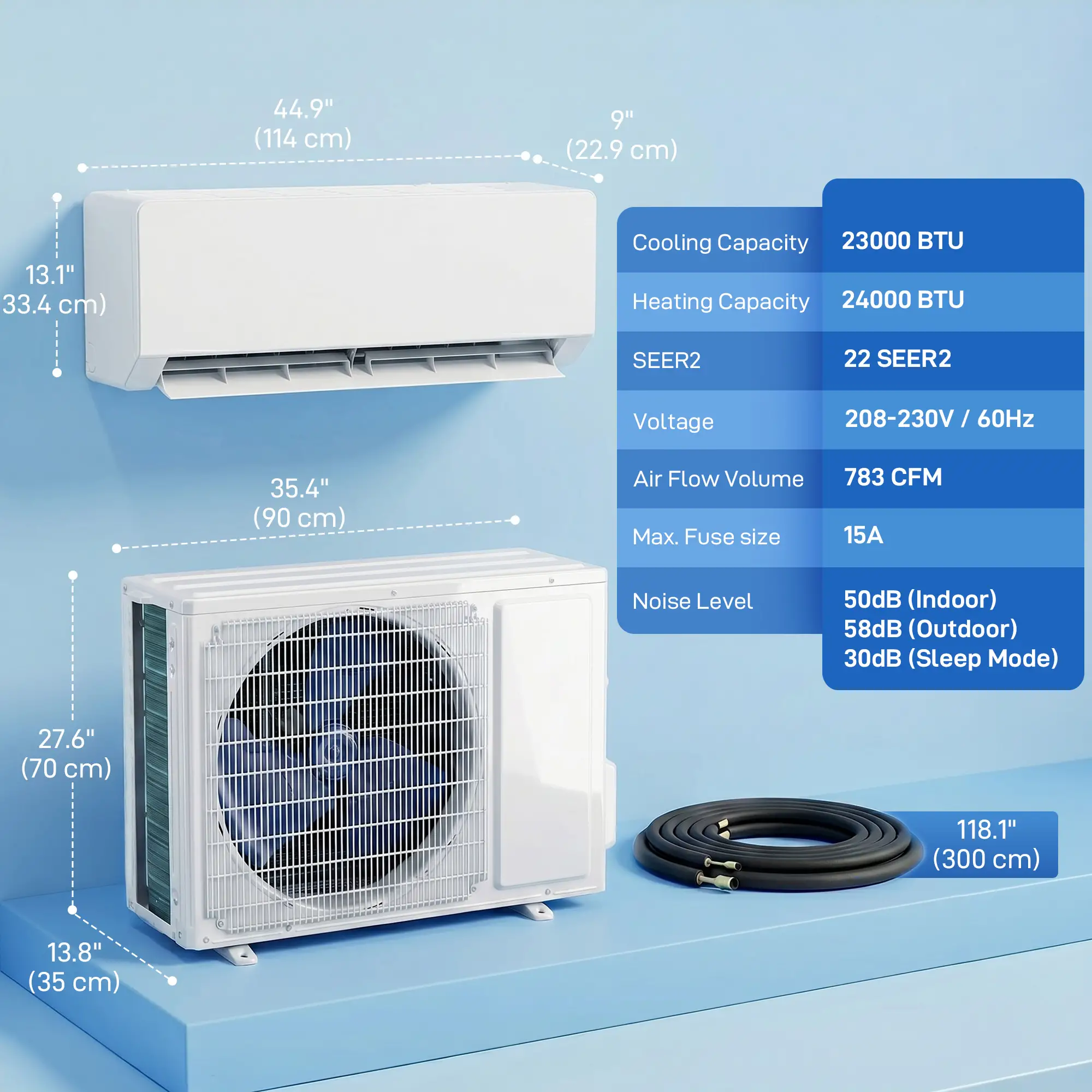

• Overall dimensions: 44.9" W x 9" D x 13.1" H (114 cm x 22.9 cm x 33.4 cm) - indoor unit
• Outdoor unit dimensions: 35.4" W x 13.8" D x 27.6" H (90 cm x 35 cm x 70 cm)
• Item weight: 135 lbs (61.2 kg) - total
• Battery weight: 90 g (0.2 lbs) - for remote control batteries
• Cable length: 12.8 ft (interconnecting cables)
• Copper line set length: 9.8 ft

Specifications:

• Cooling capacity: 23,000 BTU/h (6739W)
• Heating capacity: 24,000 BTU/h (7032W)
• SEER2: 22
• Voltage: 208-230V/60Hz
• Power (cooling): 1800W
• Power (heating): 2100W
• Annual energy consumption: 259 kWh/year
• Dehumidification capacity: 57.6 L/day
• Airflow rate: 783 cfm (1330 m³/h)
• Temperature range: 60-90°F (16-32°C)
• Timer: 0.5-24 hours
• Noise level: 30 dB (sleep mode), 50 dB (indoor), 58 dB (outdoor)
• Refrigerant: R-32
• Compressor type: Rotary scroll (inverter)
• Filter type: Washable mesh filter
• Control method: App, remote, voice (TUYA, Alexa, Google Assistant)
• WiFi: 2.4GHz
• Color: White
• Material: ABS (indoor), steel (outdoor)
• Form factor: Mini-split
• Installation type: Split system
• Power source: Corded electric
• Wattage: 1800W
• Batteries required: Yes (2 AAA, not included)
• Warranty: Limited
• Note: Professional installation recommended. Shipped in two boxes.

Package Includes:

• 1 x Indoor unit
• 1 x Outdoor unit
• 1 x 9.8 ft copper line set
• 1 x 12.8 ft interconnecting cables
• Mounting hardware included
• 1 x LCD remote control (batteries not included)
• 1 x User manual

Package Quantity: 2
