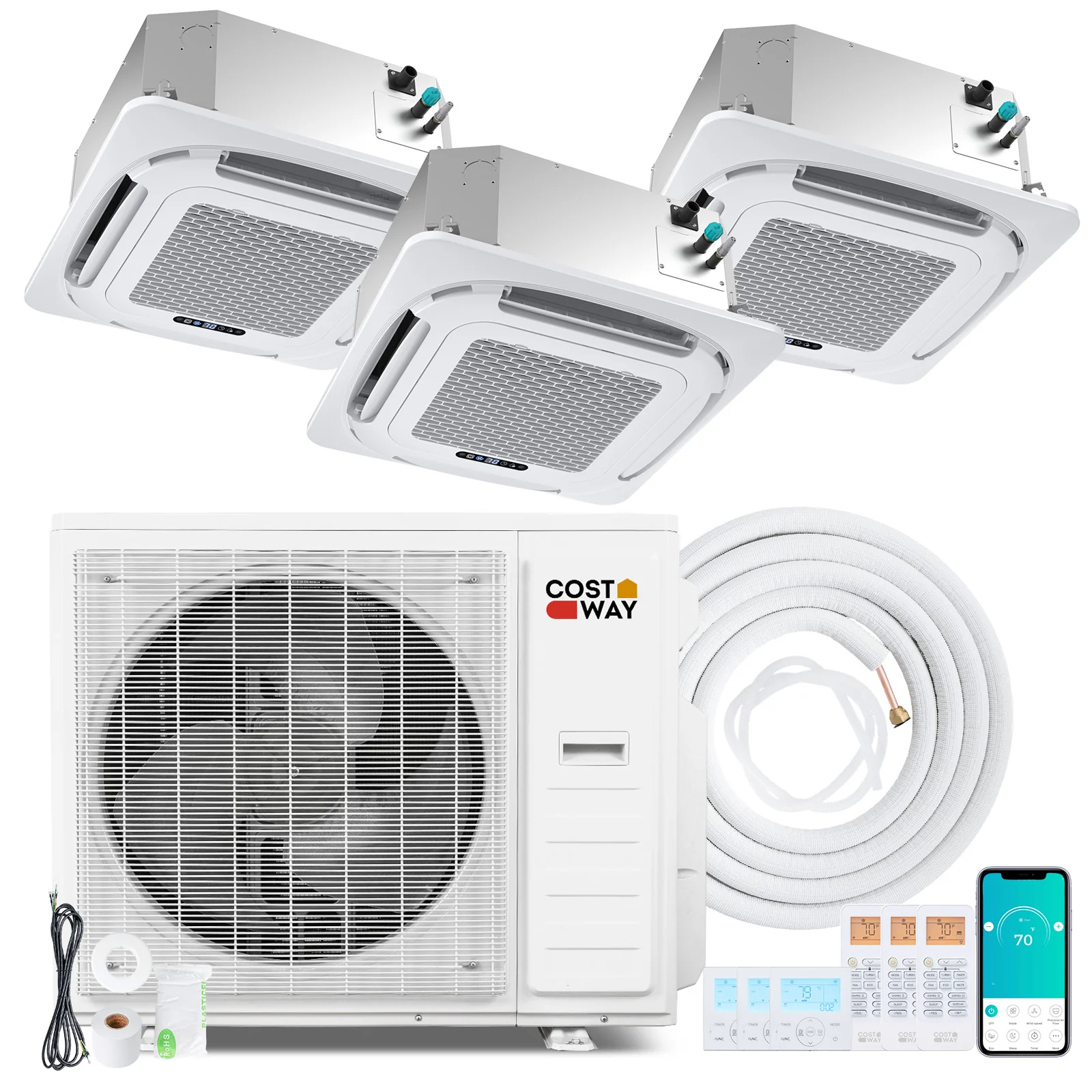

22.5 SEER2 Ceiling Cassette Mini Split AC, 35000 BTU, 3 Zone, White

Experience efficient and flexible climate control with this 3-zone 35,000 BTU ceiling cassette mini split AC and heating system. Featuring inverter technology, R454B refrigerant, and smart app control, it provides quiet, 360° airflow for homes and commercial spaces, ensuring year-round comfort with independent temperature settings for each zone.

Overview:

• Provides flexible comfort with independent temperature control in 3 zones using a ceiling cassette design for a clean, built-in look.
• Ideal for year-round use in homes, offices, and light commercial spaces like restaurants and retail stores.
• Features advanced inverter technology for energy efficiency and R454B refrigerant for a more environmentally friendly operation.
• Note: Professional installation is required for safe and proper setup.

Highlights:

• Independent temperature control in 3 areas for personalized comfort.
• Inverter technology provides outstanding energy efficiency, reducing energy costs.
• R454B refrigerant supports a more future-friendly, environmentally conscious approach.
• Stay comfortable year-round with 7 modes and 8 fan speeds for precise climate adjustment.
• Control your comfort via the app, voice, remote, or wall thermostat for ultimate convenience.
• Chassis electrical heating prevents freezing in colder weather, ensuring reliable operation.
• Versatile application for homes, offices, or commercial spaces, offering wide usability.
• Ceiling cassette creates a clean and built-in look, saving wall space.
• 360° airflow spreads air evenly across the room, reducing hot and cold spots.
• 24-hour timer for scheduled temperature changes, enhancing energy management.
• Self-clean function supports fresher operation and long-term performance.
• Whisper quiet operation as low as 32 dB for peaceful sleep and focused work.
• Child lock adds peace of mind for families, ensuring safe use.

Features:

• Powerful multi-zone cooling and heating with 35,000 BTU capacity, providing individual temperature adjustment across 3 zones.
• Ceiling-mounted design saves wall space and spreads air evenly for optimal room coverage.
• Engineered to keep working in harsh conditions, cooling even at 55℃ and heating even at -25℃.
• Built-in chassis electrical heating system prevents freezing in colder weather for reliable performance.
• Lower energy consumption with a 22.5 SEER2 rating, utilizing inverter technology to maintain stable temperatures.
• Uses R454B refrigerant with a lower global warming potential for an environmentally friendly approach.
• Smart control with Wi-Fi enabled for app control, plus voice control, remote, and wall thermostat support.
• Adjust comfort from anywhere with flexible operation options.
• Choose from 7 modes: auto, cool, heat, dry, fan, Eco, and sleep for versatile climate settings.
• Fine-tune airflow with 8 fan speeds: auto, mute, low, low-mid, mid, mid-high, high, and turbo.
• Set a 24-hour timer for scheduled temperature changes to enhance energy efficiency.
• Quiet operation as low as 32 dB for peaceful sleep and focused work environments.
• 8-way 360° airflow reaches more of the room, reducing hot and cold spots for even comfort.
• Self-clean function helps keep the interior fresher and supports long-term performance and maintenance.
• Wide use and exceptional versatility, ideal for homes, offices, meeting rooms, and light commercial spaces.
• Outdoor unit is compatible with various types of indoor units, including ductless wall mounted, ductless ceiling cassette, and concealed ducted units.
• Note: Professional installation is required for safe and proper setup.

Weight & Dimensions:

• Indoor Unit Dimensions (9K, 12K, 18K): 25.59 inches x 25.59 inches x 11.85 inches (65.00 cm x 65.00 cm x 30.10 cm).
• Outdoor Unit Dimensions (18K): 36.5 inches x 14.96 inches x 27.52 inches (92.71 cm x 38.00 cm x 69.90 cm).
• Outdoor Unit Dimensions (27K): 38.5 inches x 16.57 inches x 31.61 inches (97.79 cm x 42.09 cm x 80.29 cm).
• Outdoor Unit Dimensions (35K): 42.28 inches x 18.43 inches x 33.58 inches (107.39 cm x 46.81 cm x 85.29 cm).
• Net Weight of Indoor Unit (9K, 12K, 18K): 31.9 pounds (14.47 kg).
• Net Weight of Outdoor Unit (18K): 92.6 pounds (42.00 kg).
• Net Weight of Outdoor Unit (27K): 119 pounds (53.98 kg).
• Net Weight of Outdoor Unit (35K): 145.5 pounds (66.00 kg).
• Diameter of Liquid Pipe: 1/4 inch (0.64 cm).
• Diameter of Gas Pipe (9K, 12K): 3/8 inch (0.95 cm).
• Diameter of Gas Pipe (18K): 1/2 inch (1.27 cm).

Specifications:

• Color: White for a clean and modern appearance.
• Material: Cold-rolled Steel Sheet, Copper, Aluminum for durability and efficient heat transfer.
• Multi Zone Combination: 3 zones for independent temperature control.
• Voltage: 208-230V for compatibility with standard electrical systems.
• Frequency: 60Hz for optimal performance in applicable regions.
• Temperature Setting Range: 16℃ to 31℃ (approximately 61°F to 88°F) for precise climate adjustment.
• Refrigerant: R454B for lower global warming potential and environmental friendliness.
• Indoor Unit Noise Level: 32 dB for whisper quiet operation.
• Max Remote Control Distance: 39.2 feet (11.95 meters) for convenient adjustments.
• Coverage Area (9K): 450 square feet (41.81 square meters).
• Coverage Area (12K): 750 square feet (69.68 square meters).
• Coverage Area (18K): 1250 square feet (116.13 square meters).
• Dehumidification Capacity (9K): 55.8 pints per day.
• Dehumidification Capacity (12K): 81.2 pints per day.
• Dehumidification Capacity (18K): 111.6 pints per day.
• Maximum Air Flow Volume (9K): 194 CFM (329 m³/h).
• Maximum Air Flow Volume (12K): 212 CFM (360 m³/h).
• Maximum Air Flow Volume (18K): 260 CFM (441 m³/h).
• SEER2 Rating (18K): 24 for high energy efficiency.
• SEER2 Rating (27K): 24 for high energy efficiency.
• SEER2 Rating (35K): 22.5 for excellent energy efficiency.
• HSPF2 Rating (18K): 10.5 for efficient heating performance.
• HSPF2 Rating (27K): 10.5 for efficient heating performance.
• HSPF2 Rating (35K): 10 for reliable heating efficiency.

Package Includes:

• 1 x Outdoor Unit.
• 3 x Indoor Unit.
• 3 x Copper Connection Pipe - Gas Pipe.
• 3 x Copper Connection Pipe - Liquid Pipe.
• 3 x Communication Wire.
• 3 x Drain Hose.
• 3 x Remote Control & Holder.
• 3 x Wall Thermostat.
• 3 x Wall Sleeve.
• 6 x Wall Cap.
• 6 x Tape.
• 6 x Putty.
• 3 x Screw Kit.
• 4 x Mounting Foot Pad.
• 7 x User Guide.

Package Quantity: 1
