11500 BTU 208/230V Mini Split Air Conditioner, Heater Pump System, White

Experience ultimate temperature control with this 11500 BTU mini split AC, offering cooling, heating, drying, and fan functions for rooms up to 750 sq.ft. Enjoy smart Wi-Fi control via smartphone, voice, or remote, energy-efficient inverter technology, and quiet operation for year-round comfort.

Overview:

• Multifunctional mini split AC for cooling, heating, drying, and fan use in spaces up to 750 sq.ft.
• Ideal for homeowners seeking efficient temperature control with smart features and low noise.
• Unique aspects include inverter technology, R32 refrigerant for environmental friendliness, and self-cleaning.
• Note: Installation by a licensed HVAC professional is required.

Highlights:

• Multifunctional design includes cooling, heating, drying, and fan.
• Powerful cooling and heating for rooms up to 750 sq.ft.
• Effortless control via your smartphone, voice, or remote control.
• 7 fan speeds: auto, low, low-mid, mid, mid-high, high, turbo.
• Inverter technology ensures energy-efficient operation.
• Removable and washable filter for hassle-free maintenance.
• Humanized design such as child lock and self-cleaning.
• R32 refrigerant boasts a lower environmental impact.
• Chassis heating maintains long-lasting performance.
• Set schedules easily with the 24H on/off timer.
• 4D auto swing to prevent direct blowing.
• Quiet sleep mode ensures a restful night.
• Complies with ETL and AHRI standards.

Features:

• 11500 BTU cooling and heating capacity for large spaces up to 750 square feet.
• Advanced chassis heating prevents freezing and maintains outdoor unit operation.
• Can cool at 50℃ and heat at -15℃.
• Inverter technology improves energy efficiency by adjusting compressor speed.
• R32 refrigerant for an energy-saving and green cooling solution.
• Compliant with ETL and AHRI standards.
• Wi-Fi enabled for smart control via smartphone and voice with Alexa or Google Assistant compatibility.
• Includes a remote control with digital display for easy operation.
• Wide temperature range with 7 operating modes: auto, cool, heat, dry, fan, sleep, ECO.
• 7 fan speeds: auto, low, low-mid, mid, mid-high, high, turbo.
• 4D auto swing, child lock, I Feel, and Health features for added convenience.
• Sleep mode with ultra quiet operation and screen off function.
• 56℃ self-cleaning and washable filter for easy maintenance and cleaner air.
• Note: Installation by a licensed HVAC professional is required.

Weight & Dimensions:

• Indoor unit dimensions: 30.5" x 9.8" x 8.2" (77.5 cm x 24.9 cm x 20.8 cm).
• Outdoor unit dimensions: 30.9" x 11.4" x 19.7" (78.5 cm x 29.0 cm x 50.0 cm).
• Diameter of air pipe: 3" (7.6 cm).
• Diameter of liquid pipe: 1" (2.5 cm).
• Diameter of drain pipe: 0.67" (1.7 cm).
• Net weight of indoor unit: 20 lbs (9.1 kg).
• Net weight of outdoor unit: 53.5 lbs (24.3 kg).

Specifications:

• Color: White.
• Material: Metal, Aluminum, Copper, AS.
• Max remote control distance: 39 ft (11.9 m).
• Min. circuit ampacity: 11A.
• Voltage: 208/230V~/60Hz.
• Cooling capacity: 11500 BTU.
• Heating capacity: 11500 BTU.
• Cooling power: 1170W.
• Heating power: 1100W.
• Coverage area: 750 Sq.Ft/70㎡.
• Air flow volume: 294 CFM.
• Dehumidifying capacity: 66 pints/day (31.2 L/day).
• Temperature setting range: 16℃~31℃.
• Refrigerant: R32.
• SEER2: 17.
• HSPF2: 8.3.
• Indoor noise level: 33 dB.
• Outdoor noise level: 55 dB.
• Note: Box quantity may vary by batch.

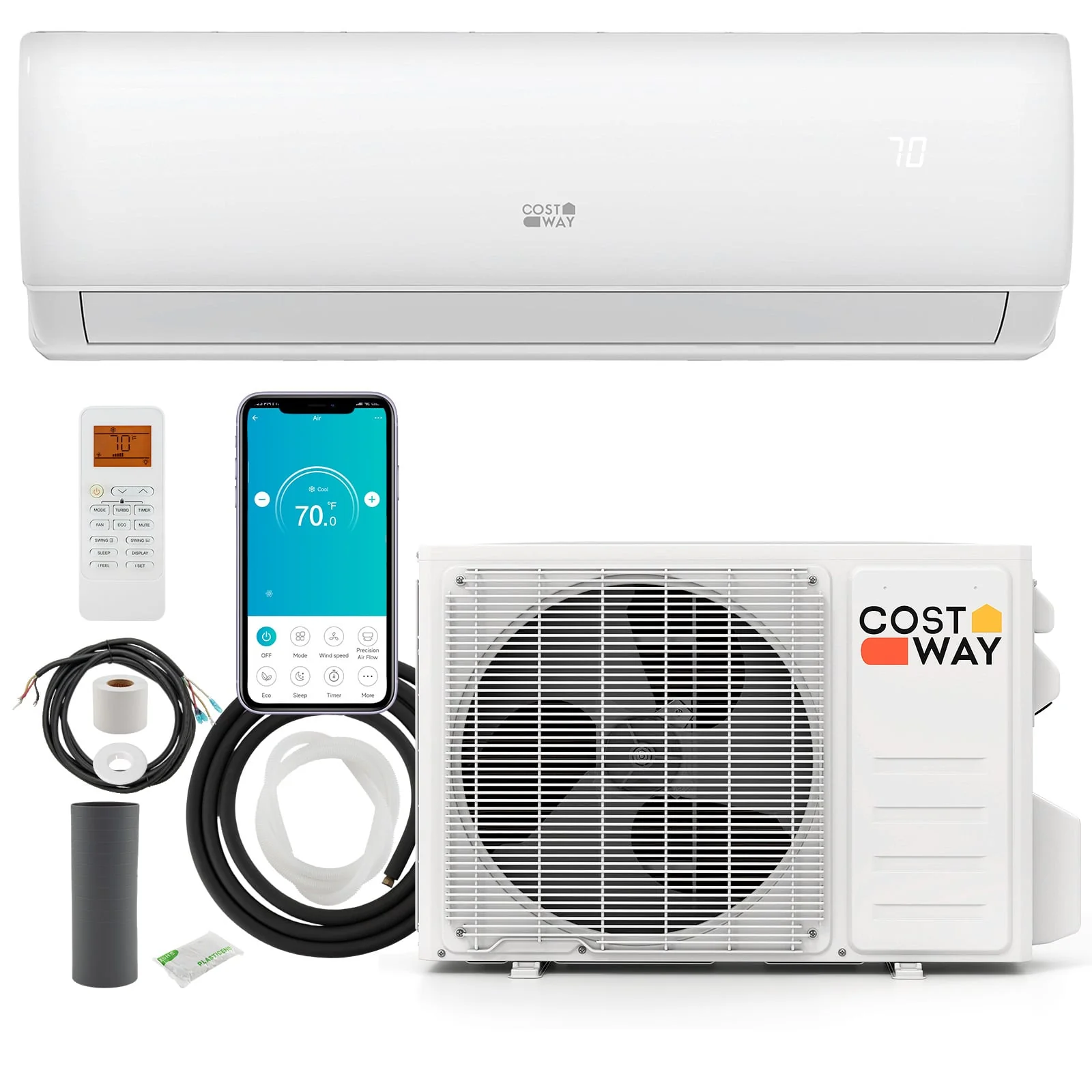

Package Includes:

• 1 x Indoor unit.
• 1 x Outdoor unit.
• 1 x 13 ft copper connection pipe - air pipe.
• 1 x 13 ft copper connection pipe - liquid pipe.
• 1 x 5.8 m/19 ft communication wire.
• 1 x 2 m/6.5 ft drain hose.
• 1 x Remote control.
• 1 x Wall bracket for remote control.
• 1 x Wall sleeve.
• 1 x Wall cap.
• 1 x Drain elbow.
• 1 x Tape.
• 1 x Putty.
• 1 x User guide.

Package quantity: 2.
